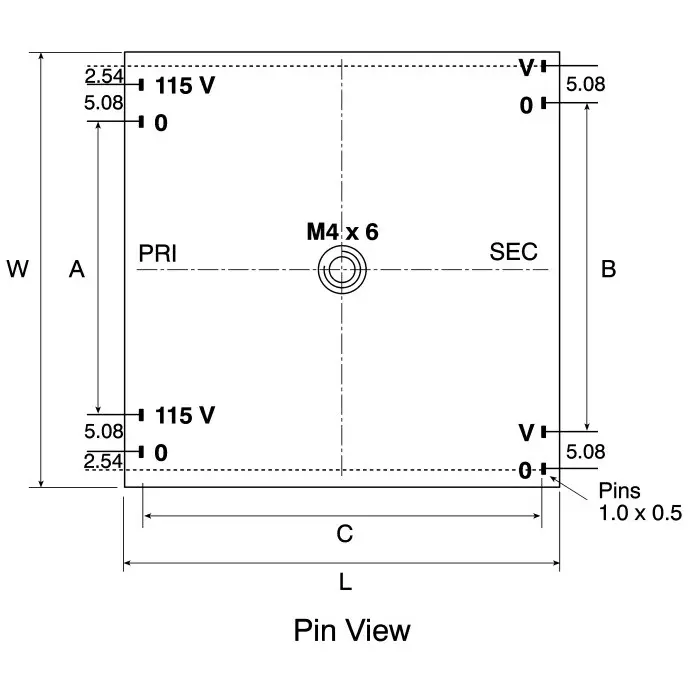

| Dimension | 49.7 x 49.7 x 23.1mm |

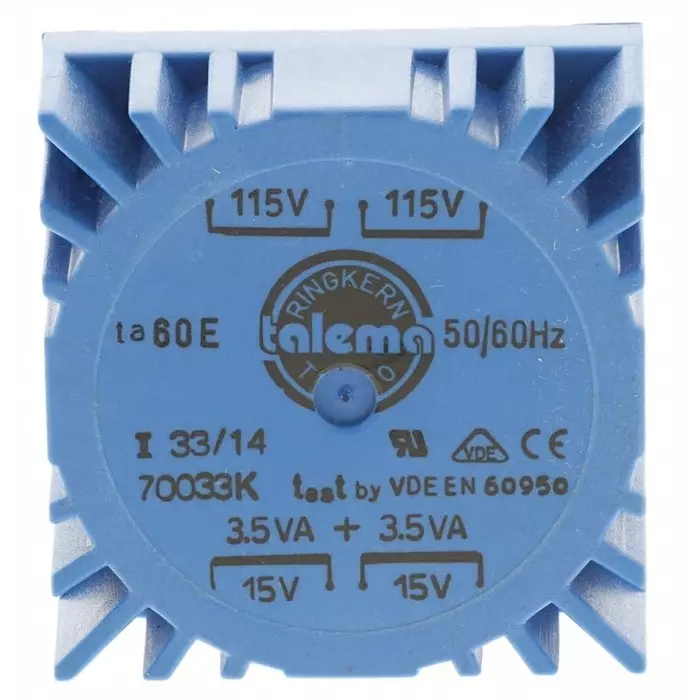

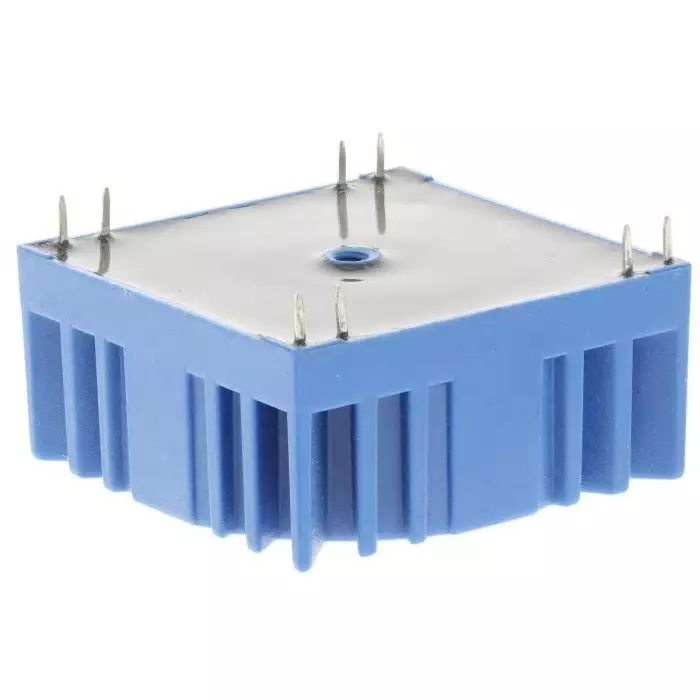

| Type of Product | Toroidal Transformer |
| Power Rating | 7VA |
| Weight | 174g |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Dimension |
49.7 x 49.7 x 23.1mm |
Type of Product |
Toroidal Transformer |
Power Rating |
7VA |
Weight |
174g |
Country of Origin |
India |
Mounting Type |
PCB |
Secondary Current |
233mA |
No. Of Output |
2 |
Secondary Voltage Rating |
2 x 15V ac |
Primary Voltage Rating |
115 V ac, 230 V ac |
Maximum Operating Frequency |
60Hz |
Maximum Temperature |
+60°C |
Termination Type |
Pin |
Name of Manufacturer/Packer/Importer |
Nuvotem Talema |
Minimum Operating Frequency |
50Hz |
Manufacturer Part Number |
70033K |
Fixing Hole Diameter |
M4 |
