Dimension | 115 (Dia.) x 58mm |

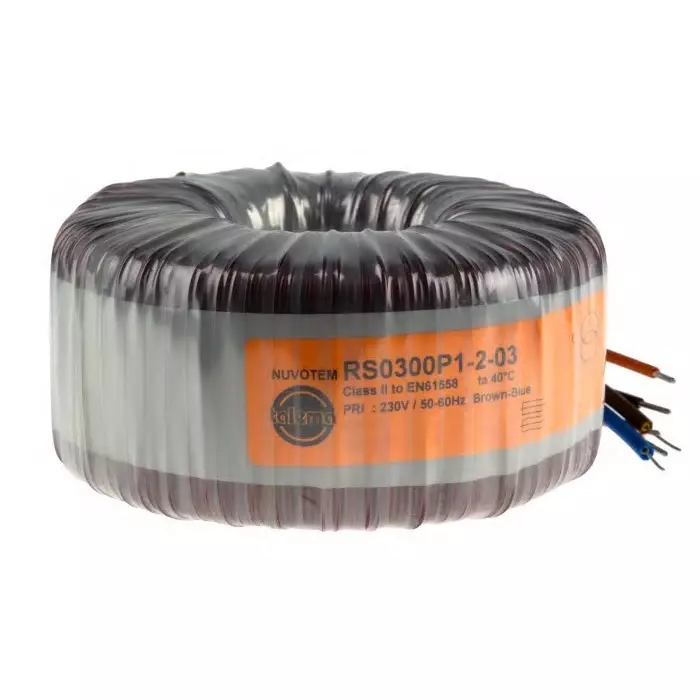

Type of Product | Toroidal Transformer |
Power Rating | 300VA |
Weight | 2.3 Kg |
Dimension |
115 (Dia.) x 58mm |
Type of Product |
Toroidal Transformer |
Power Rating |
300VA |
Weight |
2.3 Kg |
Country of Origin |
Czech Republic |
Secondary Current |
4.28A |
No. Of Output |
2 |
Secondary Voltage Rating |
2 x 35V ac |
Primary Voltage Rating |
230V ac |
Maximum Operating Frequency |
450Hz |
Maximum Temperature |
+120°C |
Diameter |
115 mm |

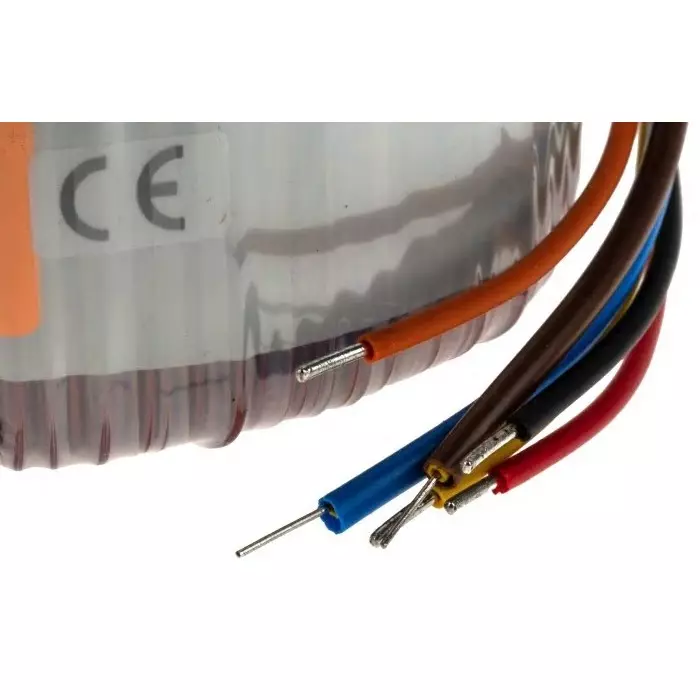

Termination Type |
Copper Conductor Termination Wire |
Height |
58mm |
Isolation Voltage |
4.5kV ac |
Minimum Temperature |
0°C |
Name of Manufacturer/Packer/Importer |
Nuvotem Talema |
Manufacturer Part Number |
0300P1-2-035 |
