| Dimension | 53.4x44.4x22.5 mm |

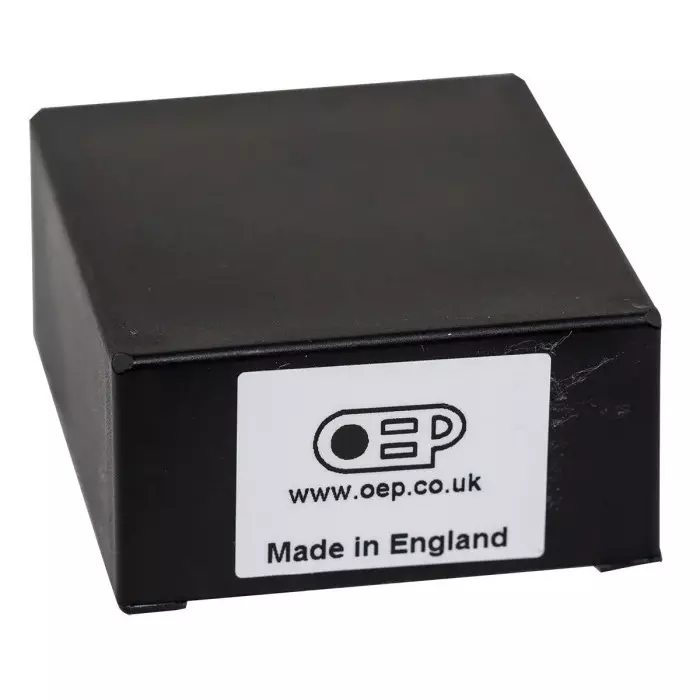

| Type of Product | Audio Transformer |
| Power Rating | 2 W |
| Weight | 185g |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Dimension |
53.4x44.4x22.5 mm |
Type of Product |
Audio Transformer |
Power Rating |
2 W |
Weight |
185g |
Country of Origin |
United Kingdom |
Mounting Type |
Through Hole |
Length |
53.4 mm |
Depth |
22.5 mm |
Width |
44.4 mm |
Maximum Operating Frequency |
20 kHz |
Maximum Temperature |
+70°C |
Termination Type |
PC Pin |
Isolation Voltage |
500V |
Minimum Temperature |
-20°C |
Name of Manufacturer/Packer/Importer |
OEP |
Minimum Operating Frequency |
20 Hz |
Manufacturer Part Number |
CUI30A04E |
Turns Ratio |
1+1:1+1 |
Secondary Impedance |
150 (Parallel) Ω, 600 (Series) Ω |
Primary Impedance |
150 (Parallel) Ω, 600 (Series) Ω |
Construction Type |
Encapsulated |
Primary Resistance |
9 + 9Ω |
Core Type |
Laminated |
Product Code |
1237239 |
Secondary DC Resistance |
11.4 + 11.4Ω |
