| Dimension | 27.94x22.9x22.2 mm |

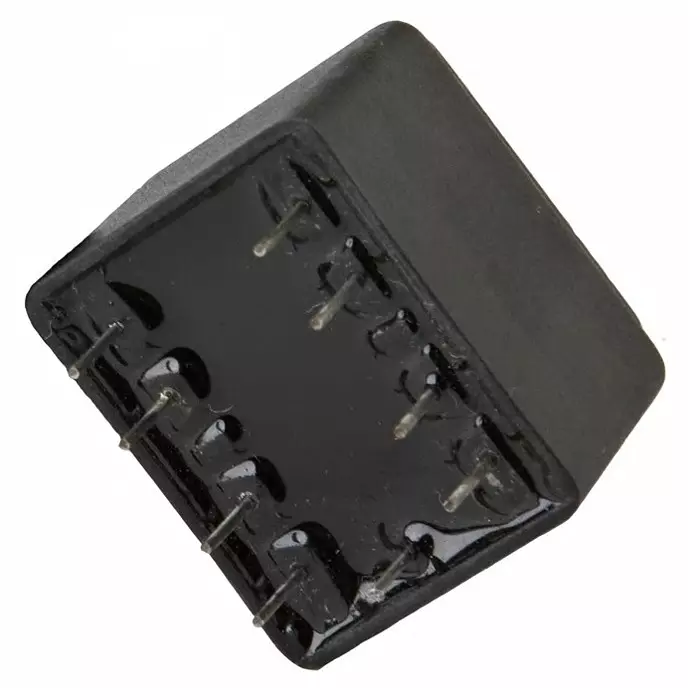

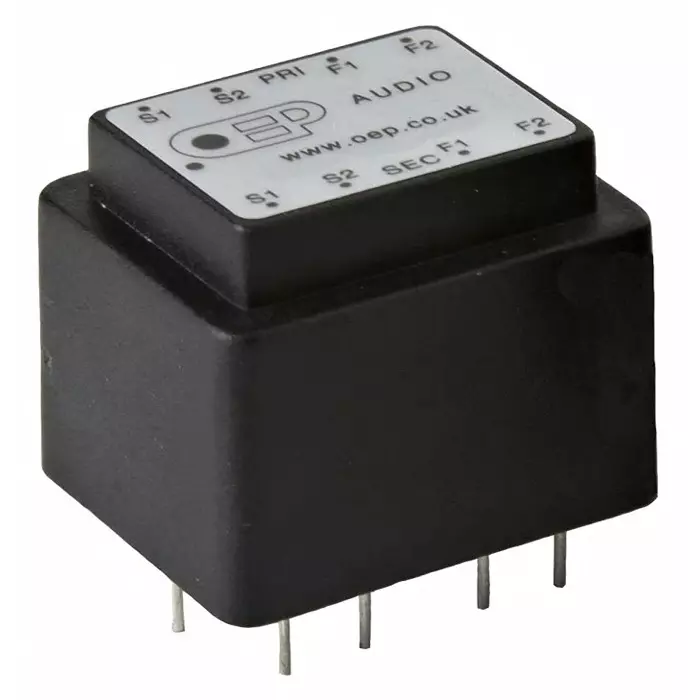

| Type of Product | Audio Transformer |
| Power Rating | 100 mW |
| Weight | 40g |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Dimension |
27.94x22.9x22.2 mm |
Type of Product |
Audio Transformer |
Power Rating |
100 mW |
Weight |
40g |
Country of Origin |
United Kingdom |
Mounting Type |
Through Hole |
Length |
27.94 mm |
Depth |
22.2 mm |
Width |
22.9 mm |
Maximum Operating Frequency |
35 kHz |
Maximum Temperature |
+70°C |
Termination Type |
PC Pin |
Isolation Voltage |
1000V |
Minimum Temperature |
-25°C |
Name of Manufacturer/Packer/Importer |
OEP |
Minimum Operating Frequency |
30 Hz |
Manufacturer Part Number |
A262A41E |
Turns Ratio |
1+1:1+1 |
Secondary Impedance |
1 kΩ, 4 kΩ |
Primary Impedance |
1 kΩ, 4 kΩ |
Construction Type |
Enclosed |
Primary Resistance |
132Ω |
Core Type |
Laminated |
Product Code |
1237208 |
Secondary DC Resistance |
190Ω |
