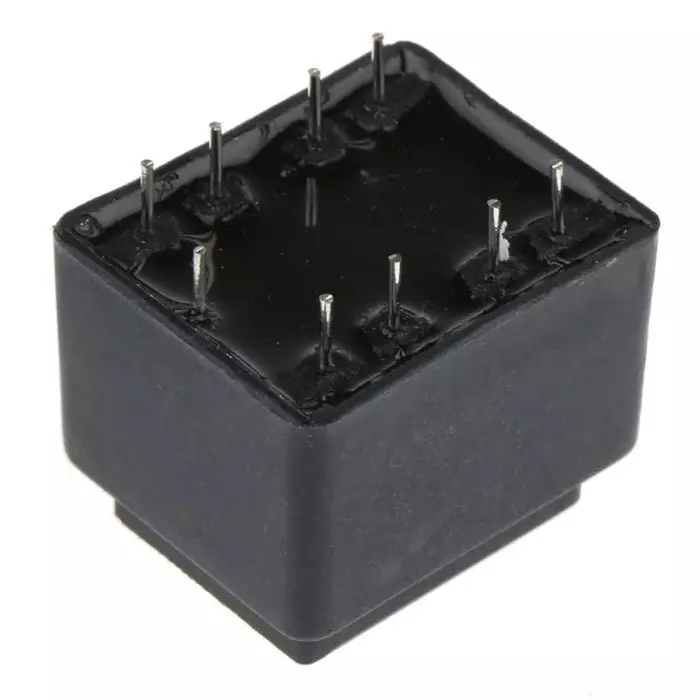

OEP (OXFORD ELECTRICAL PRODUCTS) Through Hole Audio Transformer 600 Ω 100 mW Hz @ 300 1 mW Hz @ 30 2.5 mW Hz @ 50, A262A7E
OEP (OXFORD ELECTRICAL PRODUCTS) Through Hole Audio Transformer 600 Ω 100 mW Hz @ 300 1 mW Hz @ 30 2.5 mW Hz @ 50, A262A7E
OEP (OXFORD ELECTRICAL PRODUCTS) Through Hole Audio Transformer 600 Ω 100 mW Hz @ 300 1 mW Hz @ 30 2.5 mW Hz @ 50, A262A7E
OEP (OXFORD ELECTRICAL PRODUCTS) Through Hole Audio Transformer 600 Ω 100 mW Hz @ 300 1 mW Hz @ 30 2.5 mW Hz @ 50, A262A7E
OEP (OXFORD ELECTRICAL PRODUCTS) Through Hole Audio Transformer 600 Ω 100 mW Hz @ 300 1 mW Hz @ 30 2.5 mW Hz @ 50, A262A7E
OEP (OXFORD ELECTRICAL PRODUCTS) Through Hole Audio Transformer 600 Ω 100 mW Hz @ 300 1 mW Hz @ 30 2.5 mW Hz @ 50, A262A7E
OEP (OXFORD ELECTRICAL PRODUCTS) Through Hole Audio Transformer 600 Ω 100 mW Hz @ 300 1 mW Hz @ 30 2.5 mW Hz @ 50, A262A7E
OEP (OXFORD ELECTRICAL PRODUCTS) Through Hole Audio Transformer 600 Ω 100 mW Hz @ 300 1 mW Hz @ 30 2.5 mW Hz @ 50, A262A7E

OEP (OXFORD ELECTRICAL PRODUCTS) Through Hole Audio Transformer 600 Ω 100 mW Hz @ 300 1 mW Hz @ 30 2.5 mW Hz @ 50, A262A7E

Visit the OEP (OXFORD ELECTRICAL PRODUCTS) Store
power brand
Available offers
Flat ₹200 off on Order above ₹7,000 | Valid for NEW Business Users

View

Flat ₹100 off on Order above ₹5000 | Valid for NEW Business Users

View

Flat ₹500 off on Order above ₹15000 | Valid for NEW Business Users

View

Flat ₹400 off on Order above ₹10,000 | Valid for REPEAT Business User

View

Features
Dimension 28x22x23.2 mm
Type of Product Audio Transformer
Power Rating 100 mW Hz @ 300, 1 mW Hz @ 30, 2.5 mW Hz @ 50
Country of Origin China
More OEP (OXFORD ELECTRICAL PRODUCTS) Electrical Transformer products More Electrical Transformer products
warranty Warranty as per brand
original products 100% Original Products
secure payments Secure payments
buyer protection 100% Buyer protection
top brands Top Brands

Dimension

28x22x23.2 mm

Type of Product

Audio Transformer

Power Rating

100 mW Hz @ 300, 1 mW Hz @ 30, 2.5 mW Hz @ 50

Country of Origin

China

Mounting Type

Through Hole

Length

28 mm

Depth

23.2 mm

Width

22 mm

Maximum Operating Frequency

35 kHz

Maximum Temperature

+70°C

Termination Type

Pin

Minimum Temperature

0°C

Name of Manufacturer/Packer/Importer

OEP

Minimum Operating Frequency

30 Hz

Manufacturer Part Number

A262A7E

Turns Ratio

1+1:1+1

Secondary Impedance

600Ω

Primary Impedance

600Ω

Primary Resistance

42Ω

Product Code

2106447

Secondary DC Resistance

58Ω
