| Model No | 124-3846 |
| Type of Product | Toroidal Transformer |
| Country of Origin | Japan |

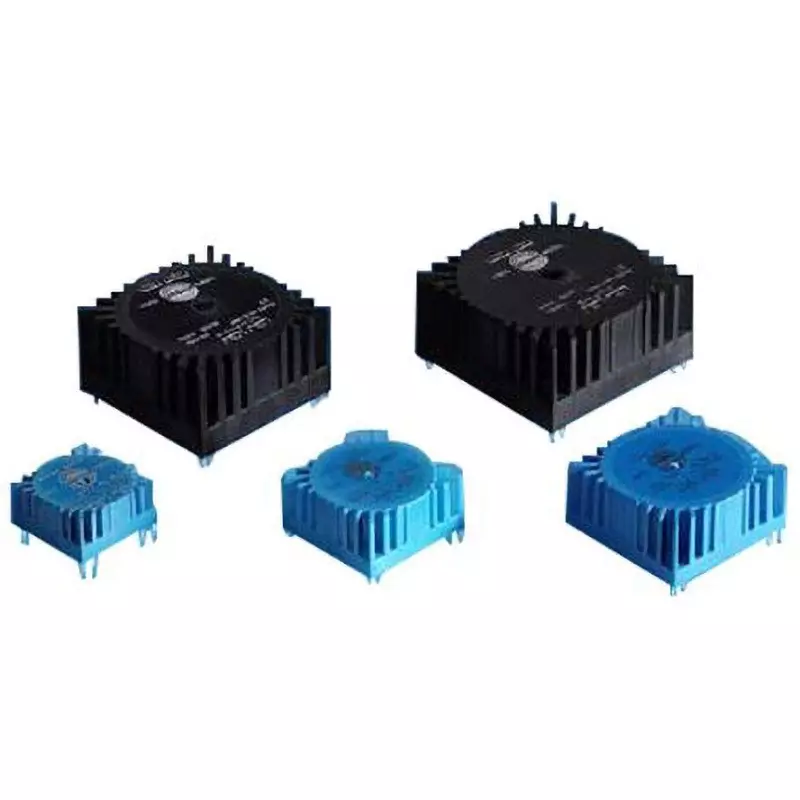

| Specifications | RS Pro Toroidal PC Transformer 1.6 VA to 25 VA. RS Pro Toroidal PC Transformers are compact, lightweight transformers with high efficiency and a low profile. These toroidal transformers feature low core losses and low inductive noise. Dual 115 V primary windings that can be connected in parallel or series. Features: Low stray magnetic field Reduced standby current Test voltage primary - secondary 4.0 kV Easy to mount - M4 centre bushing Ambient operating temperature up to +60°C Fully RoHS and R compliant |
Model No |
124-3846 |
Type of Product |
Toroidal Transformer |
Country of Origin |
Japan |
Specifications |
RS Pro Toroidal PC Transformer 1.6 VA to 25 VA. RS Pro Toroidal PC Transformers are compact, lightweight transformers with high efficiency and a low profile. These toroidal transformers feature low core losses and low inductive noise. Dual 115 V primary windings that can be connected in parallel or series. Features: Low stray magnetic field Reduced standby current Test voltage primary - secondary 4.0 kV Easy to mount - M4 centre bushing Ambient operating temperature up to +60°C Fully RoHS and R compliant |
Monotaro ID |
48530783 |
Dimension (mm) |
44.7x44.7x19.5 |
Name of Manufacturer/Packer/Importer |
RS Components Co., Ltd. |
Mass (g) |
110 |
Maximum Frequency |
50 |
Import Country |
Direct Import from Japan |
RoHS Directive |
Correspondence |
Primary Voltage (V) |
2x115 |
Rated Secondary Voltage (V) |
2x12 |
Rated Power (VA) |
3.2 |
Highest Temperature |
60 |
Type of Sign |
Through Hole Mounting |
Insulation Voltage |
4000 V |
