| Primary Current (Amp) | 400 A |
| Type of Product | Low Voltage Current Transformer |
| Accuracy Class | 1 |
| Rated Burden (Va) | 6.25 VA |
Primary Current (Amp) |
400 A |
Type of Product |
Low Voltage Current Transformer |
Accuracy Class |
1 |
Rated Burden (Va) |
6.25 VA |
Country of Origin |
India |
Length |
50 mm |
Depth |
30 mm |
Width |
30 mm |
Operating Frequency |
50 Hz / 60 Hz |
Standard |
IEC 61869-1&2 / IS 16227 part 1 and 2 |
Item Code |
A4-040056HA110S2 |
Name of Manufacturer/Packer/Importer |
Secure Meters Ltd. |
System Voltage |
720 V Maximum |
Insulation Class |
E |

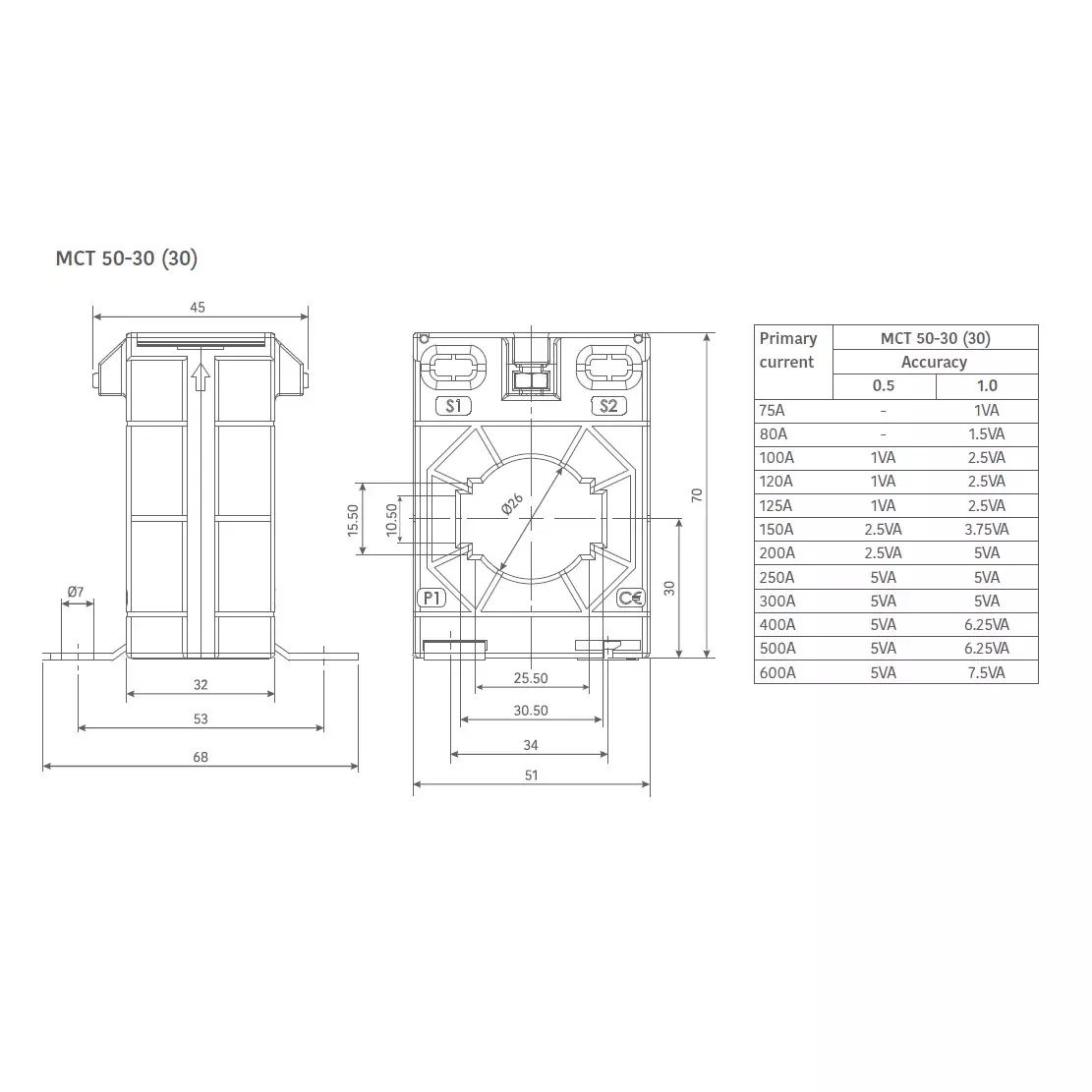

Model Series |
MCT50-30(30) |
