| Type | Single-phase double-turn |
| Capacity (VA) | 1500 |
| Model No | PC42-1500 |
| Type of Product | Compound Winding Power Transformer |
Type |
Single-phase double-turn |
Capacity (VA) |
1500 |
Model No |
PC42-1500 |
Type of Product |
Compound Winding Power Transformer |

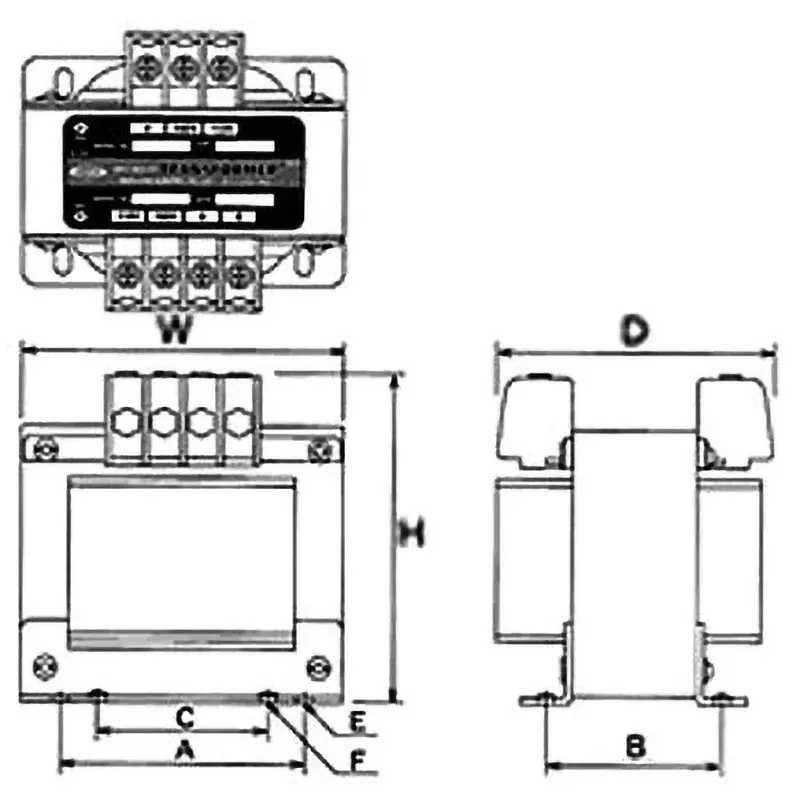

Outer Dimensions |
180x170x190 mm |
Country of Origin |
Japan |
Series |
PC Series |
Terminal Screw |
M5 |
Monotaro ID |
8522683 |
Mass (Kg) |
About 19 |
Name of Manufacturer/Packer/Importer |
Swallow Electric Co., Ltd. |
Secondary Voltages |
220 V-200 V-0 |
Import Country |
Direct Import from Japan |
Terminal Shape |
Up screw type terminal block |
Primary Voltage (V) |
440 V-400 V-380 V-0 |
Mounting Dimension A (mm) |
120 |
Insulation Type |
E |
Mounting Dimension B (mm) |
114 |
Mounting Hole Dimension |
10x20 mm |
Outer Dimension H (mm) |
190 |
Outer Dimension d (mm) |
170 |
Outer Dimension W (mm) |
180 |
Capacity (Kva) |
1.5 |
