Ships within 25 days
View
View
View
View
| Type | Single-phase double-turn |
| Capacity (VA) | 300 |

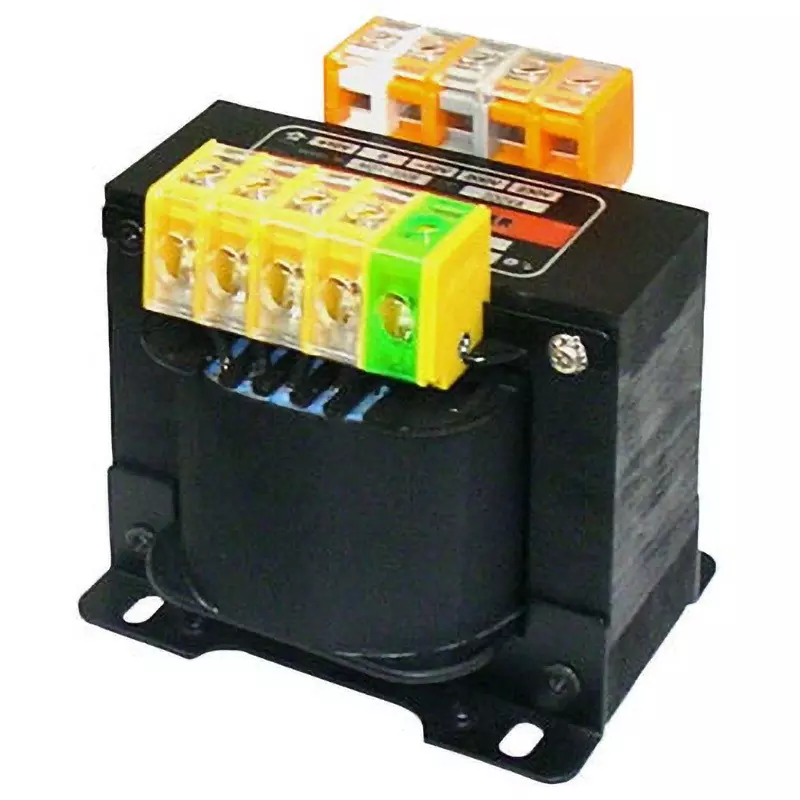

| Model No | M42-300E |
| Type of Product | Multi-Transformer |
Type |
Single-phase double-turn |
Capacity (VA) |
300 |
Model No |
M42-300E |
Type of Product |
Multi-Transformer |
Outer Dimensions |
128x110x128 mm |
Country of Origin |
Japan |
Specifications |
Electrostatic shield, ground terminal included |
Mounting Hole |
F 5 mm |
Terminal Screw |
M4 |
Monotaro ID |
8521861 |
Mass (Kg) |
About 5.8 |
Name of Manufacturer/Packer/Importer |
Swallow Electric Co., Ltd. |
Secondary Voltages |
240V, 220V, 200V, 0, E |
Import Country |
Direct Import from Japan |
Terminal Shape |
Up screw type terminal block |
Primary Voltage (V) |
(480 V), 460 V, (440 V), (420 V), 400 V, (380 V), 0 |

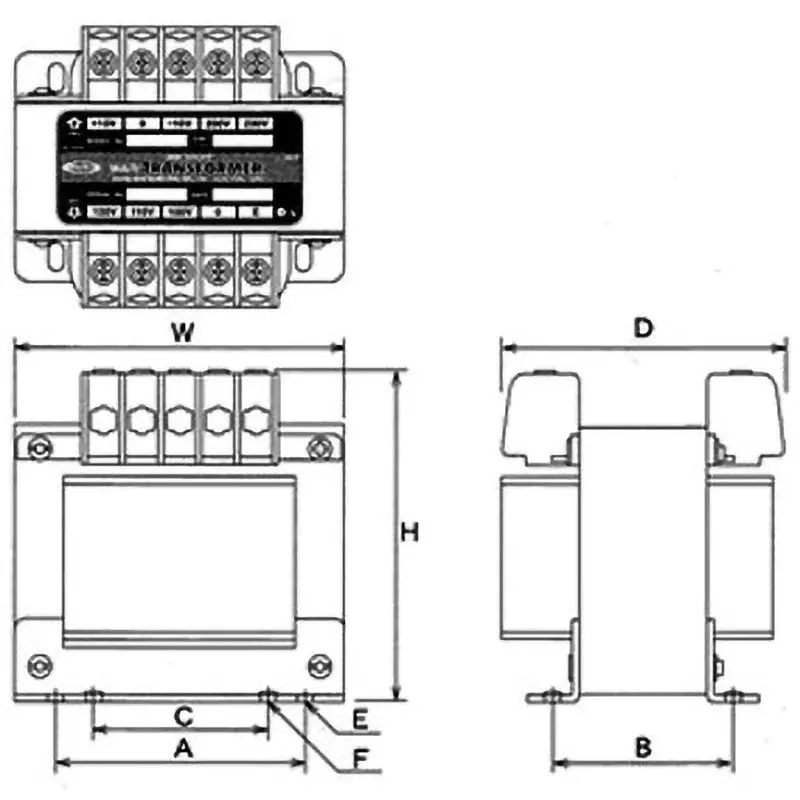

Mounting Dimension A (mm) |
97 |
Insulation Type |
A |
Mounting Dimension B (mm) |
70 |
Mounting Dimension Cf1 (mm) |
68 |
Mounting Hole Dimension |
6.5x12 mm |
Outer Dimension H (mm) |
128 |
Outer Dimension d (mm) |
110 |
Outer Dimension W (mm) |
128 |
Circuit System |
Single-phase/compound winding |
