| Type | Single-phase double-turn |
| Capacity (VA) | 200 |
| Model No | PC41-200E |

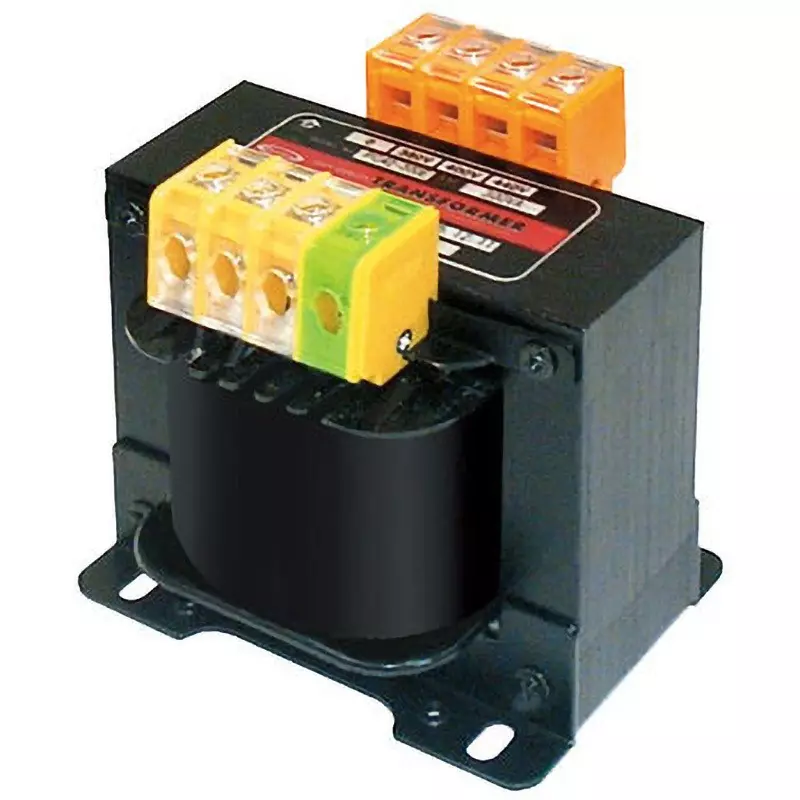

| Type of Product | Double Winding Power Transformer |
Type |
Single-phase double-turn |
Capacity (VA) |
200 |
Model No |
PC41-200E |
Type of Product |
Double Winding Power Transformer |
Outer Dimensions |
108x117x118 mm |
Country of Origin |
Japan |
Series |
PC-E Series |
Specifications |
With electrostatic shield |
Mounting Hole |
F 4 mm |
Terminal Screw |
M4 |
Monotaro ID |
8522726 |
Mass (Kg) |
About 4.4 |
Name of Manufacturer/Packer/Importer |
Swallow Electric Co., Ltd. |
Secondary Voltages |
110 V-100 V-0-E |
Import Country |
Direct Import from Japan |
Trusco Part No. |
451-4106 |
Terminal Shape |
Up screw type terminal block |
Primary Voltage (V) |
440 V-400 V-380 V-0 |

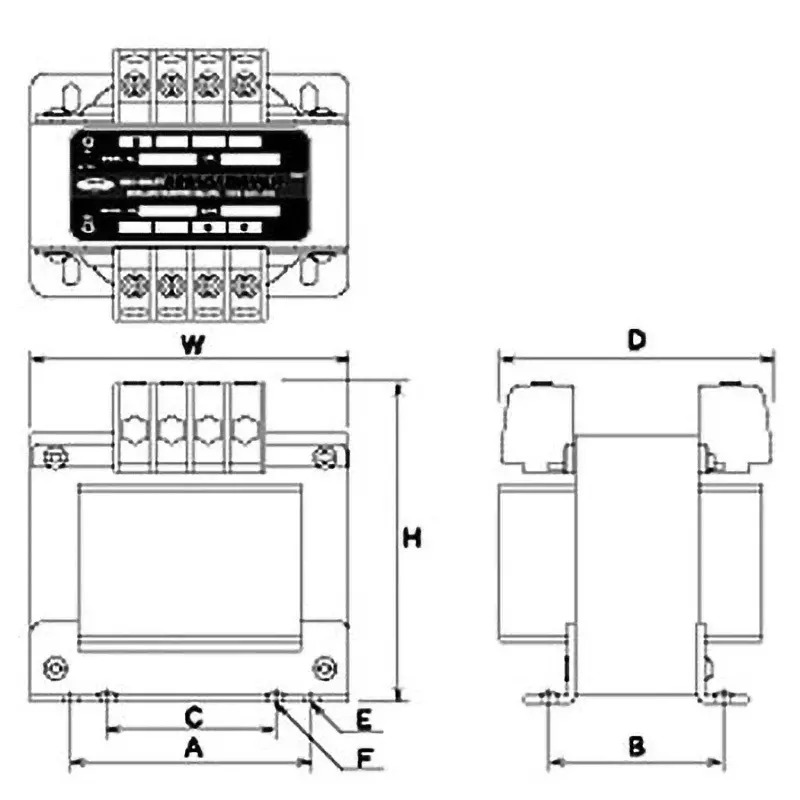

Mounting Dimension A (mm) |
75 |
Insulation Type |
A |
Mounting Dimension B (mm) |
73 |
Mounting Dimension Cf1 (mm) |
48 |
Mounting Hole Dimension |
6x10 mm |
Outer Dimension H (mm) |
118 |
Outer Dimension d (mm) |
117 |
Outer Dimension W (mm) |
108 |
Circuit System |
Single-phase/compound winding |
