| Capacity (VA) | 1.5 K |
| Secondary Current (Amp) | 15 |
| Voltage | Primary voltage 200/208/220/230/240 V |
| Model No | UEE0150-016015-07M(No.45002)1.5kVA |
Capacity (VA) |
1.5 K |
Secondary Current (Amp) |
15 |
Voltage |
Primary voltage 200/208/220/230/240 V |
Model No |
UEE0150-016015-07M(No.45002)1.5kVA |
Type of Product |
Power Transformer |
Country of Origin |
Japan |

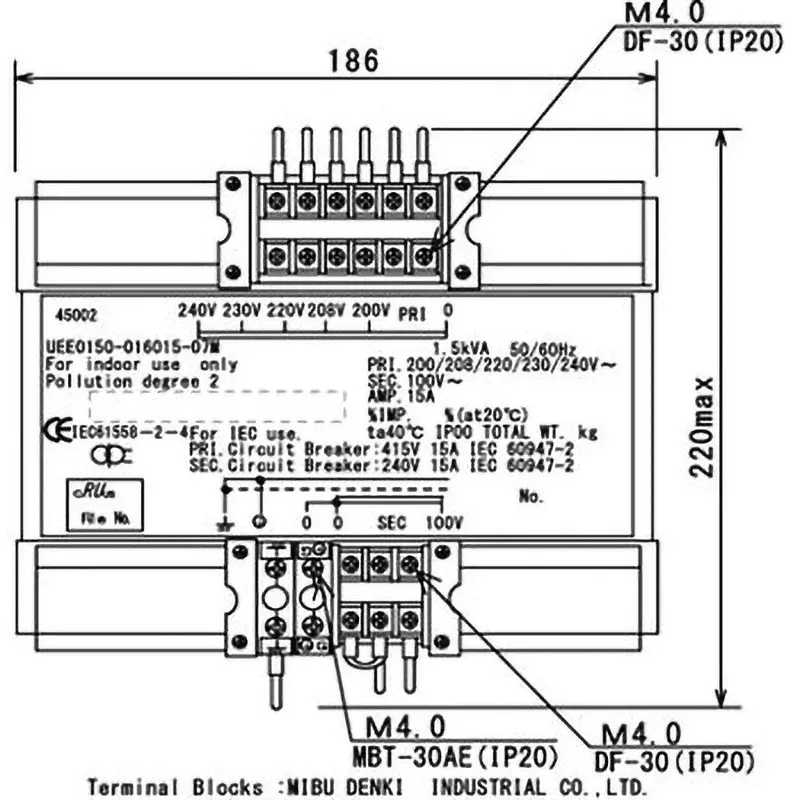

Terminal Screw |
(1st / 2nd) M4, (Ground) M4 |
Monotaro ID |
73429116 |
Mass (Kg) |
19 |
Name of Manufacturer/Packer/Importer |
Toyosumi Power Equipment Co., Ltd. |
Import Country |
Direct Import from Japan |
RoHS Directive |
Correspondence |

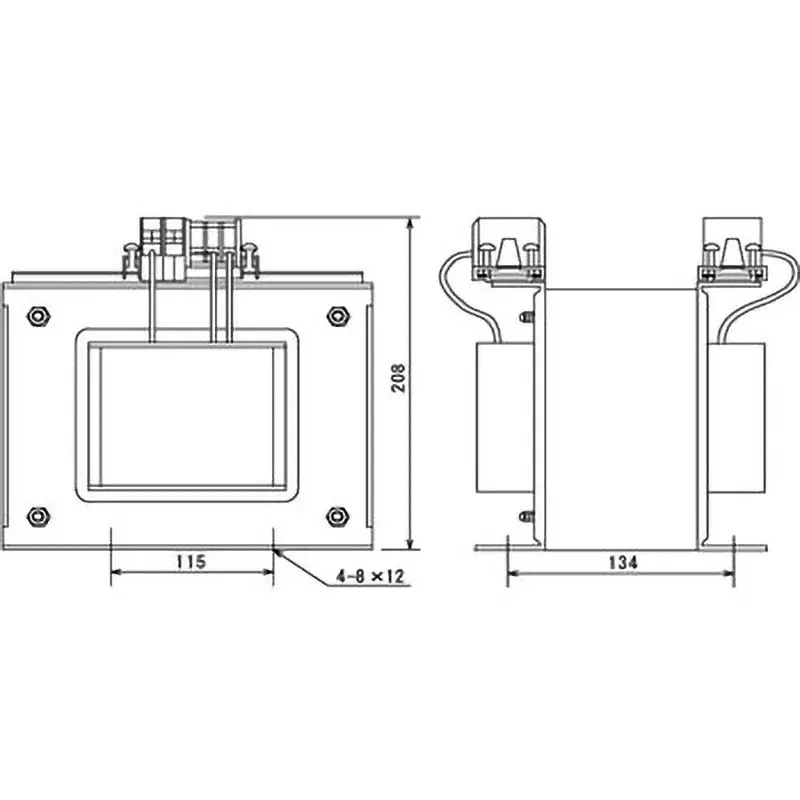

Mounting Dimension A (mm) |
78 |
Insulation Type |
Class F |
Mounting Dimension B (mm) |
61 |
Outer Dimension H (mm) |
101 |
Outer Dimension b (mm) |
80 |
Outer Dimension a (mm) |
88 |
Recommended Screw |
(Mounting) M6 |
Model Name |
UEE0150-016015-07M |
