| Type | 3 |
| Capacity (VA) | 3000 |
| Secondary Current (Amp) | 30 |
| Model No | TZ11-03KB |
Type |
3 |
Capacity (VA) |
3000 |
Secondary Current (Amp) |
30 |
Model No |
TZ11-03KB |
Type of Product |
Power Transformer |
Applicable Standard |
JIS C-5310/6436 |
Country of Origin |
Japan |
Shape |
TP |

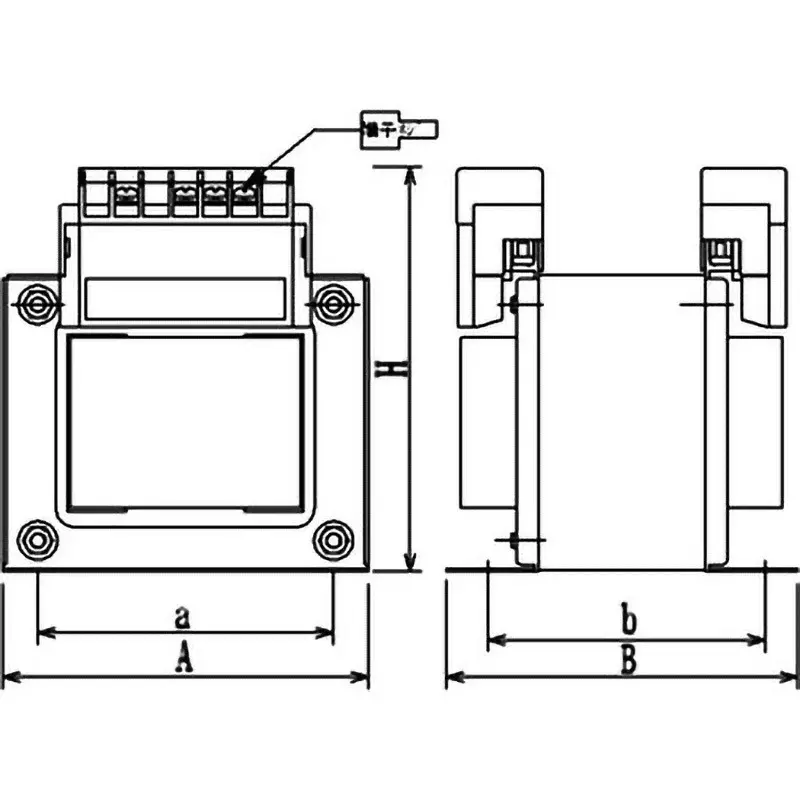

Dimension B (Φmm) |
(Mounting) 130 |
Specifications |
Duplex, with electrostatic shield |
Terminal Screw |
M5 |
Monotaro ID |
73428066 |
No. of Phases |
Single-phase |
Mass (Kg) |
30.5 |
Temperature Rise |
80°C or less |
Name of Manufacturer/Packer/Importer |
Toyosumi Power Equipment Co., Ltd. |
Operation Ambient Temperature (°C) |
-10 to 40 |
Import Country |
Direct Import from Japan |
Insulation Type |
B |
Outer Dimension H (mm) |
226 |
Capacity (Kva) |
3 |
Frequency (Hz) |
50/60 |
Insulation Resistance (MOhm) |
over 100 |
Mounting Screw |
M6 |
Outer Dimension a (mm) |
206 |
Terminal Spacing |
13.5 mm |
