Ships within 25 days
View
View
View
View
| Type | 3 |
| Capacity (VA) | 1000 |
| Secondary Current (Amp) | 10 |
| Model No | TZ11-01KB2 |
Type |
3 |
Capacity (VA) |
1000 |
Secondary Current (Amp) |
10 |
Model No |
TZ11-01KB2 |
Type of Product |
Power Transformer |
Applicable Standard |
JIS C-6436 |
Country of Origin |
Japan |
Shape |
TP |

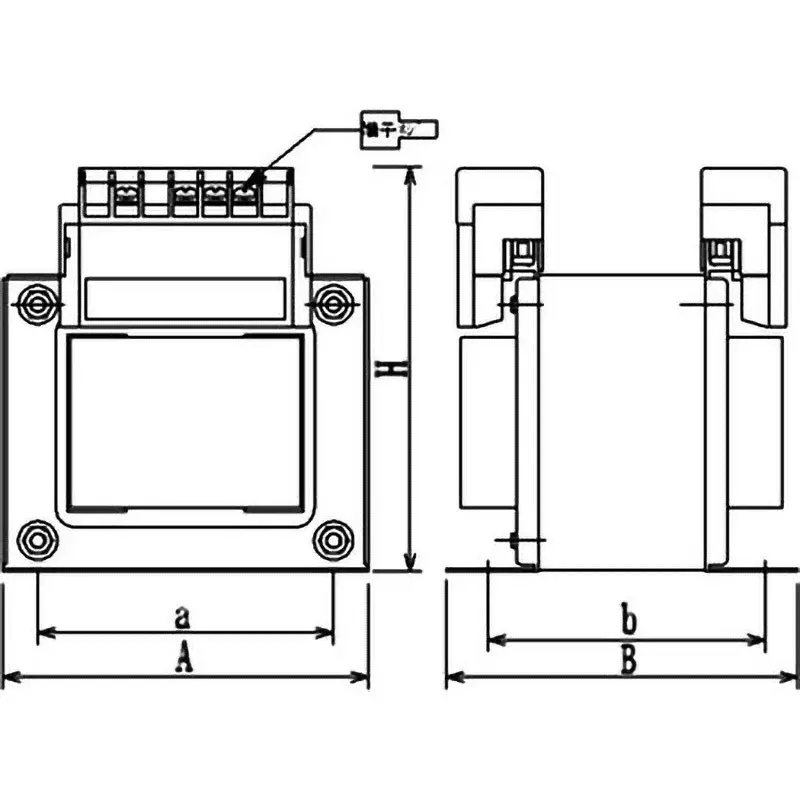

Dimension B (Φmm) |
(Mounting) 92 |
Specifications |
Duplex, with electrostatic shield |
Terminal Screw |
M4 |
Monotaro ID |
73428032 |
No. of Phases |
Single-phase |
Mass (Kg) |
10.4 |
Temperature Rise |
80°C or less |
Name of Manufacturer/Packer/Importer |
Toyosumi Power Equipment Co., Ltd. |
Operation Ambient Temperature (°C) |
-10 to 40 |
Import Country |
Direct Import from Japan |
Insulation Type |
B |
Outer Dimension H (mm) |
150 |
Capacity (Kva) |
1 |
Frequency (Hz) |
50/60 |
Insulation Resistance (MOhm) |
over 100 |
Mounting Screw |
M6 |
Outer Dimension a (mm) |
157 |
Terminal Spacing |
8.7 mm |
