| Capacity (VA) | 7500 |
| Secondary Current (Amp) | 37.5 |

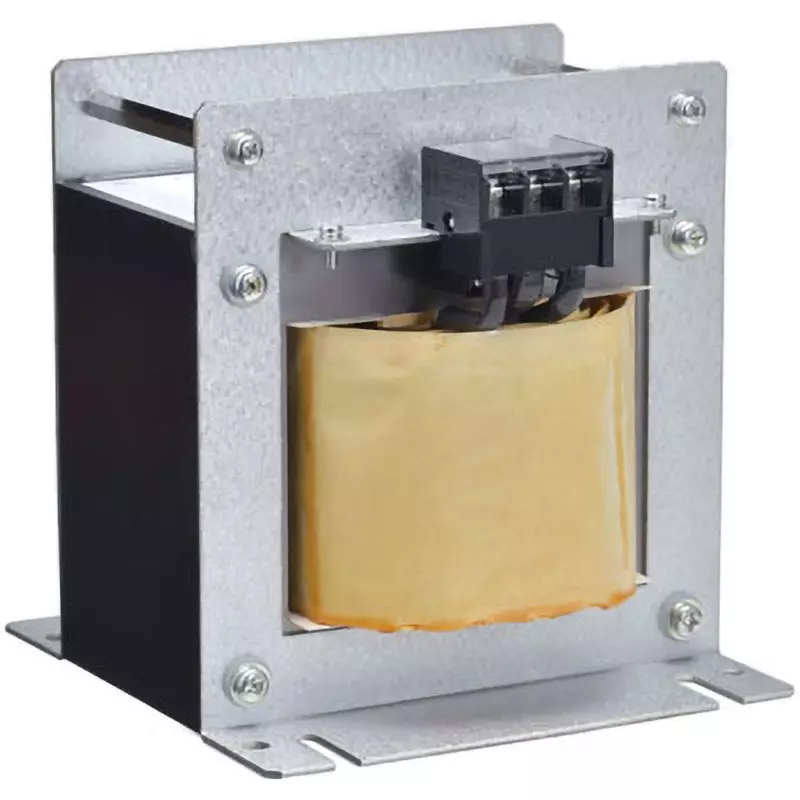

| Model No | NA22-075KF |
| Type of Product | Noise Prevention Transformer |
Capacity (VA) |
7500 |
Secondary Current (Amp) |
37.5 |
Model No |
NA22-075KF |
Type of Product |
Noise Prevention Transformer |
Country of Origin |
Japan |
Shape |
TP |
Dimension B (Φmm) |
(Installation) 220 |
Specifications |
Duplex, with electrostatic shield |
Terminal Screw |
M5 |
Monotaro ID |
73429222 |
No. of Phases |
Single-phase |
Mass (Kg) |
68 |
Temperature Rise |
100°C or less |
Name of Manufacturer/Packer/Importer |
Toyosumi Power Equipment Co., Ltd. |
Operation Ambient Temperature (°C) |
-10 to 40 |
Import Country |
Direct Import from Japan |
Mounting Dimension A (mm) |
192 |
Insulation Type |
F |
Outer Dimension H (mm) |
262 |
Capacity (Kva) |
7.5 |
Frequency (Hz) |
50/60 |
Insulation Resistance (MOhm) |
over 100 |
Mounting Screw |
M8 |
Outer Dimension b (mm) |
290 |
Outer Dimension a (mm) |
266 |
Terminal Spacing |
13.5 mm |
