| Capacity (VA) | 1000 |
| Secondary Current (Amp) | 4.54 |

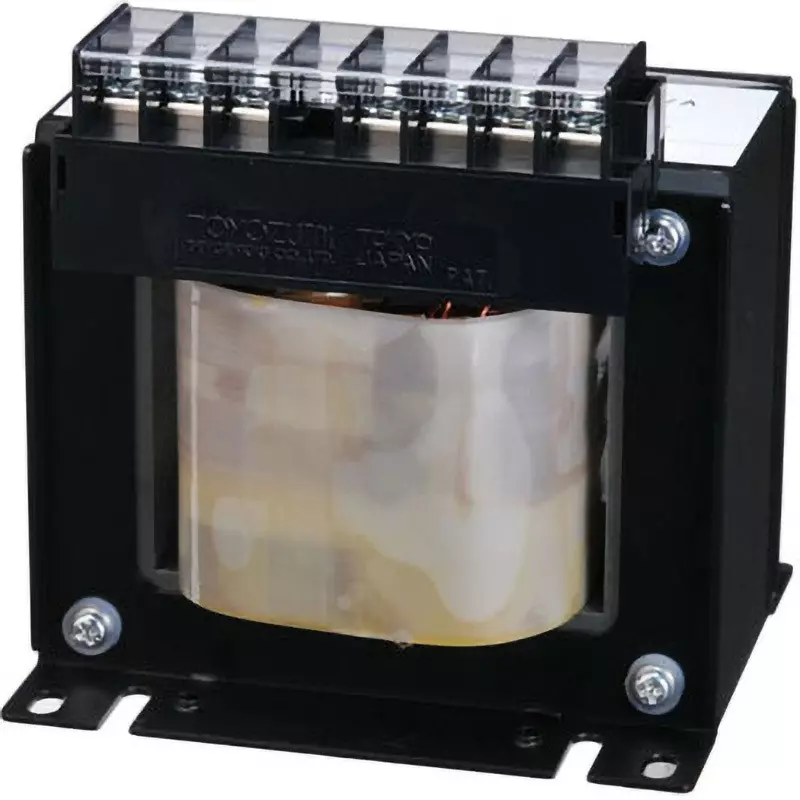

| Model No | LD42-01KF |
| Type of Product | Power Transformer |
Capacity (VA) |
1000 |
Secondary Current (Amp) |
4.54 |
Model No |
LD42-01KF |
Type of Product |
Power Transformer |
Applicable Standard |
JIS C-6436 |
Country of Origin |
Japan |
Shape |
TP-S |
Dimension B (Φmm) |
(Installation) 102 |
Specifications |
Duplex, with electrostatic shield |
Terminal Screw |
M4 |
Monotaro ID |
73427725 |
No. of Phases |
Single-phase |
Mass (Kg) |
8.5 |
Temperature Rise |
100°C or less |
Name of Manufacturer/Packer/Importer |
Toyosumi Power Equipment Co., Ltd. |
Operation Ambient Temperature (°C) |
-10 to 40 |
Import Country |
Direct Import from Japan |
Insulation Type |
F |
Outer Dimension H (mm) |
135 |
Capacity (Kva) |
1 |
Frequency (Hz) |
50/60 |
Insulation Resistance (MOhm) |
over 100 |
Mounting Screw |
M6 |
Outer Dimension b (mm) |
134 |
Outer Dimension a (mm) |
136 |
Terminal Spacing |
8.7 mm |
