| Capacity (VA) | 1k |
| Secondary Current (Amp) | 10 |
| Voltage | Primary voltage 200/208/220/230/240 V |
| Model No | UEE0100-016015-06M(No.45001)1kVA |
Capacity (VA) |
1k |
Secondary Current (Amp) |
10 |
Voltage |
Primary voltage 200/208/220/230/240 V |
Model No |
UEE0100-016015-06M(No.45001)1kVA |
Type of Product |
Power Transformer |
Country of Origin |
Japan |

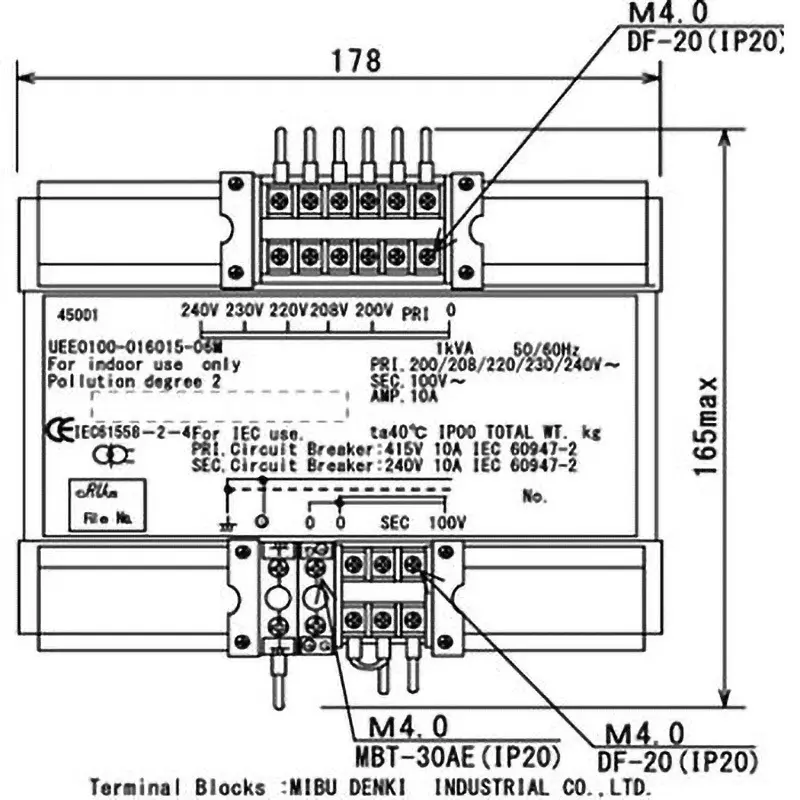

Terminal Screw |
(1st / 2nd) M4, (Ground) M4 |
Monotaro ID |
73429107 |
Mass (Kg) |
15 |
Name of Manufacturer/Packer/Importer |
Toyosumi Power Equipment Co., Ltd. |
Import Country |
Direct Import from Japan |
RoHS Directive |
Correspondence |

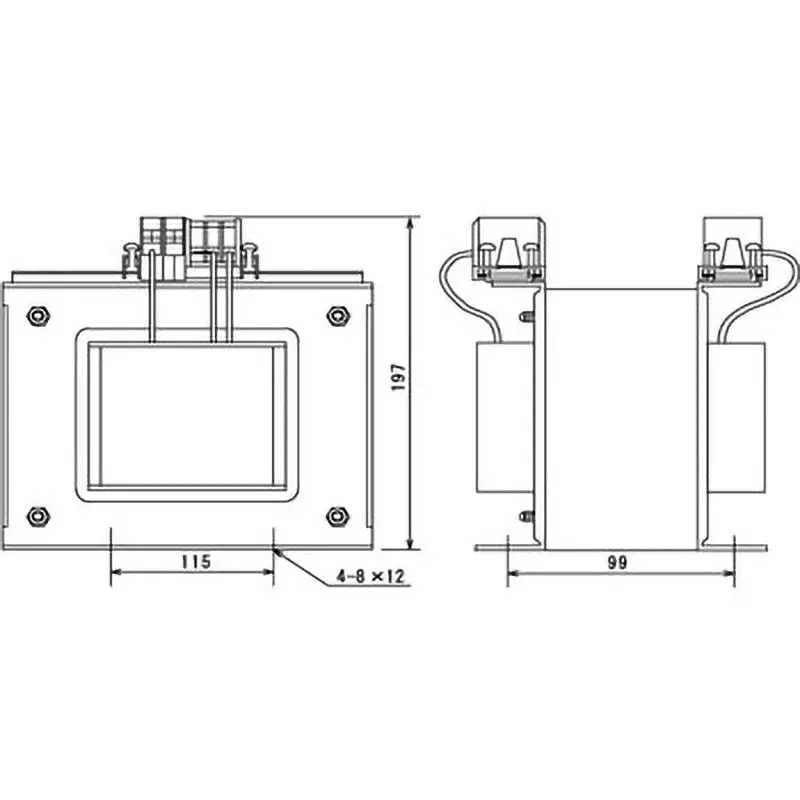

Mounting Dimension A (mm) |
52 |
Insulation Type |
Class F |
Mounting Dimension B (mm) |
79 |
Outer Dimension H (mm) |
94 |
Outer Dimension b (mm) |
92 |
Outer Dimension a (mm) |
79 |
Recommended Screw |
(Mounting) M6 |
Model Name |
UEE0100-016015-06M |
