| Capacity (VA) | 300 |
| Secondary Current (Amp) | 3 |
| Voltage | Primary voltage 200/208/220/230/240 V |
| Model No | UEE0030-016015-03M (No.42087) 300VA |
Capacity (VA) |
300 |
Secondary Current (Amp) |
3 |
Voltage |
Primary voltage 200/208/220/230/240 V |
Model No |
UEE0030-016015-03M (No.42087) 300VA |
Type of Product |
Power Transformer |
Country of Origin |
Japan |
Terminal Screw |
(Primary / Secondary) M3.5, (Ground) M4 |
Monotaro ID |
73429082 |
Mass (Kg) |
6 |
Name of Manufacturer/Packer/Importer |
Toyosumi Power Equipment Co., Ltd. |
Import Country |
Direct Import from Japan |
RoHS Directive |
Correspondence |

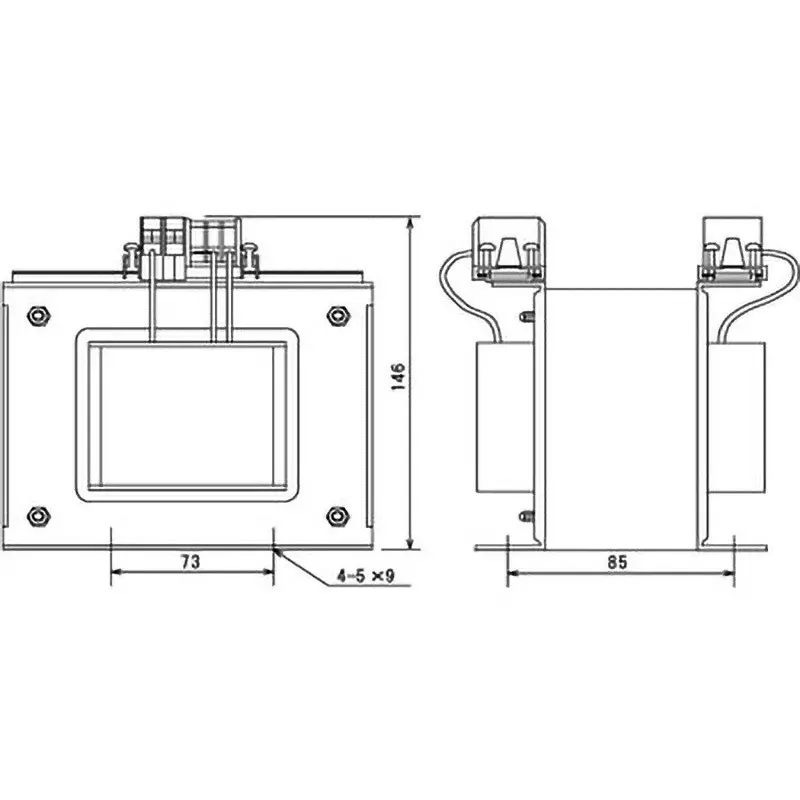

Mounting Dimension A (mm) |
73 |
Insulation Type |
Class F |
Mounting Dimension B (mm) |
85 |
Outer Dimension H (mm) |
146 |
Outer Dimension b (mm) |
150 |
Outer Dimension a (mm) |
118 |
Recommended Screw |
(Mounting) M4 |
Model Name |
UEE0030-016015-03M |
