| Connection Type | Screw terminal block |
| Model No | AD21-02KB2 |
| Type of Product | Power Transformer |
| Applicable Standard | JIS C-5310/6436 |
Connection Type |
Screw terminal block |
Model No |
AD21-02KB2 |
Type of Product |
Power Transformer |
Applicable Standard |
JIS C-5310/6436 |
Country of Origin |
Japan |
Specifications |
Compliant with RoHS directive |
Terminal Screw |
M4 |
Monotaro ID |
37649491 |
Mass (Kg) |
10.5 |
Withstand Voltage |
AC1.5k V |
Temperature Rise |
80°C or less |
Name of Manufacturer/Packer/Importer |
Toyosumi Power Equipment Co., Ltd. |
Import Country |
Direct Import from Japan |
Insulation Type |
B |

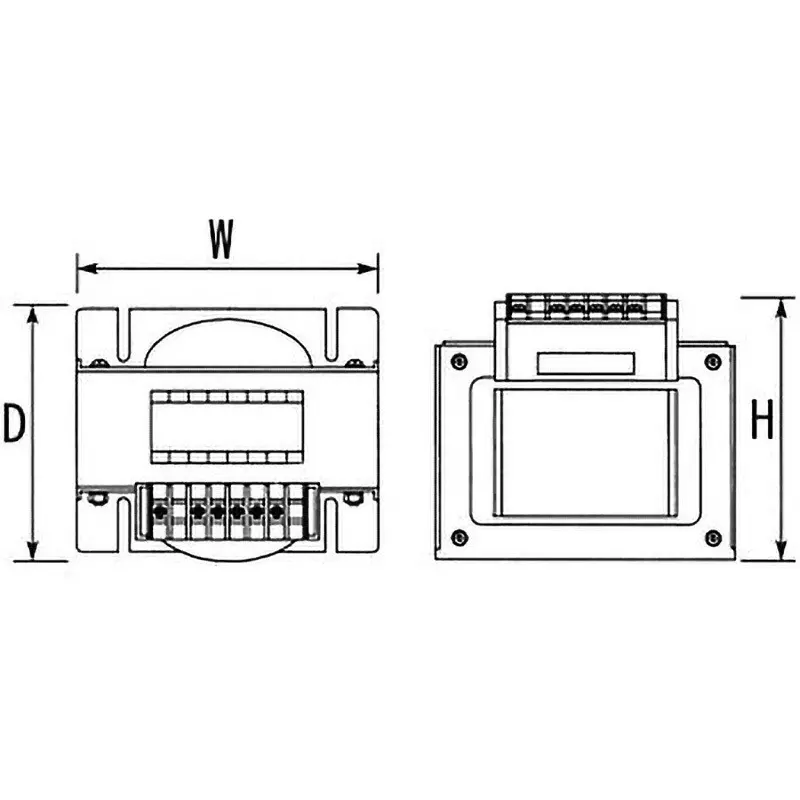

Outer Dimension H (mm) |
150 |
Outer Dimension d (mm) |
127 |
Outer Dimension W (mm) |
157 |
Circuit System |
Single phase/single winding |
Capacity (Kva) |
2 |
Frequency (Hz) |
50/60 |
Mounting Screw |
M6 |
Terminal Spacing |
9.5 mm |
Mounting Dimensions (mm) |
110x92 |
Output Voltage (V) |
100 |
Input Voltage (V) |
200 |
Height H (mm) |
150 |
