| Rated Operating Current (A) | AC-15 (coil load): 6 (100-120 V AC), 3 (200-240 V AC), 1.5 (380-440 V AC), 1.2 (500-600 V AC)<br> AC-12 (resistive load): 10 (AC100-120 V), 8 (AC200-240 V), 5 (AC380-440 V), 5 (AC500-600 V)<br> DC-13 (coil load): 3 (DC24 V), 1.5 (DC48 V), 0.55 (DC110 V), 0.27 (DC220 V)<br> DC-12 (resistive load): 5 (24 V DC), 3 (48 V DC), 2.5 (110 V DC), 1 (220 V DC) |
| Width (mm) | 43 |
| Auxiliary Contacts | 5A3B |
| Type | Auxiliary Relay |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Rated Operating Current (A) |
AC-15 (coil load): 6 (100-120 V AC), 3 (200-240 V AC), 1.5 (380-440 V AC), 1.2 (500-600 V AC)<br> AC-12 (resistive load): 10 (AC100-120 V), 8 (AC200-240 V), 5 (AC380-440 V), 5 (AC500-600 V)<br> DC-13 (coil load): 3 (DC24 V), 1.5 (DC48 V), 0.55 (DC110 V), 0.27 (DC220 V)<br> DC-12 (resistive load): 5 (24 V DC), 3 (48 V DC), 2.5 (110 V DC), 1 (220 V DC) |
Width (mm) |
43 |
Auxiliary Contacts |
5A3B |
Type |
Auxiliary Relay |
Applicable Rail Width (mm) |
35 |
Monotaro ID |
70145120 |
Length (mm) |
111 |
Thickness (mm) |
80 |
Type of Product |
Electromagnetic Contactor |
Mechanical Durability |
10 million times or more |
Mass (Kg) |
320 g |
Electrical Durability |
AC-15: 500,000 times or more (220/440V), AC-12: 250,000 times or more (220/440V), DC-13/-12 (220/440V): 500,000 times or more (24-220V) |
Import Country |
Direct Import from Japan |
Model No |

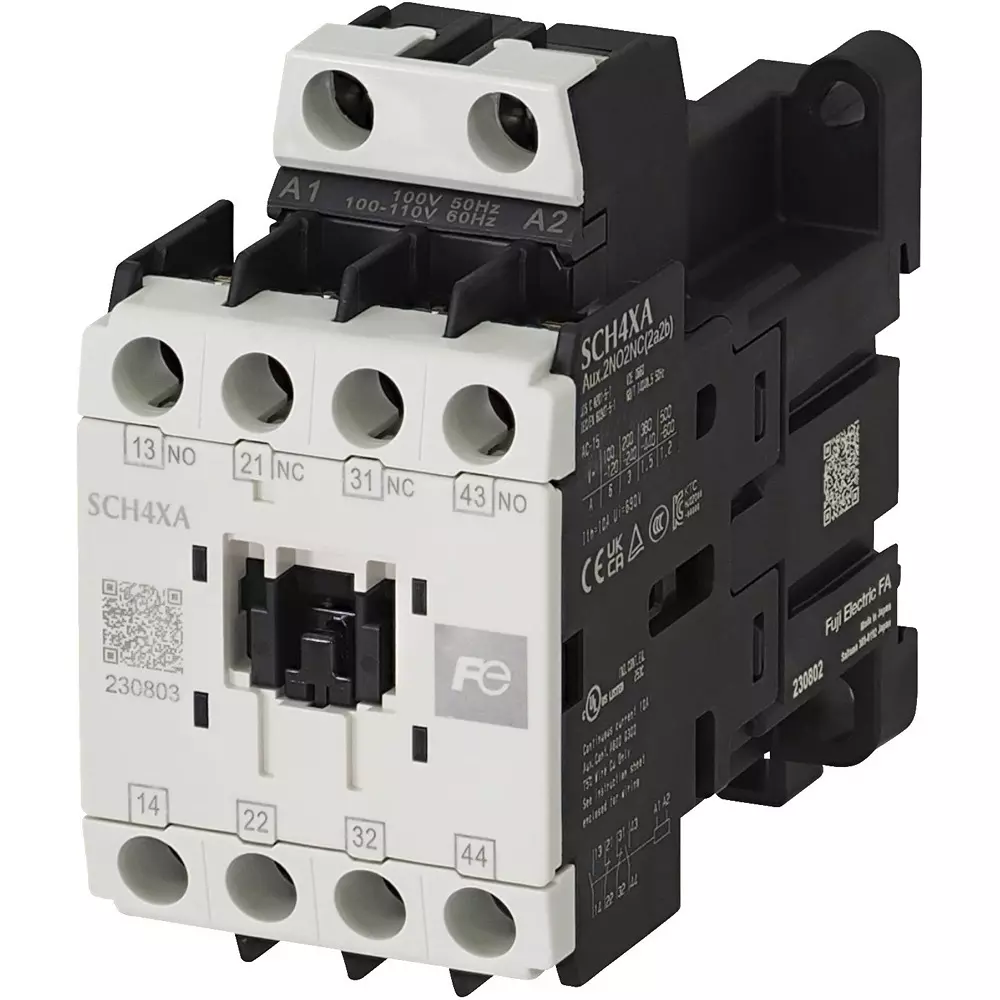

SCH4XA-S53Z3 |
Contact Configuration |
Twin Setup |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Fuji Electric Co., Ltd. |
No. of Pole |
4 |
Terminal Fitting Type |
Screw Mounting, 35 mm wide Top Hat Rail Mounting |
Specifications |
Treatment category: Tropical cold treatment |
Rated Insulation Voltage (V) |
690 |
Installation Altitude (m) |
2000 or less |
No. of Contacts |
8 |
Shock Resistance (m/s²) |
50 |
