| Rated Operating Current (A) | Auxiliary circuit rating<br> AC-15 (coil load): 6 (100-120 V AC), 6 (200-240 V AC), 4 (380-440 V AC), 4 (500-600 V AC)<br> AC-12 (resistive load): 10 (AC 100 to 120 V), 10 (AC 200 to 240 V), 10 (AC 380 to 440 V), 10 (AC 500 to 600 V)<br> DC-13 (coil load): 5 (DC24 V), 1.5 (DC48 V), 0.7 (DC110 V), 0.27 (DC220 V)<br> DC-12 (resistive load): 10 (DC24 V), 5 (DC48 V), 4 (DC110 V), 1 (DC220 V) |
| Width (mm) | 141 |
| Auxiliary Contacts | 2A |
| Type | Frame-Wide |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Rated Operating Current (A) |
Auxiliary circuit rating<br> AC-15 (coil load): 6 (100-120 V AC), 6 (200-240 V AC), 4 (380-440 V AC), 4 (500-600 V AC)<br> AC-12 (resistive load): 10 (AC 100 to 120 V), 10 (AC 200 to 240 V), 10 (AC 380 to 440 V), 10 (AC 500 to 600 V)<br> DC-13 (coil load): 5 (DC24 V), 1.5 (DC48 V), 0.7 (DC110 V), 0.27 (DC220 V)<br> DC-12 (resistive load): 10 (DC24 V), 5 (DC48 V), 4 (DC110 V), 1 (DC220 V) |
Width (mm) |
141 |
Auxiliary Contacts |
2A |
Type |
Frame-Wide |
Applicable Rail Width (mm) |
35 |
Monotaro ID |
70047156 |
Length (mm) |
82 |
Thickness (mm) |
111 |
Type of Product |

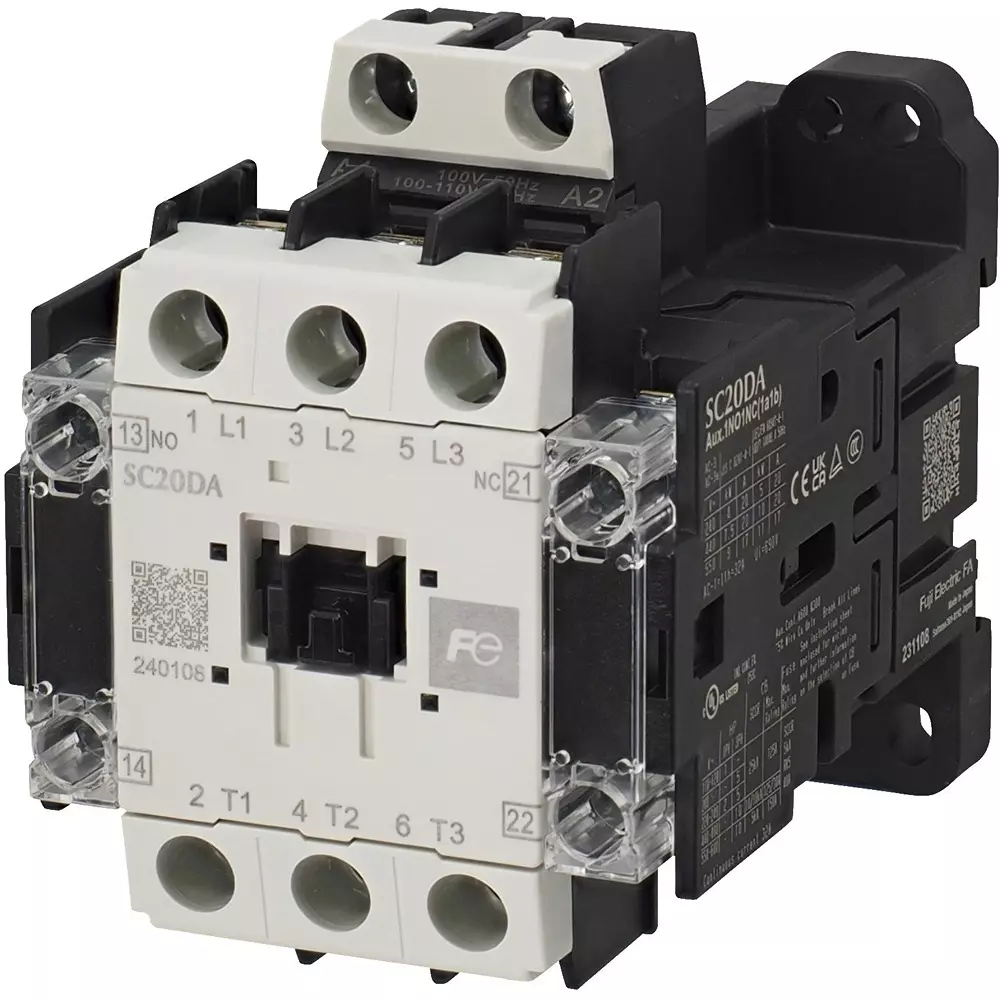

Electromagnetic Contactor |
Mechanical Durability |
10 million times or more |
Mass (Kg) |
810 g |
Electrical Durability |
AC-3/AC-3e: More than 2 million times (220V) |
Import Country |
Direct Import from Japan |
Model No |
SC20DAHR-F20 |
Contact Configuration |
High capacity (single contact) |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Fuji Electric Co., Ltd. |
Rated Current (A) |
(400 V)20 |
Terminal Fitting Type |
Screw Mounting, 35 mm wide Top Hat Rail Mounting |
Specifications |
Processing category: Standard product |
Rated Insulation Voltage (V) |
690 (auxiliary circuit) |
Installation Altitude (m) |
2000 or less |
No. of Contacts |
2 (auxiliary contact) |
Shock Resistance (m/s²) |
50 |
