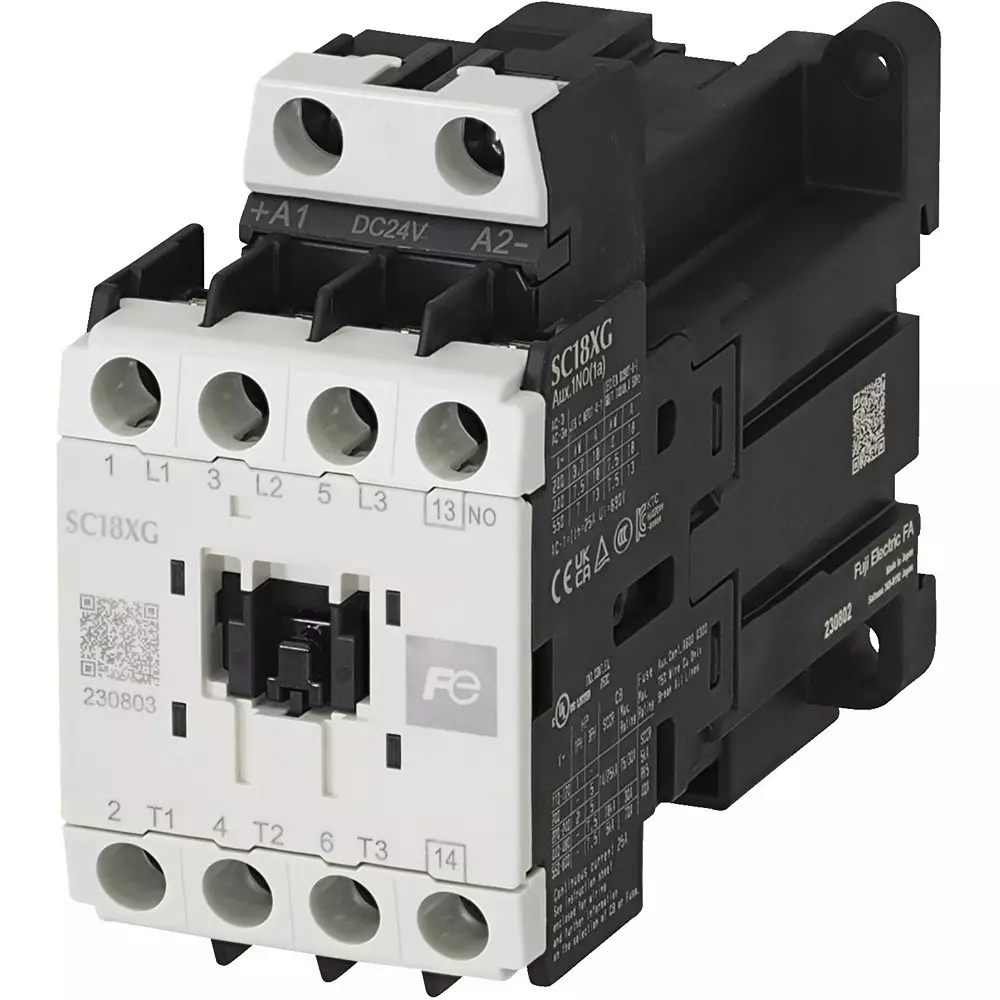

Fuji Electric Electromagnetic Contactor 1B Auxiliary Contact (400 V)18 Amp, SC18XG-H01

Name: Fuji Electric Electromagnetic Contactor 1B Auxiliary Contact (400 V)18 Amp, SC18XG-H01
Brand: Fuji Electric
SKU: IND.ELE.637479831
Price: 5899 INR
Availability: InStock

Visit the Fuji Electric Store

EMI starts at ₹524/month. No Cost EMI available.

Available offers

Flat ₹300 off on Order above ₹7,000 | Valid for NEW Business Users

View

Flat ₹200 off on Order above ₹5000 | Valid for NEW Business Users

View

Flat ₹400 off on Order above ₹10,000 | Valid for REPEAT Business User

View

Flat ₹800 off on Order above ₹20,000 | Valid for REPEAT Business User

View

Features

Rated Operating Current (A)	Three-phase squirrel-cage motor (AC-3): 18 (200-240 V), 18 (380-440 V), 13 (500-550 V)<br> Resistive load (AC-1): 25 (200-240 V), 25 (380-440 V)<br> Auxiliary circuit rating<br> AC-15 (coil load): 6 (100-120 V AC), 3 (200-240 V AC), 1.5 (380-440 V AC), 1.2 (500-600 V AC)<br> AC-12 (resistive load): 10 (AC100-120 V), 8 (AC200-240 V), 5 (AC380-440 V), 5 (AC500-600 V)<br> DC-13 (coil load): 3 (DC24 V), 1.5 (DC48 V), 0.55 (DC110 V), 0.27 (DC220 V)<br> DC-12 (resistive load): 5 (24 V DC), 3 (48 V DC), 2.5 (110 V DC), 1 (220 V DC)
Width (mm)	43
Auxiliary Contacts	1B
Type	Frame - Standard

More Fuji Electric Electromagnetic Contactor products More Electromagnetic Contactor products

Warranty as per brand

100% Original Products

Secure payments

100% Buyer protection

Top Brands

specifications

Rated Operating Current (A)	Three-phase squirrel-cage motor (AC-3): 18 (200-240 V), 18 (380-440 V), 13 (500-550 V)<br> Resistive load (AC-1): 25 (200-240 V), 25 (380-440 V)<br> Auxiliary circuit rating<br> AC-15 (coil load): 6 (100-120 V AC), 3 (200-240 V AC), 1.5 (380-440 V AC), 1.2 (500-600 V AC)<br> AC-12 (resistive load): 10 (AC100-120 V), 8 (AC200-240 V), 5 (AC380-440 V), 5 (AC500-600 V)<br> DC-13 (coil load): 3 (DC24 V), 1.5 (DC48 V), 0.55 (DC110 V), 0.27 (DC220 V)<br> DC-12 (resistive load): 5 (24 V DC), 3 (48 V DC), 2.5 (110 V DC), 1 (220 V DC)
Width (mm)	43
Auxiliary Contacts	1B
Type	Frame - Standard
Applicable Rail Width (mm)	35
Monotaro ID	70058128
Length (mm)	96
Thickness (mm)	80
Type of Product	Electromagnetic Contactor
Mechanical Durability	10 million times or more
Mass (Kg)	350 g
Electrical Durability	AC-3/AC-3e: 1.5 million times or more (220V)
Import Country	Direct Import from Japan
Model No	SC18XG-H01
Contact Configuration	Twin Setup
Country of Origin	Japan
Name of Manufacturer/Packer/Importer	Fuji Electric Co., Ltd.
Rated Current (A)	(400 V)18
Terminal Fitting Type	Screw Mounting, 35 mm wide Top Hat Rail Mounting
Specifications	Processing category: Standard product
Rated Insulation Voltage (V)	690 (auxiliary circuit)
Installation Altitude (m)	2000 or less
No. of Contacts	1 (auxiliary contact)
Shock Resistance (m/s²)	50
