Rated Current (A)
View
View
View
View
| Coil Voltage Rating (V) | AC 100 V |
| Rated Operating Current (A) | 3-Phase Squirrel Cage Motor (AC-3) :( 200~240V) 11/(380~440V) 7A, Single-Phase Motor (AC-3) :( 100V) 11/(200V) 11A |
| Auxiliary Contacts | 1b×2 |

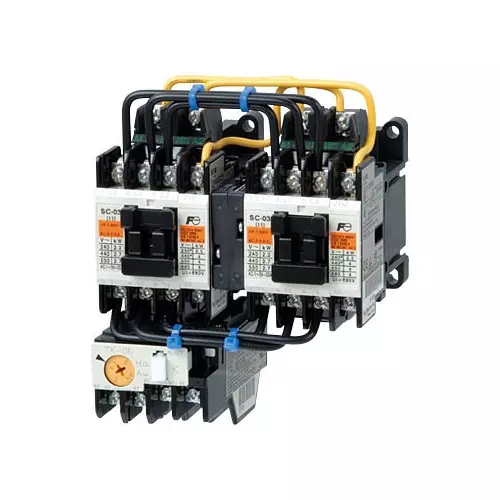

| Type | Electromagnetic Switch |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Coil Voltage Rating (V) |
AC 100 V |
Rated Operating Current (A) |
3-Phase Squirrel Cage Motor (AC-3) :( 200~240V) 11/(380~440V) 7A, Single-Phase Motor (AC-3) :( 100V) 11/(200V) 11A |
Auxiliary Contacts |
1b×2 |
Type |
Electromagnetic Switch |
Monotaro ID |
50282364 |
Type of Product |
Electromagnetic Switch |
Operation Type |
Reversible |
Series |
SW-03RM |
Width |
100 mm |
Length |
122 mm |
Model No |
SW-03RM 0.95A |
Thickness |
80 mm |
Rated Carrying Current |
20 A |
Compatible Motor Capacity |
Single-Phase Motor (AC-3): (100V) 0.4 kW & (200V) 0.8 kW, 3-Phase Squirrel Cage Motor (AC-3): 2.2 kW @200-240V & 2.7 kW @380-440V |
Rated Current (A) |
0.95 A |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Fuji Electric Co Ltd |
