| Classification | Treatment category: Tropical Cold Treatment |
| Width (mm) | 43 |
| Auxiliary Contacts | 1A |
| Type | Frame - Standard |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Classification |
Treatment category: Tropical Cold Treatment |
Width (mm) |
43 |
Auxiliary Contacts |
1A |
Type |
Frame - Standard |
Monotaro ID |
69540670 |
Length (mm) |
78 |
Type of Product |

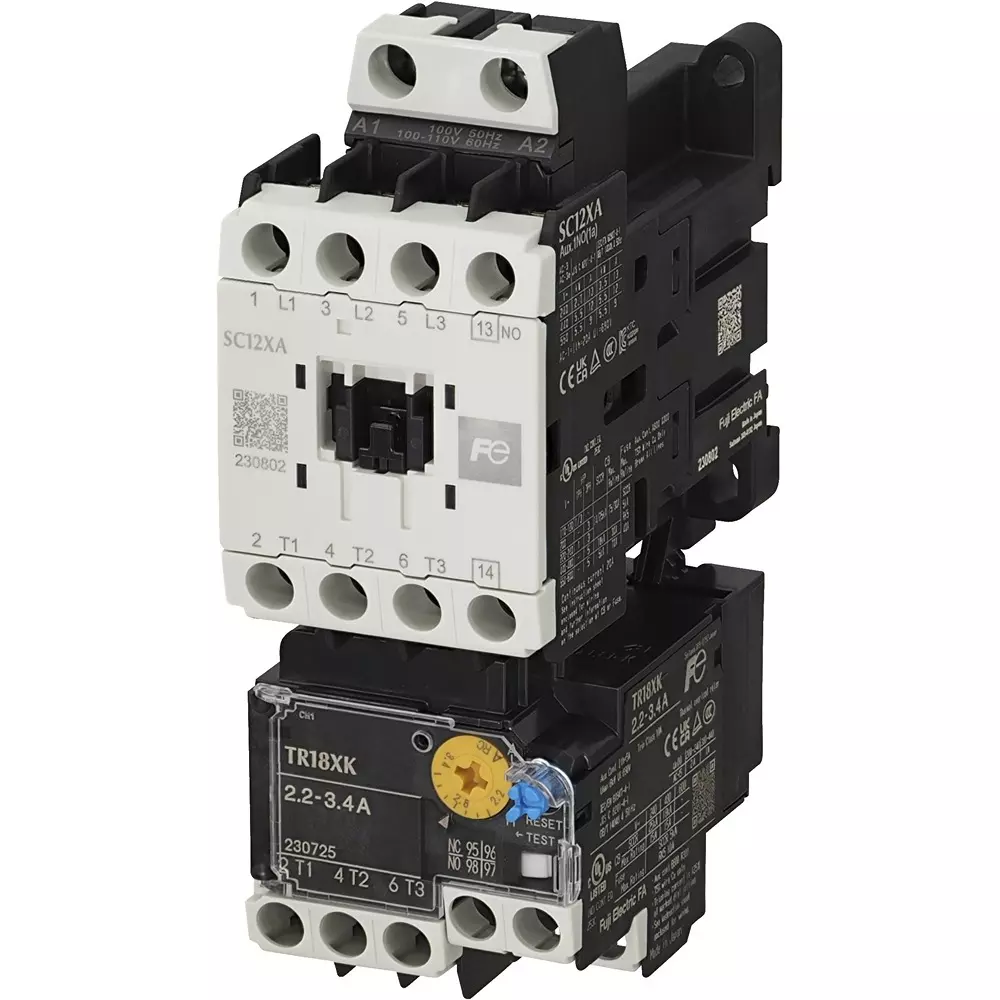

Electromagnetic Switch |
Applicable Rail Width (mm) |
35 |
Thickness (mm) |
125 |
Coil Voltage |
AC 100 V |
Model No |
SW12XA2-110TP24Z3 |
Import Country |
Direct Import from Japan |
Contact Configuration |
[Auxiliary] Twin Setting |
Rated Current (A) |
(400 V) 12 Amp |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Fuji Electric Co., Ltd. |
Type of Resetting |
Manual |
Atmosphere |
Low Levels Of Dust, Smoke, Corrosive Gases, Flammable Gases, Steam, and Salt. |
Mass |
370 g |
Specifications |
Case Cover: None |
Shock Resistance (m/s²) |
50 m/s² |
Terminal Fitting Type |
Screw Mounting, 35 mm Wide Top Hat Rail Mounting |
Installation Altitude (m) |
2000 or less |
Voltage Fluctuation |
[Control Circuit] Closed Circuit Voltage (Operating Voltage): 85 to 110% of the Rated Voltage |
Number of Heat Elements |
2 Elements (Thermal Relay) |
