Ships within 19 days
Model No
View
View
View
View
| Rated Frequency (Hz) | 50/60 Hz |
| Rated Impulse Withstand Voltage (kV) | Between terminals of the same polarity: 2.5, Between terminals of different polarities: 4, Between each terminal and non-current-carrying metal parts: 6 |
| Mechanical Durability | 1,000,000 Times or More |
| Type | Standard type |
Rated Frequency (Hz) |
50/60 Hz |
Rated Impulse Withstand Voltage (kV) |
Between terminals of the same polarity: 2.5, Between terminals of different polarities: 4, Between each terminal and non-current-carrying metal parts: 6 |
Mechanical Durability |
1,000,000 Times or More |
Type |
Standard type |
Monotaro ID |
46534092 |
Rated Insulation Voltage (V) |
(Ui)300(EN60947-5-1) |
Type of Product |

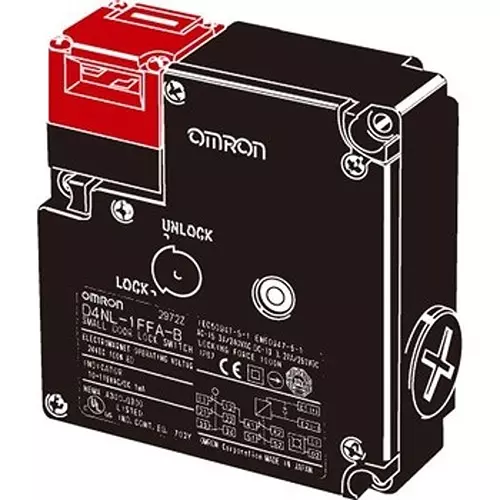

Small Electromagnetic Lock/Safety Door Switch |
Electrical Durability |
500,000 times or more (AC250V 3A, with resistive load) |
Series |
D4NL Series |
Protection Class |
IP67(EN60947-5-1) |
Mounting Side |
Can be installed in 4 directions (front facing when shipped) |
Allowable Operating Speed |
0.05 to 0.5m/s |
Head Material |
Metal |
Electric Shock Protection Class |
Class II (double insulation) |
Minimum Applicable Load |
5 V DC 1 mA Resistance Load |
Shock Resistance |
1000m / s² or more |
Operating Force |
(Direct opening) Minimum 60N (EN60947-5-1) |
Pollution Degree (Environment to Use) |
Pollution degree 3 (EN60947-5-1) |
Indicator Lamp |
AC / DC 10 to 115 V drive type (orange LED display) |
Model No |
D4NL-2DDA-B |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Vibration Resistance (Malfunction) |
10-55Hz 0.75 mm single amplitude |
Operation Ambient Temperature (°C) |
-10 to 55 (no icing) |
Pack of |
1 Pcs |
Contact Resistance (ohm) |
25 or less (per contact) |
Insulation Resistance (MOhm) |
100 mohm or more (with DC500 V mega) |
Built in Switch |
2NC (Slow Action) + 2NC (Slow Action) |
