| Voltage | AC 200 DC100 V |
| Type of Product | Slip Ring System |
| Model No | SRY80A-100-11P |
| Country of Origin | Japan |
Voltage |
AC 200 DC100 V |
Type of Product |
Slip Ring System |
Model No |
SRY80A-100-11P |
Country of Origin |
Japan |
Dielectric Strength |
2500V 1min |
Name of Manufacturer/Packer/Importer |
Kyoei Electric Co., Ltd. |
No. of Pole |
11 |
Monotaro ID |
7862977 |
Import Country |
Direct Import from Japan |

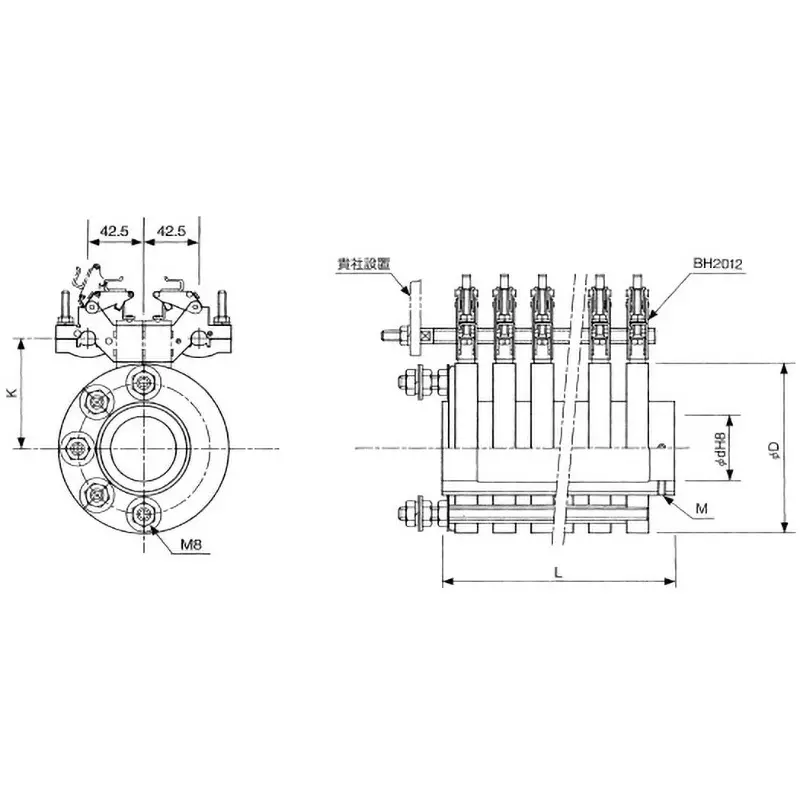

Dimension H (Φmm) |
120 |
Inner Diameter d (Φmm) |
100 |
Allowable Rotation Speed (min-1 [rpm]) |
2000 |
Insulation Resistance |
50 mΩ (500 V) or more |
Dimension L (mm) |
337 |
Dimension M |
M8 mm |
Allowable Current (A) |
80 |
Dimension D (Φmm) |
200 |
Direction of Rotation |
cw-ccw |
