| Leakage Current | 10 μA or less (DC 250 V/60 Hz) |
| Type of Product | EMC Filter |
| Model No | RSEN-2003LD |
| Length (mm) | 43.4 |
Leakage Current |
10 μA or less (DC 250 V/60 Hz) |
Type of Product |
EMC Filter |
Model No |
RSEN-2003LD |
Length (mm) |
43.4 |
Width (mm) |
98 |
Monotaro ID |
46746892 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TDK-LAMBDA |
Import Country |
Direct Import from Japan |
Type |

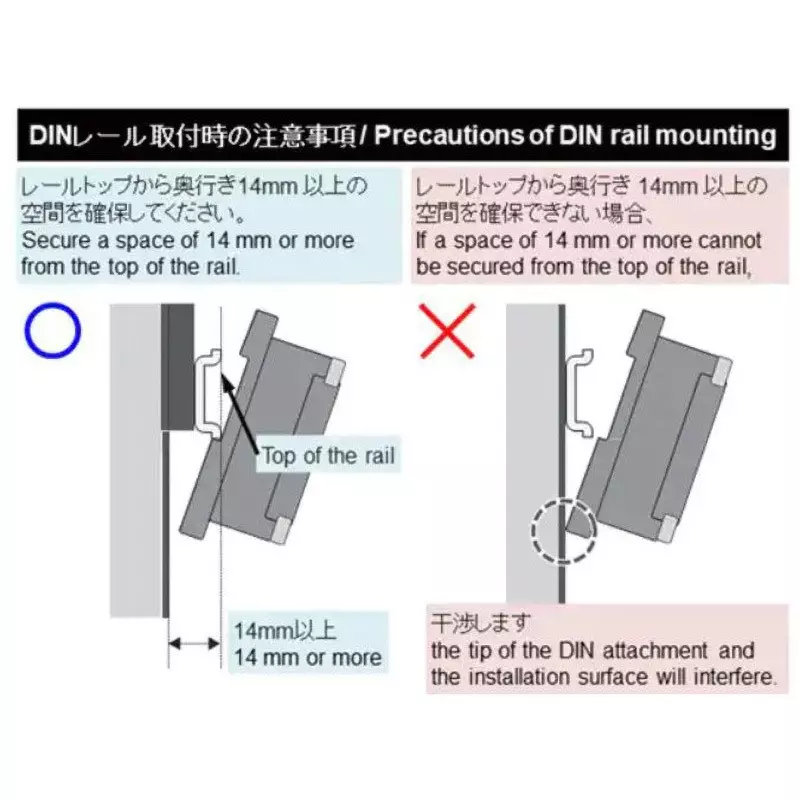

Low leakage current characteristics and DIN rail mounting |
Rated Voltage (V) |
AC/DC 250 |
Rated Current (A) |
3 |
Mass (g) |
200 |
Insulation Resistance (MOhm) |
100min(DC500V/1min)(20±15℃, 65±20℃) |
Operating Temperature (c) |
-25 to 85 |
Storage Temperature |
-25 to 85 |
Safety Standard |
EN60939(SEMKO), UL1283, CSA C22.2No.8 |
Temperature (℃) |
55 |
Height (mm) |
52 |
Performance |
General-purpose characteristics |
Vibration Resistance |
10 to 55 Hz (sweep for 1 minute) 9.8 m/s ² constant, 2 hours in each of X, Y, and Z directions |
Temperature Rise |
30 |
Dimension E (Φmm) |
43 |
Dimension F (Φmm) |
M4 |
Dimension d |
75 |
DC Resistance |
250 mΩ |
