| Country of Origin | Japan |
| Monotaro ID | 8524065 |
| Import Country | Direct Import from Japan |
| Name of Manufacturer/Packer/Importer | Swallow Electric Co., Ltd. |
Country of Origin |
Japan |
Monotaro ID |
8524065 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Swallow Electric Co., Ltd. |

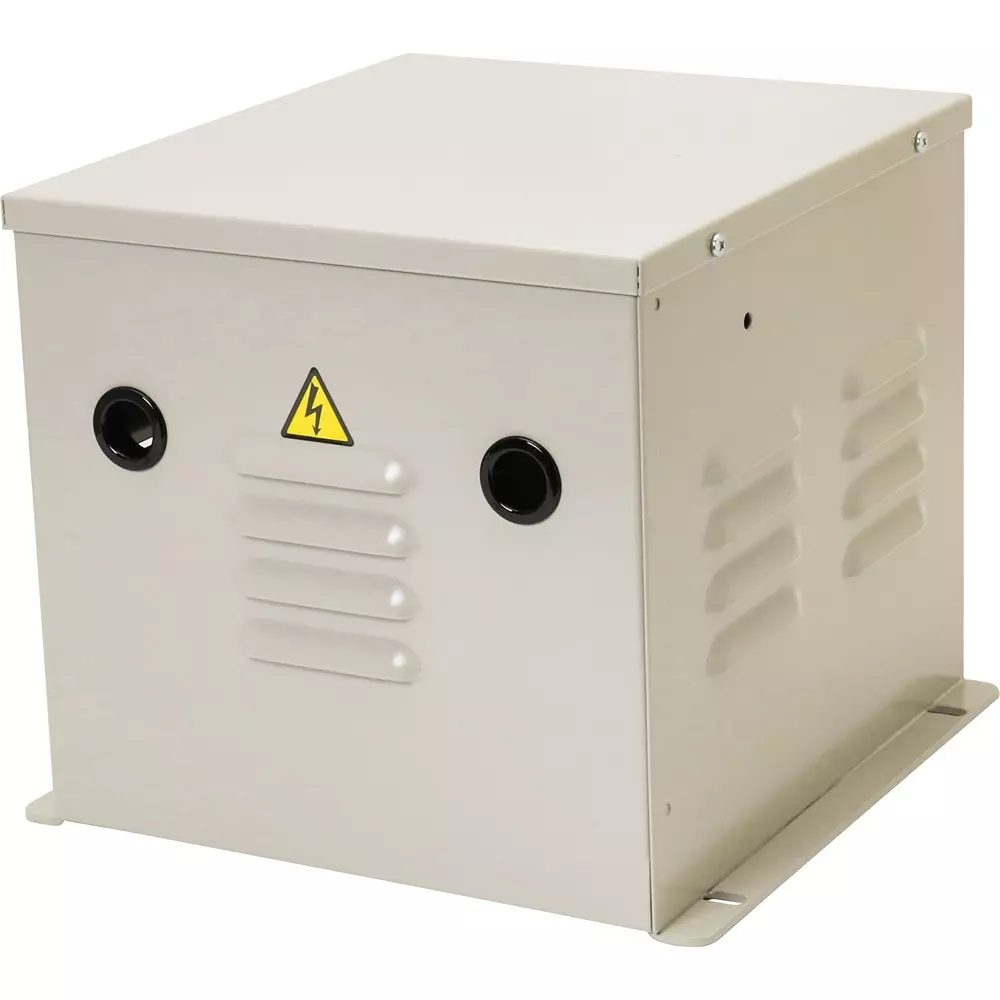

Type of Product |
Power Transformer |
Model No |
BK-2 |

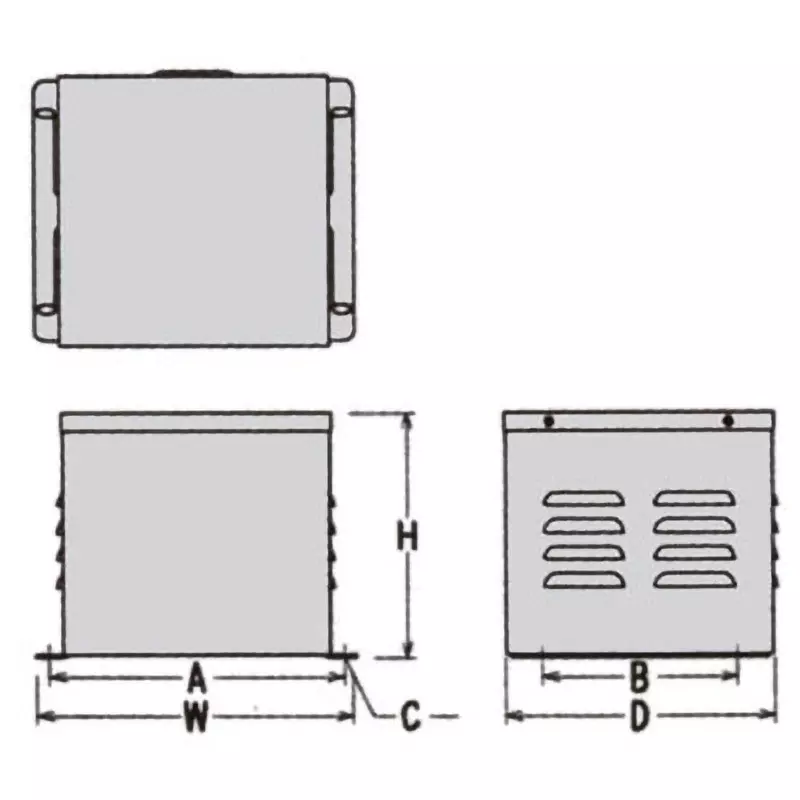

Mounting Dimension A (mm) |
200 |
Mounting Dimension B (mm) |
150 |
Paint Color |
Munsell 5Y7 / 1 |
Suitable For |
Single phase / single winding: 1k to 2kVA <br> Single phase, multiple winding: 250-1kVA <br> Three-phase, single volume: 200 to 1 kVA <br> Three-phase double winding: 100-500VA |
Specifications |
Indoor use case |
Capacity (Kva) |
Single-phase, single winding: 0.75 to 2, Single-phase, compound winding: 0.25 to 1, Three-phase, single winding: 0.1 or less, Three-phase, compound winding: 0.05 or less |
Mass (Kg) |
About 2.4 |
Mounting Hole C (mm) |
6x12 |
Outer Dimensions |
215x211x182 mm |
Compatible Models |
Single phase, single winding: 750VA to 2kVA, Single phase, double winding: 250VA to 1kVA, Three phase, single winding: 100VA or less, Three phase, double winding: 50VA or less |
