Ships within 19 days

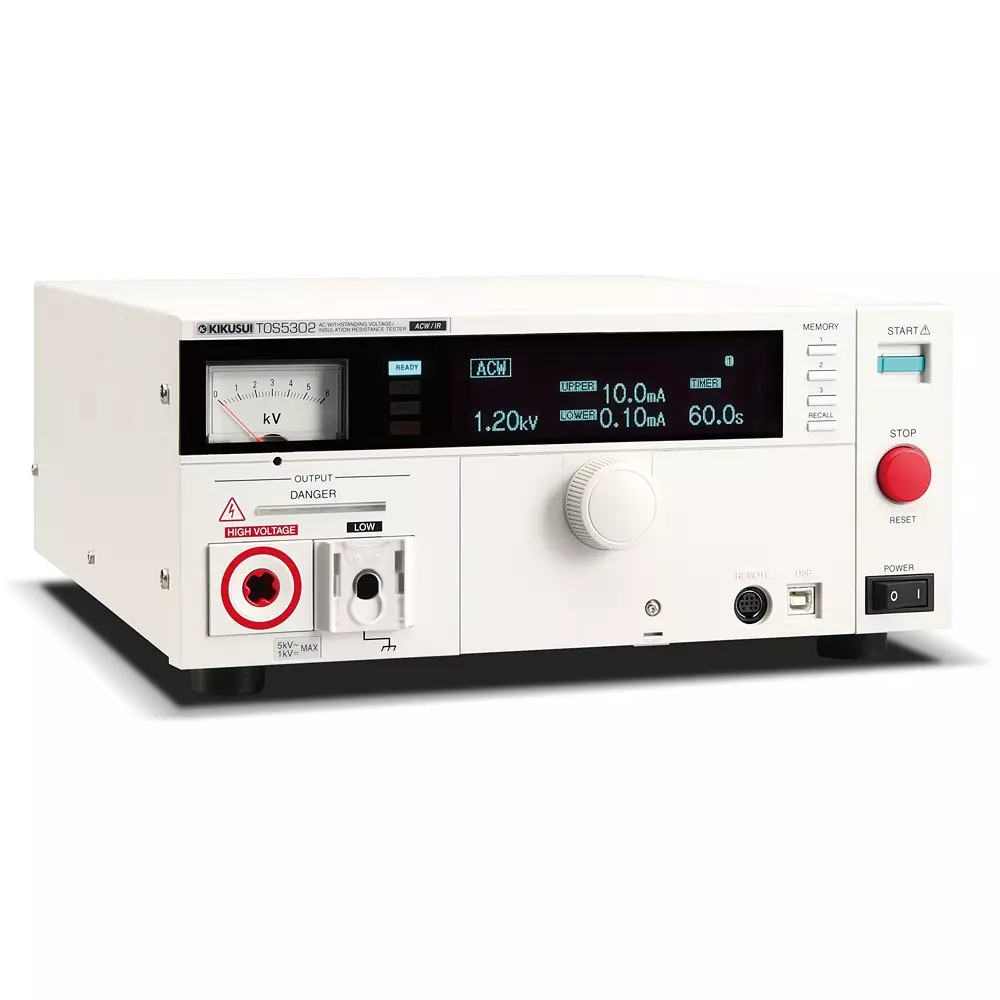

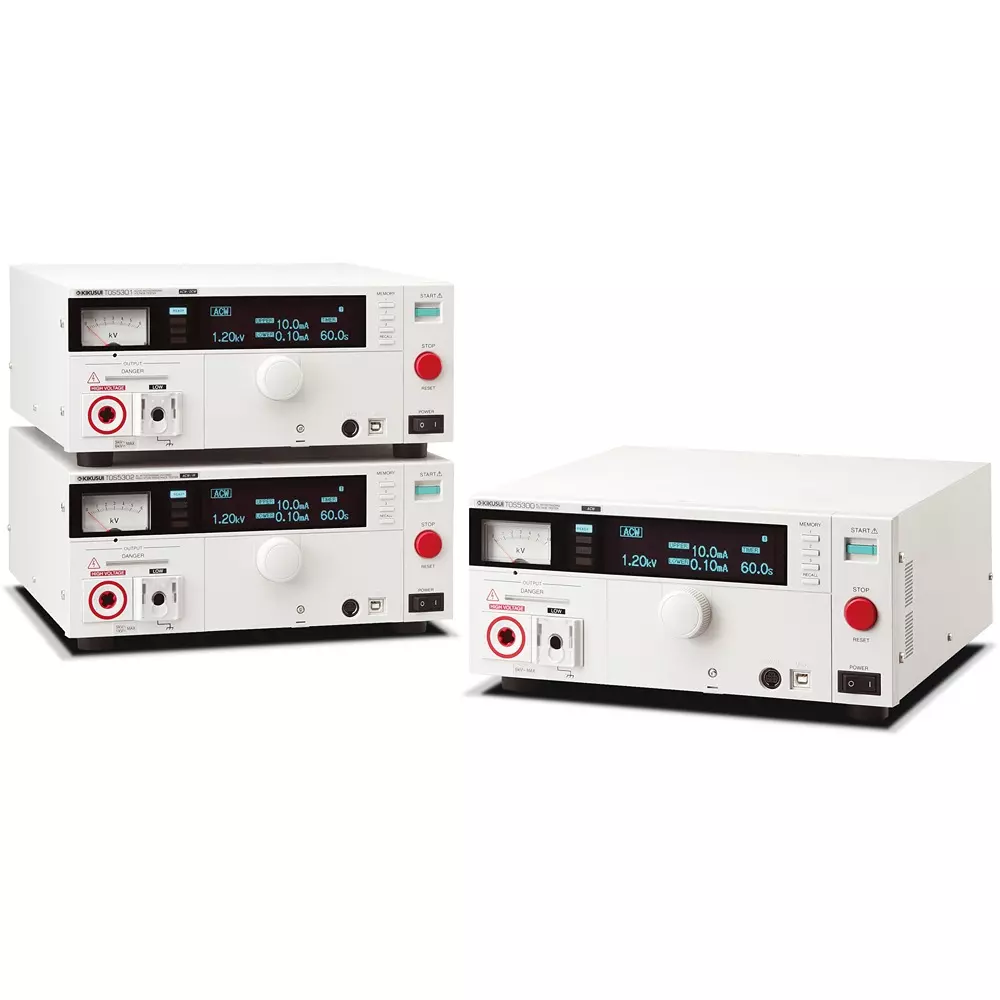

![Kikusui Multi Work Tester [Withstanding voltage tester] (Voltmeter) 0.000 kV to 6.500 kVAC/DC, (Ammeter) AC:, TOS5302](http://static1.industrybuying.com/products/testing-and-measuring-instruments/non-electrical-properties-testing/emf-tester/TES.EMF.846075130_1788866255978.webp "Kikusui Multi Work Tester [Withstanding voltage tester] (Voltmeter) 0.000 kV to 6.500 kVAC/DC, (Ammeter) AC:, TOS5302")
View
View
View
View
| Type of Product | Multi Work Tester |
| Measurement Range | [Withstanding voltage tester] (Voltmeter) 0.000kV to 6.500kVAC/DC, (Ammeter) AC: 0.00mA to 110mA [Insulation resistance tester] (Voltmeter) 0V to -1200V, (Resistance meter) < 25V>30kΩ≤R≤25MΩ/±(2% of rdng+2digit), 25MΩ <R≦125MΩ/±5% of rdng、125MΩ<R≦250MΩ/±10% of rdng ＜50V＞50kΩ≦R≦50MΩ/±(2% of rdng+2digit)、50MΩ<R≦250MΩ/±5% of rdng、250MΩ<R≦500MΩ/±10% of rdng ＜100V＞100kΩ≦R≦100MΩ/±2% of rdng、100MΩ<R≦500MΩ/±5% of rdng、500MΩ<R≦1GΩ/±10% of rdng ＜125V＞125kΩ≦R≦125MΩ/±2% of rdng、125MΩ<R≦625MΩ/±5% of rdng、625MΩ<R≦1.25GΩ/±10% of rdng ＜250V＞250kΩ≦R≦250MΩ/±2% of rdng、250MΩ<R≦1.25GΩ/±5% of rdng、1.25GΩ<R≦2.5GΩ/±10% of rdng ＜500V＞500kΩ≦R≦500MΩ/±2% of rdng、500MΩ<R≦2.5GΩ/±5% of rdng、2.5GΩ<R≦5GΩ/±10% of rdng ＜1000V＞1MΩ≦R<1GΩ/±2% of rdng、1GΩ≦R≦5GΩ/±5% of rdng |
| Model No | TOS5302 |
| Frequency Range (Hz) | (Acceptable) 47-63 |
Type of Product |
Multi Work Tester |
Measurement Range |
[Withstanding voltage tester] (Voltmeter) 0.000kV to 6.500kVAC/DC, (Ammeter) AC: 0.00mA to 110mA [Insulation resistance tester] (Voltmeter) 0V to -1200V, (Resistance meter) < 25V>30kΩ≤R≤25MΩ/±(2% of rdng+2digit), 25MΩ <R≦125MΩ/±5% of rdng、125MΩ<R≦250MΩ/±10% of rdng ＜50V＞50kΩ≦R≦50MΩ/±(2% of rdng+2digit)、50MΩ<R≦250MΩ/±5% of rdng、250MΩ<R≦500MΩ/±10% of rdng ＜100V＞100kΩ≦R≦100MΩ/±2% of rdng、100MΩ<R≦500MΩ/±5% of rdng、500MΩ<R≦1GΩ/±10% of rdng ＜125V＞125kΩ≦R≦125MΩ/±2% of rdng、125MΩ<R≦625MΩ/±5% of rdng、625MΩ<R≦1.25GΩ/±10% of rdng ＜250V＞250kΩ≦R≦250MΩ/±2% of rdng、250MΩ<R≦1.25GΩ/±5% of rdng、1.25GΩ<R≦2.5GΩ/±10% of rdng ＜500V＞500kΩ≦R≦500MΩ/±2% of rdng、500MΩ<R≦2.5GΩ/±5% of rdng、2.5GΩ<R≦5GΩ/±10% of rdng ＜1000V＞1MΩ≦R<1GΩ/±2% of rdng、1GΩ≦R≦5GΩ/±5% of rdng |
Model No |
TOS5302 |
Frequency Range (Hz) |
(Acceptable) 47-63 |
Power Consumption |
No load (READY): 100 VA or less, rated load: 800 VA max. |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Kikusui Electronics Co., Ltd. |
Import Country |
Direct Import from Japan |
Monotaro ID |
20217533 |
Included Components |
Power cord x 1, High voltage test lead (TL31-TOS) x 1 set (1 each for red and black, with alligator clip, 1.5m), D-SUB25P plug x 1 Assembly type, High voltage danger seal x 1, User's Manual x 1, CD-R |
Mass (Kg) |
About 14 |
RoHS Directive |
Correspondence |
Frequency (Hz) |
50/60 |
Installation Location |
Indoor, altitude up to 2000m |
Ripple Cotent |
[Insulation resistance tester section] 1000V no load: 2Vp-p or less, maximum rated load: 10Vp-p or less |
Insulation Resistance (MOhm) |
Between AC LINE and chassis: 30 or more (500Vdc) |
Outer Dimensions, Width W x Height H x Depth D (mm) |
320 (up to 330) x 132 (up to 150) x 350 (up to 420) |
Output Waveform |
[Dielectric strength tester section] Sine wave |
Period |
3 years (at 25 ° C) |
Voltage Fluctuation |
[Dielectric strength tester section] (input) 10% or less (maximum rated load → no load), [Insulation resistance tester section] 1% or less (maximum rated load → no load) |
Guaranteed Performance Temperature and Humidity |
5 ℃ to 35 ℃, 20% rh to 80% rh (no condensation) |
Output |
[Withstand voltage tester] Range: 0.05kV to 5.00kV, Setting accuracy: ± (2% of set + 20V) [No load], Setting range: 0.00kV to 5.50kV, Setting resolution: 10V STEP |
Withstand Voltage |
Between AC LINE and chassis: 1400Vac, 2 seconds (100% test) / 1500Vac, 1 minute (type test) |
Transformer |
[Dielectric strength tester] 500VA |
Safety |
Low Voltage Directive 2006/95 / EC, EN 61010-1 (Class I, Pollution degree 2) |
Operating Temperature / Humidity Range |
0-40 ℃, 20% rh-80% rh (no condensation) |
Allowable Voltage Range |
AC 90 to 250 V |
EMC Standard to Conform |
EMC Directive 2004/108 / EC, EN 61326-1 (Class A), EN 55011 (Class A, Group 1), EN 61000-3-2, EN 61000-3-3, Applicable conditions: Cables connected to this product and All wires must be less than 2.5 m. When using SIGNAL I / O, use shielded cables. Use high-voltage test leads TL31-TOS. Do not discharge outside the tester. |
Rated Current (mA) |
[Dielectric strength tester section] Up to 100 (output voltage 0.5 kV or more), [Insulation resistance tester section] Up to 1 |
Nominal Voltage |
AC 100 to 240 V |
Output fluctuation |
[Dielectric strength tester section] 10% or less (maximum rated load → no load) |
Waveform Distortion |
[Withstand voltage tester] Output voltage 0.5kV or more: 3% or less (no load and pure resistance load) |
Storage Temperature/Humidity Range |
-20 ℃ to 70 ℃, 90% rh or less (no condensation) |
Output Type |
[Withstand voltage tester] PWM switching system |
Rated Voltage |
[Dielectric strength tester section] Up to 5 kV |
Rated Output |
[Dielectric strength tester section] Maximum 500VA (5kV / 100mA) |
Short Circuit Current |
[Dielectric strength tester section] 200 mA or more (output voltage 1.0 kV or more), [Insulation resistance tester section] 12 mA or less |
Output Voltage (V) |
[Insulation resistance tester section] Setting: 25, 50, 100, 125, 250, 500, 1000 DC, negative polarity, setting accuracy: -0%, + 5% |
Rated Load |
[Insulation resistance tester section] 1W maximum (-1000V DC / 1mA) |
