| Type of Product | Wire Type Linear Encoder |
| Model No | DE-04-V |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | MUTOH HOLDINGS CO., LTD. |
Type of Product |
Wire Type Linear Encoder |
Model No |
DE-04-V |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
MUTOH HOLDINGS CO., LTD. |
Import Country |
Direct Import from Japan |
Monotaro ID |
38639605 |
Maximum Speed |
(Detection) 60 m/min |
Durability |
(Number of round trips) 500,000 times (within 0-2m), 200,000 times (2-4m) |
Effective Length (mm) |
(Wire) 4000 |
Protection Class |
IP63 (electric part only) |
Mass (g) |
880 |
Storage Temperature Range |
-20 to 80℃ |
Wire Rope Diameter (Φmm) |
0.45 |
Material (Wire Part) |
SUS304 |
Operation Mode |
Complementary |
Power Consumption |
70 mA or less |
Input Power |
DC 4.5 to 26 V |
Operating Temperature Range |
-10 to 45℃ (no condensation) |
Vibration Resistance |
30 minutes at 49m / s ² (5G) |
Pulse Output |
5 pulses / mm |
Standard Tension (N) |
Wire / 1.96 to 4.9 (200 to 500gf) |

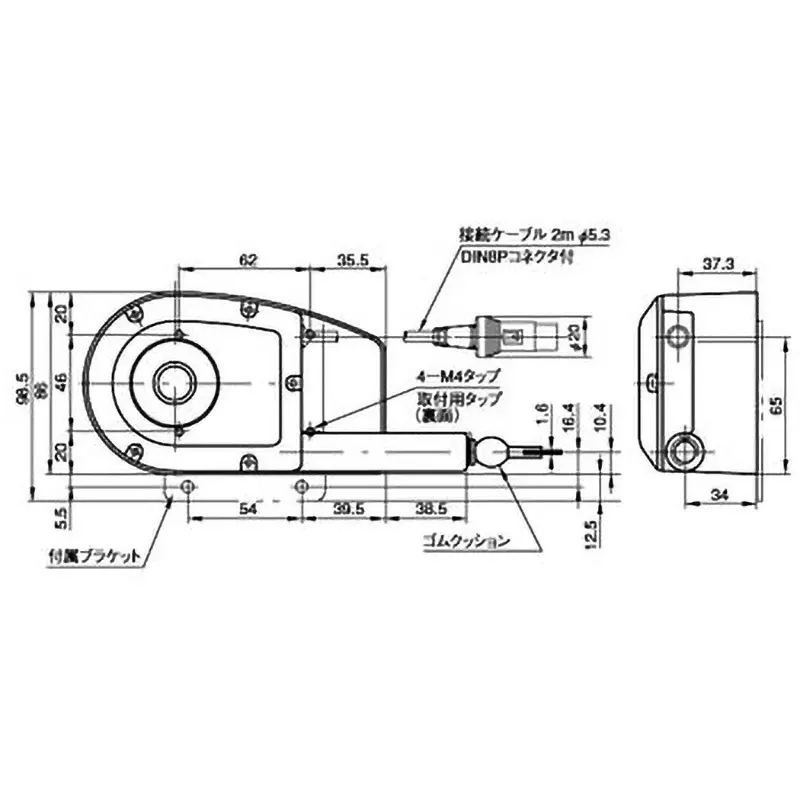

Connection Cable |
2m, Φ5.3 (with DIN8P connector) |
Accuracy |
Distance (at 20 ° C) /0.05% + quantization error, restoration (at 20 ° C) /±0.02mm + quantization error |
Resolution (mm) |
0.1 (when doubled) |
Shock Resistance (m/s²) |
Endurance / 490 (50G) |
Output Phase |
A, B phase |
