| Type | Induction motor |
| Type of Product | Induction Motor Pinion Shaft Motor |
| Model No | M71X15G4L |
| Voltage | 100/100 V |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
Induction motor |
Type of Product |
Induction Motor Pinion Shaft Motor |
Model No |
M71X15G4L |
Voltage |
100/100 V |
No. of Pole |
4 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Capacitor Capacitance (μF) |
4(200V)/4(200V) |
Import Country |
Direct Import from Japan |
Specifications |
Hasuba gear |
Output (kW) |
1.4999999999999999E-2 |
Rated Time (minutes) |
Continuous |
Options |
Lead |
Monotaro ID |
8631341 |
Frequency (Hz) |
50/60 |
Power Supply |
Single phase / AC |
Size (mm) |
70 |
Mass (Kg) |
1.1000000000000001 |
Module |
0.5 |
Starting Current (A) |
0.61/0.57 |
Starting Torque (Nm (kgfcm)) (50/60Hz) |
0.077/0.077 |
Shank Shape |
Gear cutting axis |
No. of Teeth |
7 |
Type of Sign |
Flange mounting |
Rated Current (A) |
0.37/0.33 |

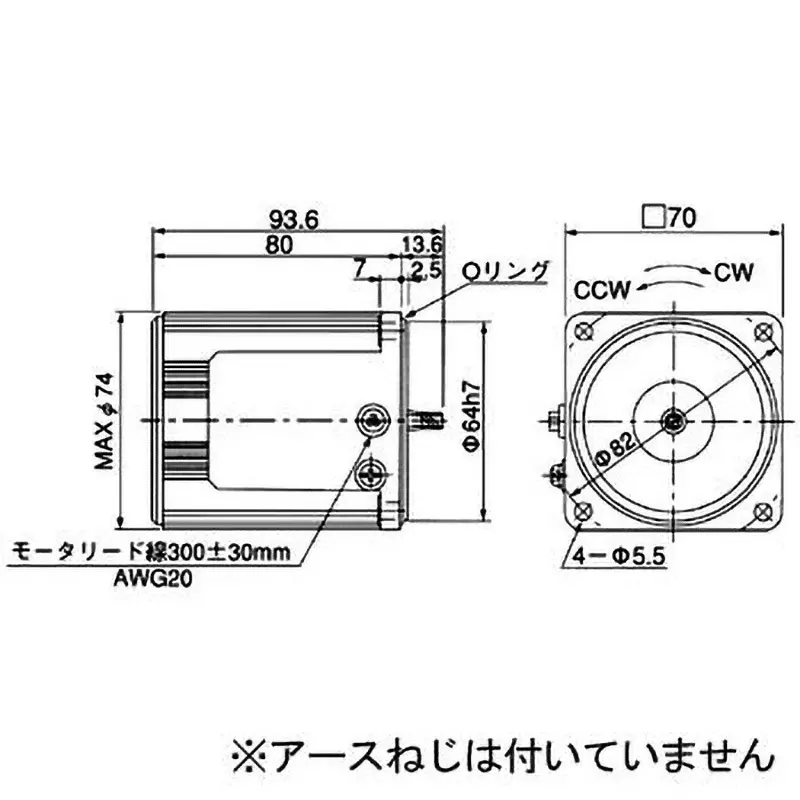

Outer Dimensions, Width W x Height H x Depth D (mm) |
70x93.6x74 |
