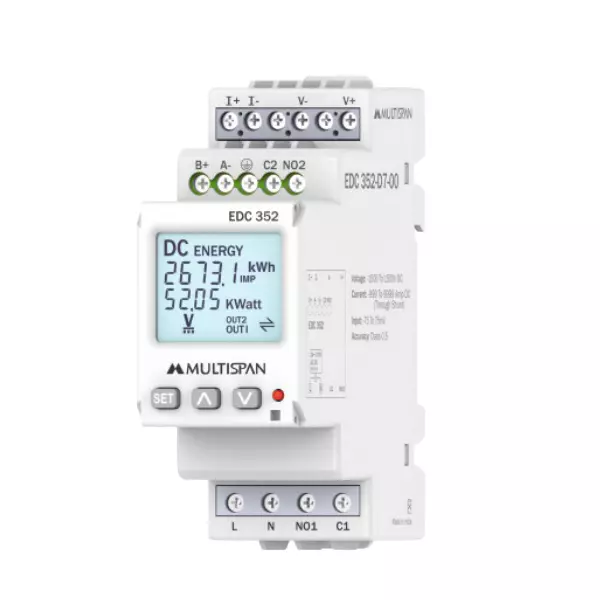

| Model No | EDC-352 (DC-MFM) |
| Mounting Type | DIN Rail Mount |
| Type of Product | DC Multifunction Energy Meter |
| Operating Temperature | 0°C to 55°C |
Model No |
EDC-352 (DC-MFM) |
Mounting Type |
DIN Rail Mount |
Type of Product |
DC Multifunction Energy Meter |
Operating Temperature |
0°C to 55°C |
Accuracy |
Class 0.5 (Standard) |
Current |
Input Current: (-75 mV to +75 mV DC) [Through External Shunt], Shunt Selectable: 1 to 9999 A |
Color |
White |
Voltage |
Direct Voltage: -1500 to 1500V DC |
Relative Humidity |
Up to 95% RH (non-condensing) |
Supply Voltage |
24-270 V AC/DC |
Country of Origin |
India |
Size (H X W X D) |
90x35x63 mm |
Name of Manufacturer/Packer/Importer |
Dhruv Enterprise |
Power Consumption (VA) |
Approx 6 VA @230 V AC (Max.) |
