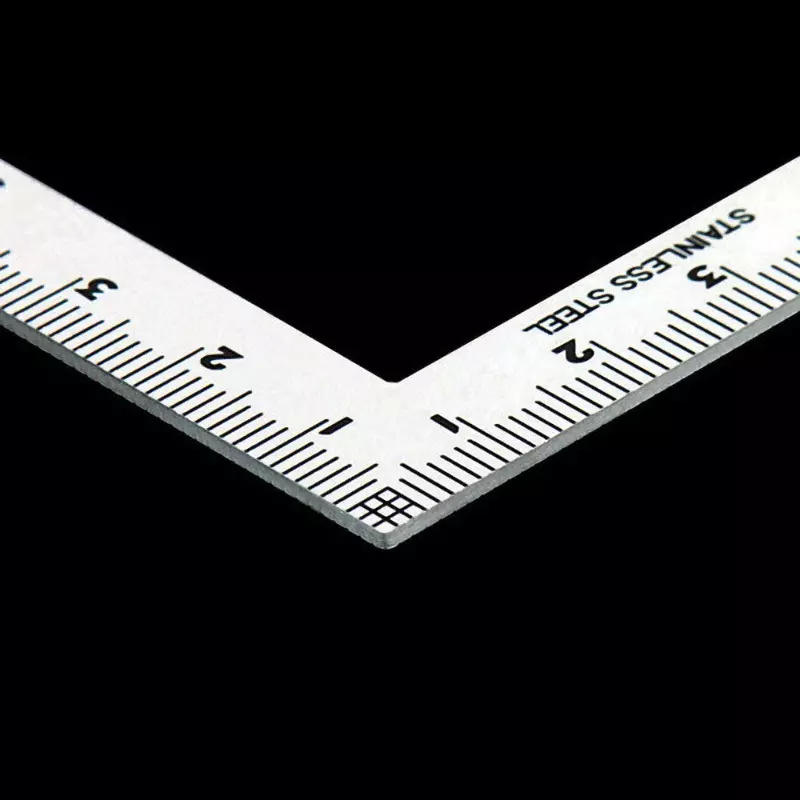

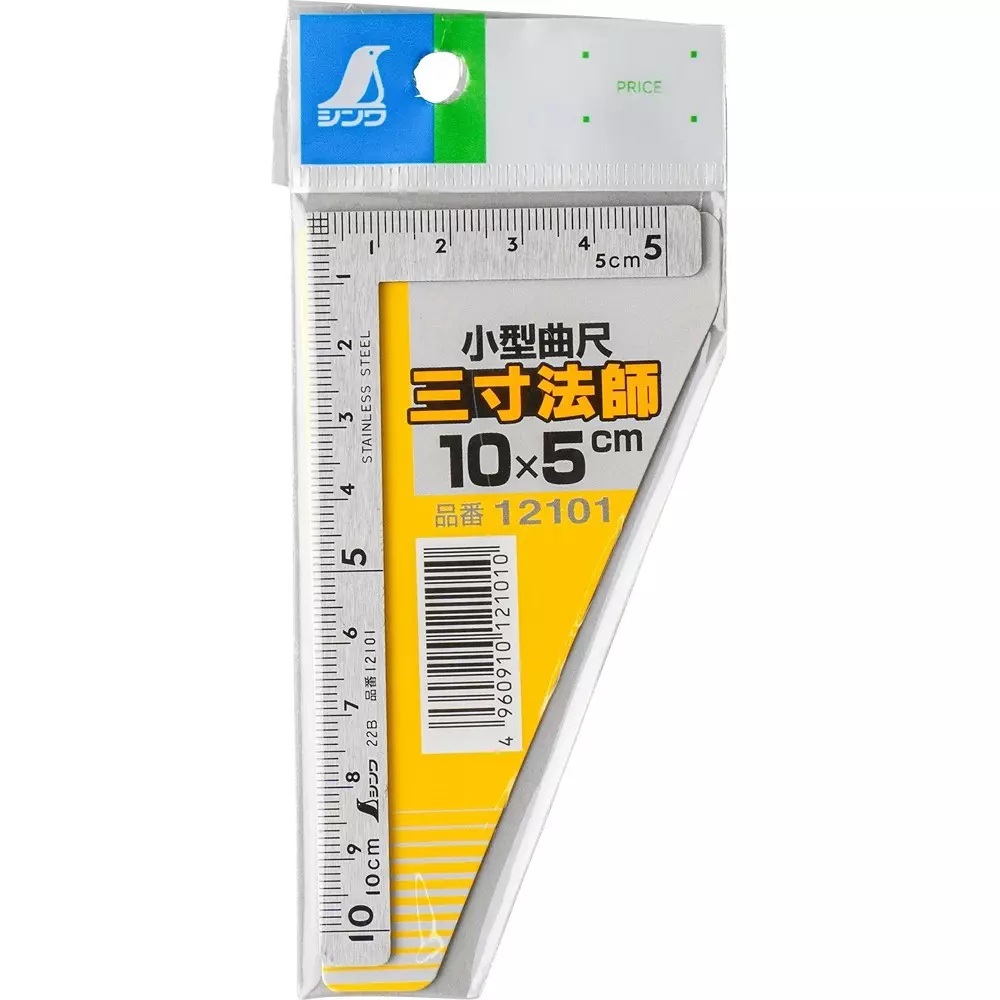

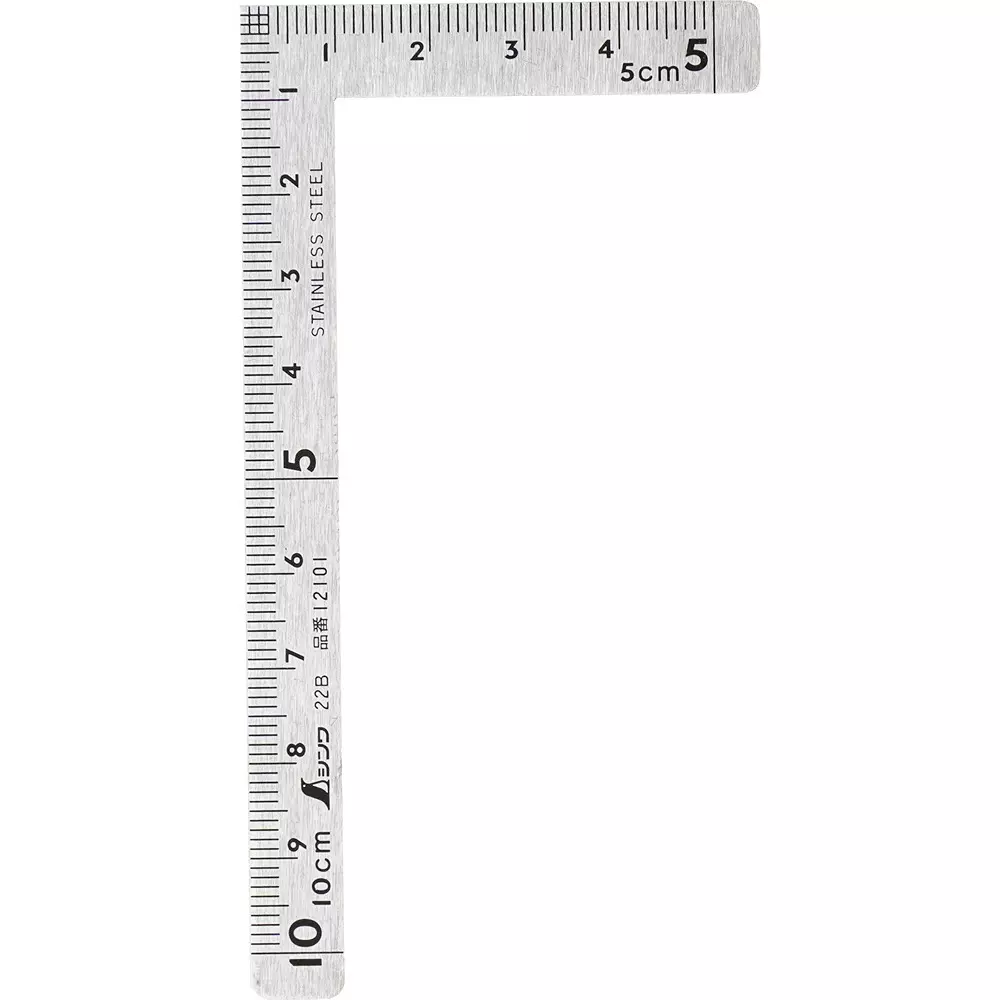

| Type of Product | Carpenter Square |
| Model No | 12101 |
| Material | Stainless steel |
| Width (mm) | 10 |
Type of Product |
Carpenter Square |
Model No |
12101 |
Material |
Stainless steel |
Width (mm) |
10 |
Shape |
Same thickness |
Country of Origin |
CHINA |
Type |
Curved scale Small size (front and back cm scale) |
Thickness (mm) |
1.2 |
Monotaro ID |
7226107 |
Right Angle Accuracy |
0.1 mm or less per 100 mm |
RoHS Directive |
Correspondence |
Mass (g) |
14 |
Scale |
Same on both sides |
Name of Manufacturer/Packer/Importer |
Shinwa Measurement Co., Ltd. |
Import Country |
Direct Import from Japan |
Length Tolerance (mm) |
± 0.2 or less |
Shorter Rule |
55 mm |
Longer Rule |
105 mm |
Measurement Range (cm) |
0 to 10 |
Back Scale on Shorter Rule |
(Outside) 5 cm, (Inside) 1 cm pitch 5 cm |
Back Scale on Longer Rule |
(Outside) 10 cm, (Inside) 1 cm pitch 10 cm |
Front Scale on Shorter Rule |
(Outside) 5 cm |
Front Scale on Longer Rule |
(Outside) 10 cm |
Long Branch x Width x Thickness |
105(55)x10x1.2 mm |
Trusco Part No. |
290-1188 |
