Ships within 25 days
View
View
View
View
| Type of Product | Sunday Carpenter Small Carpenter Ruler |
| Model No | 12442 |
| Material | Iron |
| Shape | Corner shape: same thickness |
Type of Product |
Sunday Carpenter Small Carpenter Ruler |
Model No |
12442 |
Material |
Iron |
Shape |
Corner shape: same thickness |
Country of Origin |
Japan |
Monotaro ID |
81486276 |
Mass (g) |
67 |
Name of Manufacturer/Packer/Importer |
Shinwa Measurement Co., Ltd. |
Dimension (mm) |
330x15x1.3 |
Import Country |
Direct Import from Japan |
Length Tolerance (mm) |
±0.3 |
Back Scale on Shorter Rule |
15cm (outer scale) 5 mm pitch 15cm (inner scale) |
Back Scale on Longer Rule |
30cm (outer scale) 5 mm pitch 30cm (inner scale) |
Front Scale on Shorter Rule |
15cm (outer scale) 5 mm pitch 15cm (inner scale) |
Front Scale on Longer Rule |
30cm (outer scale) 5 mm pitch 30cm (inner scale) |

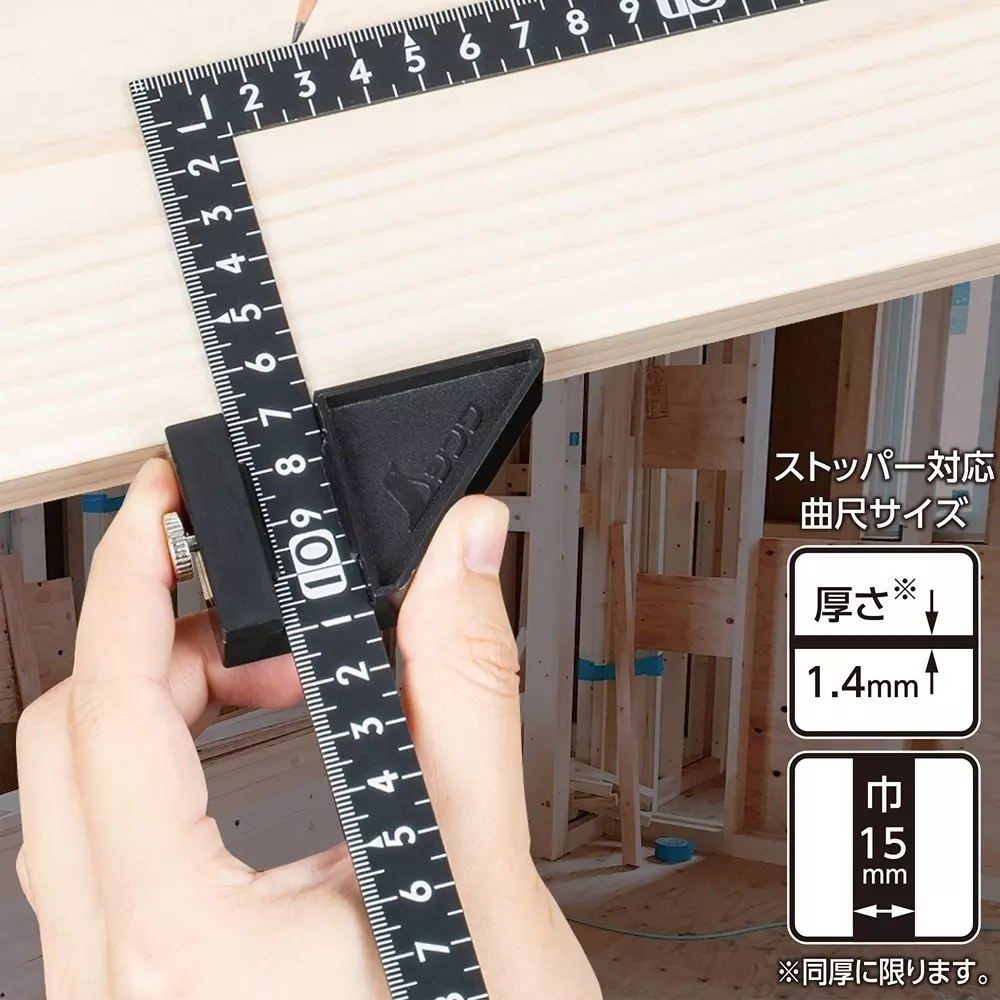

Stopper |
Compatible curved ruler size: thickness within 1.4 mm, width 15 mm, stopper angle accuracy: less than 0.2 mm per 100 mm, material: body (ABS resin), screw (iron), leaf spring (steel), body size: 70 x 40 x 14 mm, weight: 17 g |

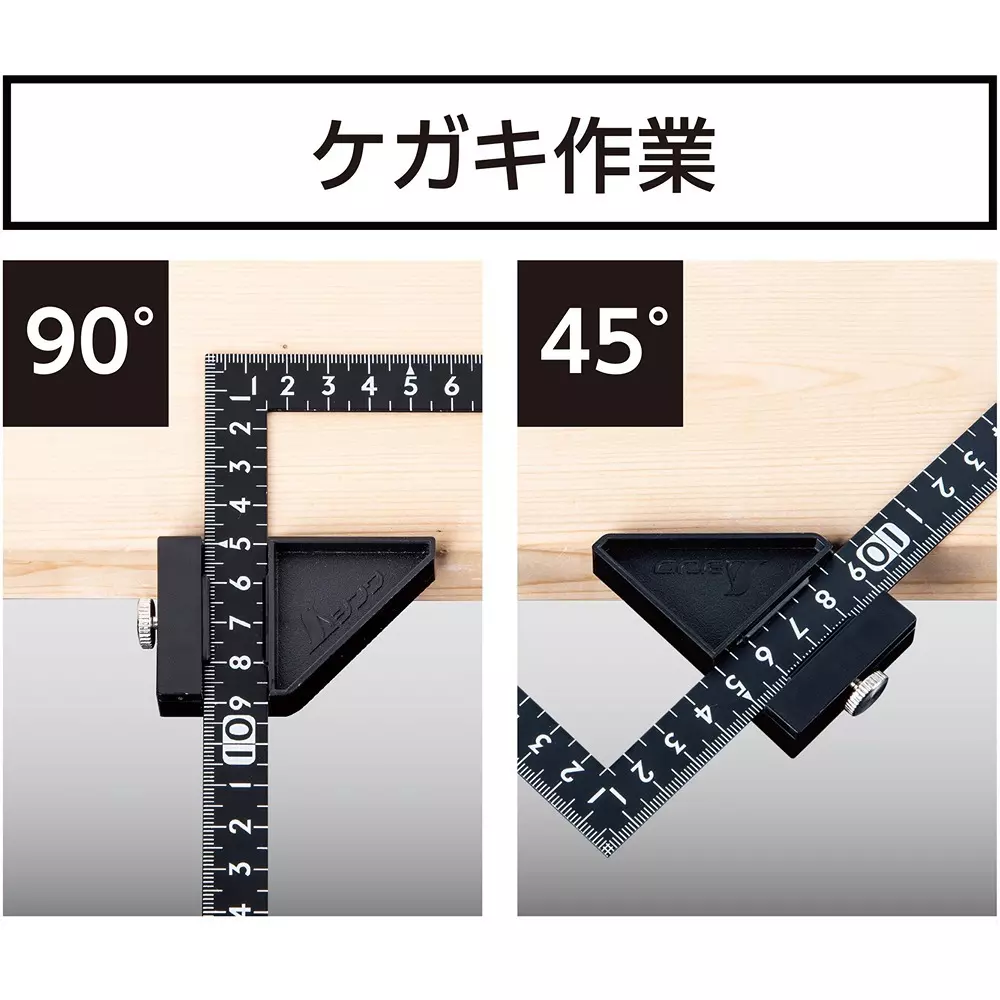

Right Angle |
0.1 mm or less per 100 mm |
