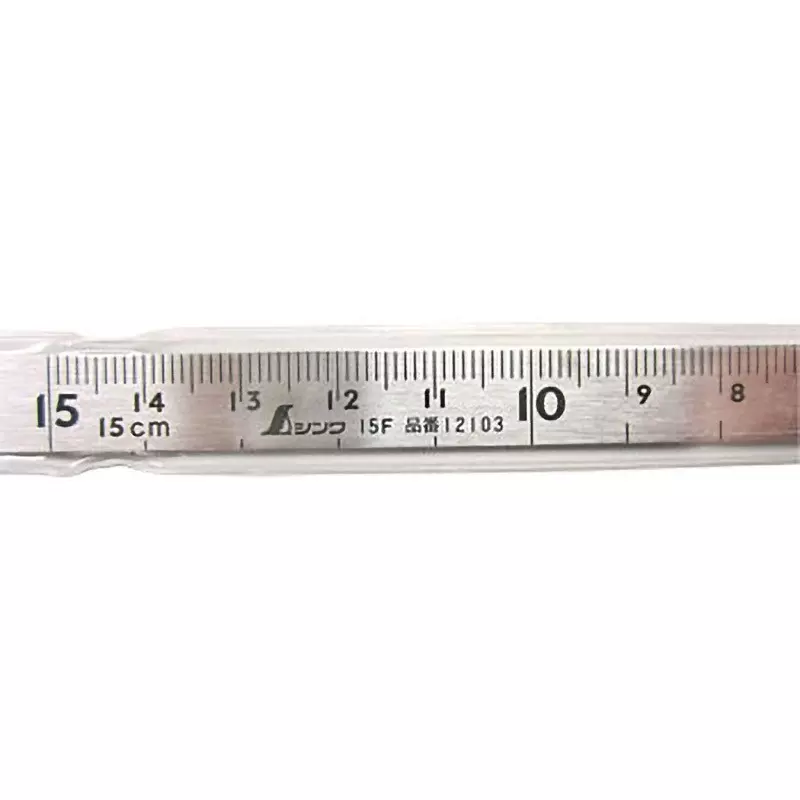

| Type of Product | Curved Small Scale |
| Model No | 12103 |
| Material | Stainless steel |
| Width (mm) | 10 |
Type of Product |
Curved Small Scale |
Model No |
12103 |
Material |
Stainless steel |
Width (mm) |
10 |
Country of Origin |
Japan |
Thickness (mm) |
1.2 |
Monotaro ID |
55810807 |
RoHS Directive |
Correspondence |
Mass (g) |
20 |
Name of Manufacturer/Packer/Importer |
Shinwa Measurement Co., Ltd. |
Import Country |
Direct Import from Japan |
Calibration Certificate |
General calibration |
Length Tolerance (mm) |
±0.2 |
Shorter Rule |
80 mm |
Longer Rule |
160 mm |
Measurement Range (cm) |
15 |
Front Scale on Shorter Rule |
(Outside) 7.5 cm, (Inside) 1 cm pitch 7.5 cm |
Front Scale on Longer Rule |
(Outside) 15 cm, (Inside) 1 cm Pitch 15 cm |
Long Branch x Width x Thickness |
160(80)x10x1.2 mm |
Right Angle |
0.1 mm or less per 100 mm |
