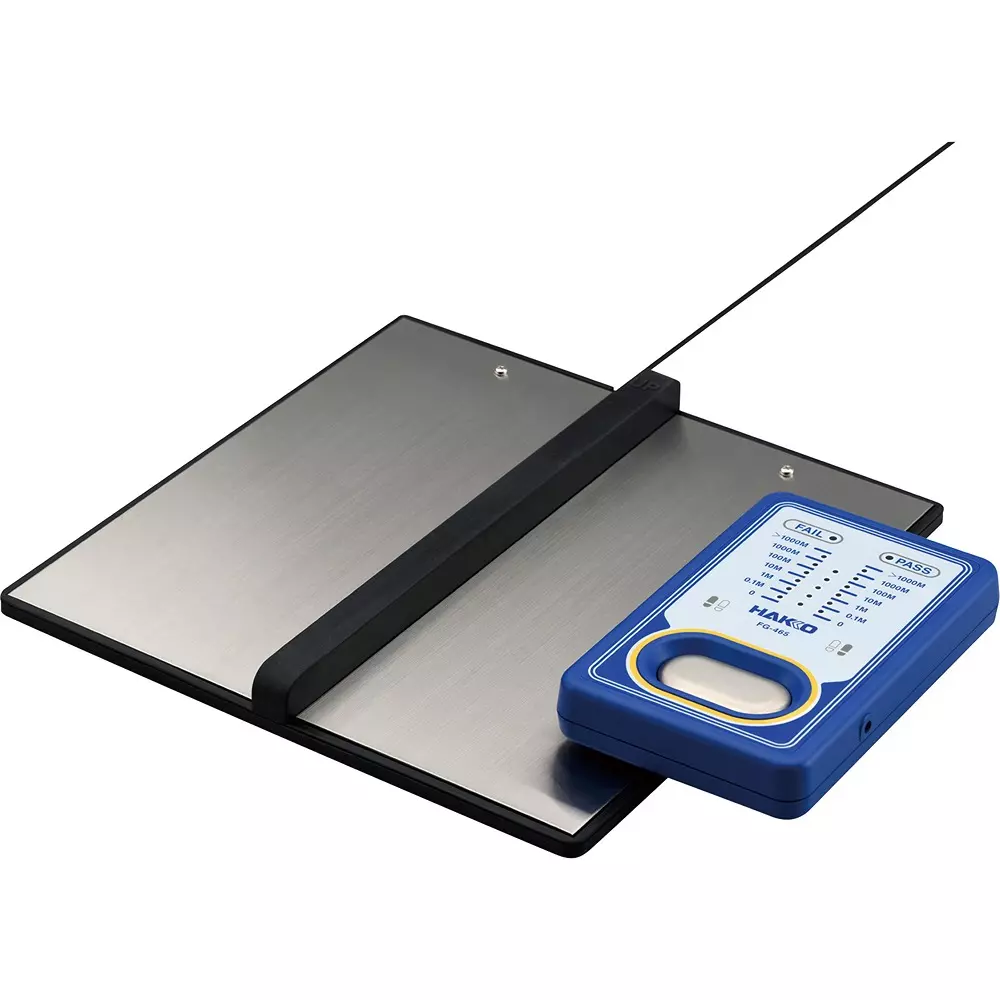

| Type of Product | Antistatic Shoe Tester Fg-465 100 V Flat Plug |
| Model No | FG465-81 |
| Country of Origin | JAPAN |
| Monotaro ID | 57769505 |
Type of Product |
Antistatic Shoe Tester Fg-465 100 V Flat Plug |
Model No |
FG465-81 |
Country of Origin |
JAPAN |
Monotaro ID |
57769505 |
Set Contents |
Test plate, mounting stand, AC adapter, instruction manual, registration card (3-year warranty) |
Import Country |
Direct Import from Japan |
Accuracy |
[Judgment level accuracy] R <0.1 MΩ = ± 5% / 0.1 MΩ ≤ R ≤ 100 MΩ = ± 10% / 100 MΩ <R = ± 8% |
Operating Environment |
Operating temperature / humidity range: 0 to 40 ° C, 80% RH maximum (no condensation) |
Name of Manufacturer/Packer/Importer |
Hakko Co., Ltd. |
Mass (Kg) |
Test plate: 1.9 |
Mass (g) |
Power adapter: 46 |
Cable Length (m) |
1.6 m |
Measurement Voltage (V) |
DC20 |
Power_Adapter |
Rating: DC24V + 200mA |
Measuring_Range |
[Upper limit judgment] 1000MΩ (1x10 <sup>9</sup> Ω)/100MΩ (1x10 <sup>8</sup> Ω)/10MΩ (1x10 <sup>7</sup> Ω) [Lower limit judgment] 1MΩ (1x10 <sup>6</sup> )/0.1MΩ (1x10 <sup>5</sup> Ω) )/R＜0.1MΩ (1x10 <sup>5</sup> Ω) [Conductive judgment] R＜0.1MΩ (1x10 <sup>5</sup> Ω) |
Rating |
DC24V 50mA |
Body Dimensions (W x H x D) (mm) |
120x30x300 |
Outer Dimensions (mm) |
Test plate: 300 x 30 x 300, power adapter: 35 x 25 x 50 |
Mass of Main Unit (kg) |
0.55 (with mounting base) |
Environmental Conditions to Use |
Applicable rated pollution degree 2 (according to IEC / UL 61010-1) |
