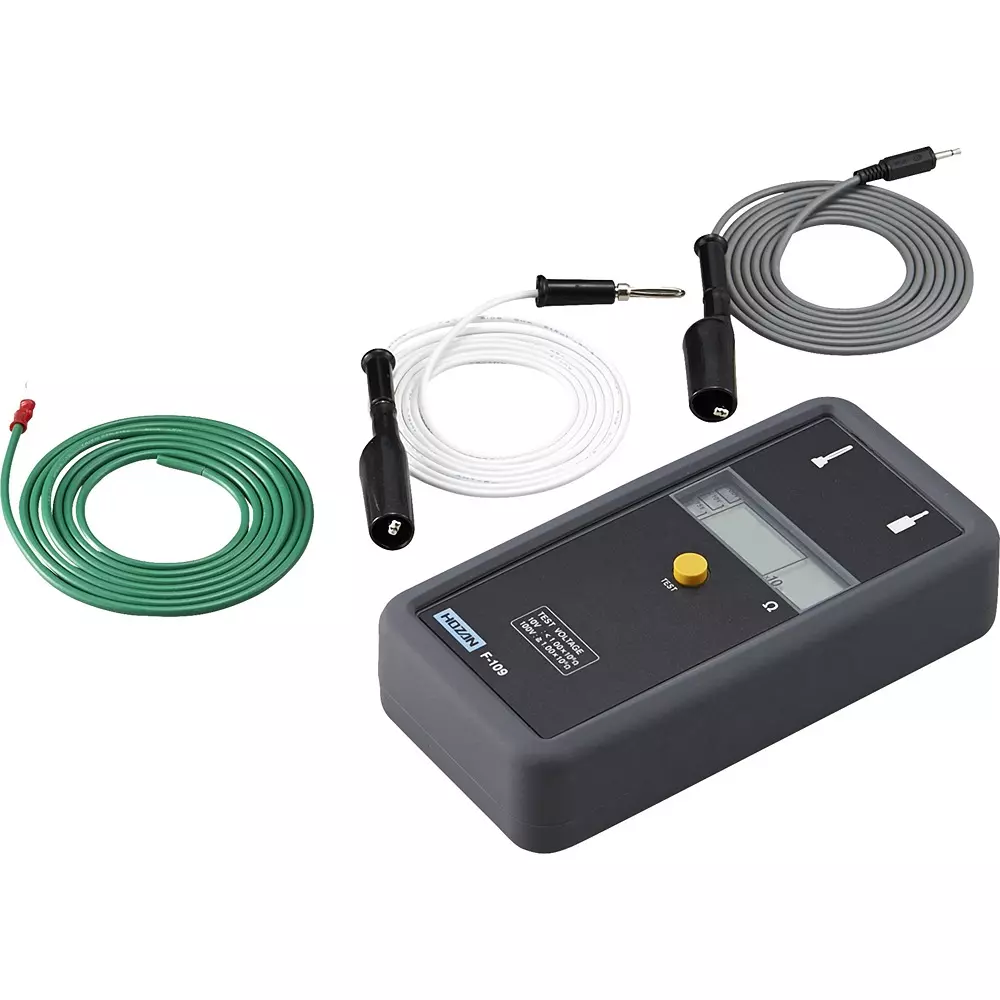

| Type of Product | Surface Resistance Meter Without Electrode |
| Model No | F-109-1 |
| Power Supply | Alkaline battery (6LR61 / 6LF22) x 1 (included) |
| Country of Origin | JAPAN |
Type of Product |
Surface Resistance Meter Without Electrode |
Model No |
F-109-1 |
Power Supply |
Alkaline battery (6LR61 / 6LF22) x 1 (included) |
Country of Origin |
JAPAN |
Monotaro ID |
57318887 |
Trusco Part No. |
827-9574 |
Set Contents |
2 alligator clips, 2 connection cords (1.5m), ground wire |
Import Country |
Direct Import from Japan |
Accuracy |
± 10% (depending on operating environment) |
Battery Life |
1000 times or more (35 seconds off mode) |
Pack of |
1 Pcs |
Name of Manufacturer/Packer/Importer |
Hozan Co., Ltd. |
Height (mm) |
40 |
Length (mm) |
170 |
Width (mm) |
85 |
Mass (g) |
300 |
Measuring_Range |
9 x 10 <sup>2</sup> Ω or more, 2 x 10 <sup>12</sup> Ω or less |
Specifications |
With auto power off function |
Input Voltage (V) |
10V when the object is less than 1 x 10 <sup>6</sup> Ω, the object is 1 x 10 <sup>6</sup> Ω or more when 100V |
