| Type of Product | Surface Resistance Meter |
| Model No | F-110 |
| Power Supply | Built-in rechargeable battery (nickel-metal hydride battery) |
| Country of Origin | Japan |
Type of Product |
Surface Resistance Meter |
Model No |
F-110 |
Power Supply |
Built-in rechargeable battery (nickel-metal hydride battery) |
Country of Origin |
Japan |
Part No |
64-5104-84 |
Monotaro ID |
77486238 |

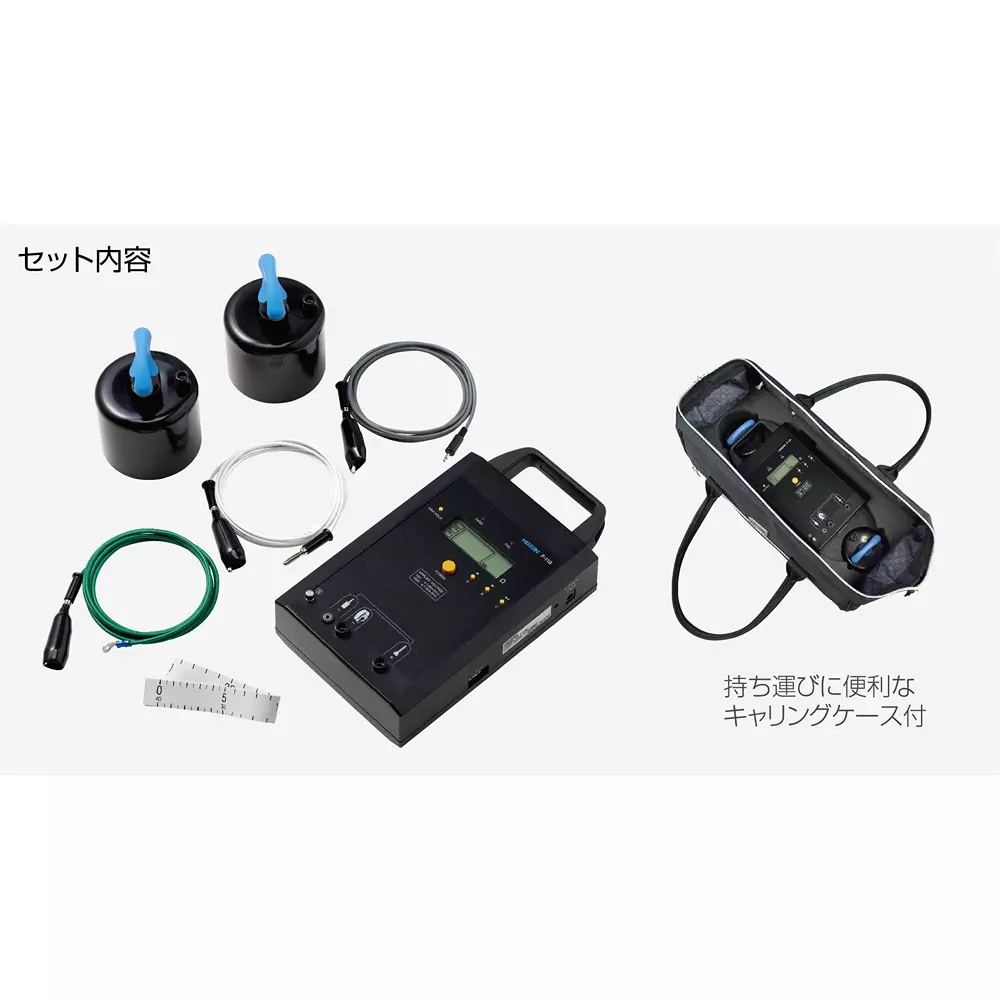

Included Components |
2 electrodes, 3 connection cords (2m), 3 alligator clips, cloth scale (40cm), SD card, AC adapter (for charging), carrying case |
Import Country |
Direct Import from Japan |
Accuracy |
± 10% (However, ± 20% for 1.00 x 10 ^ 11Ω or more) * Reference RCJS-5-1 Equipment used in the requirement acceptance test Accuracy: ± 20% |
Pack of |
1 Pcs |
Name of Manufacturer/Packer/Importer |
Hozan Co., Ltd. |
Mass (Kg) |
6.4 [Main body: 715 g, Electrode: 2.3 kg (1 piece)] |
Measuring_Range |
9.00 x 10 ^ 2Ω or more, 2.00 x 10 ^ 12Ω or less |
Input Voltage (V) |
10 (fixed) / 100 (fixed) / 10/100 (automatic switching) (automatic switching: when the object to be measured is 1.00 x 10 ^ 6Ω or more: 100 / when the object to be measured is less than 1.00 x 10 ^ 6Ω: 10 ) |

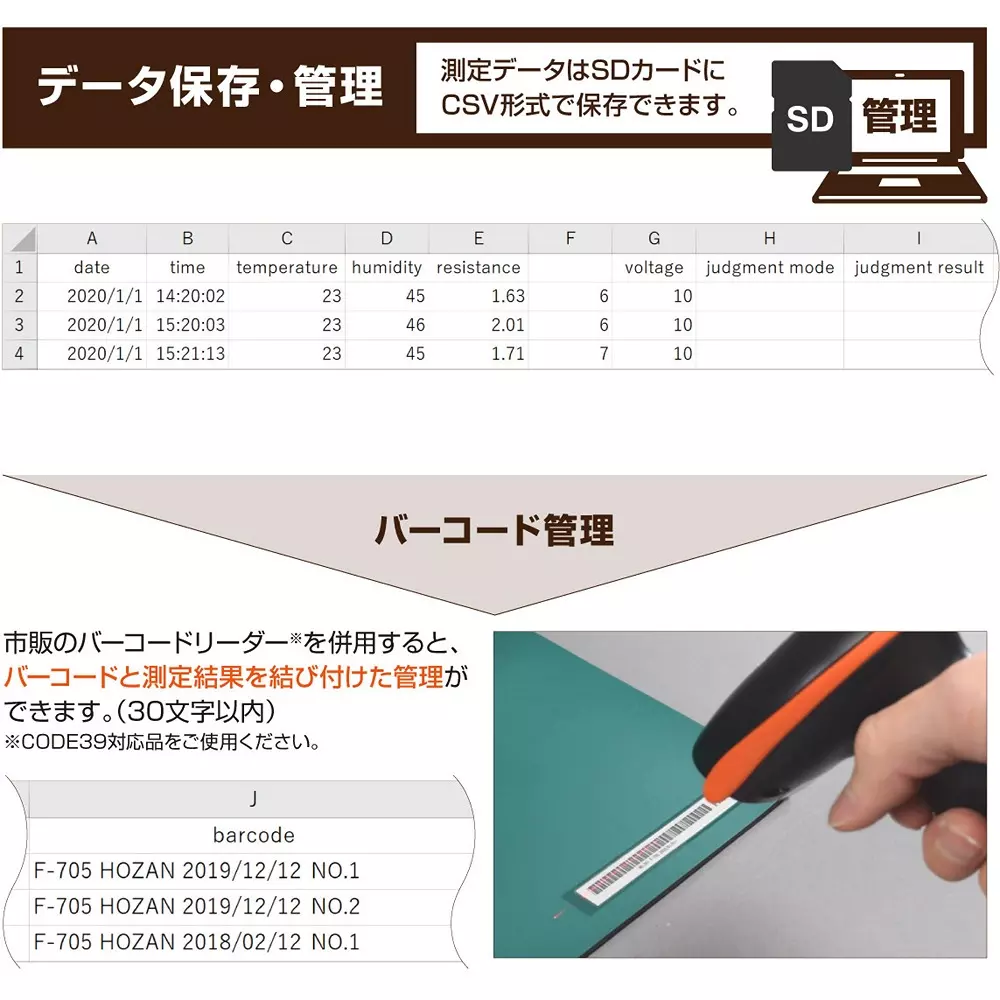

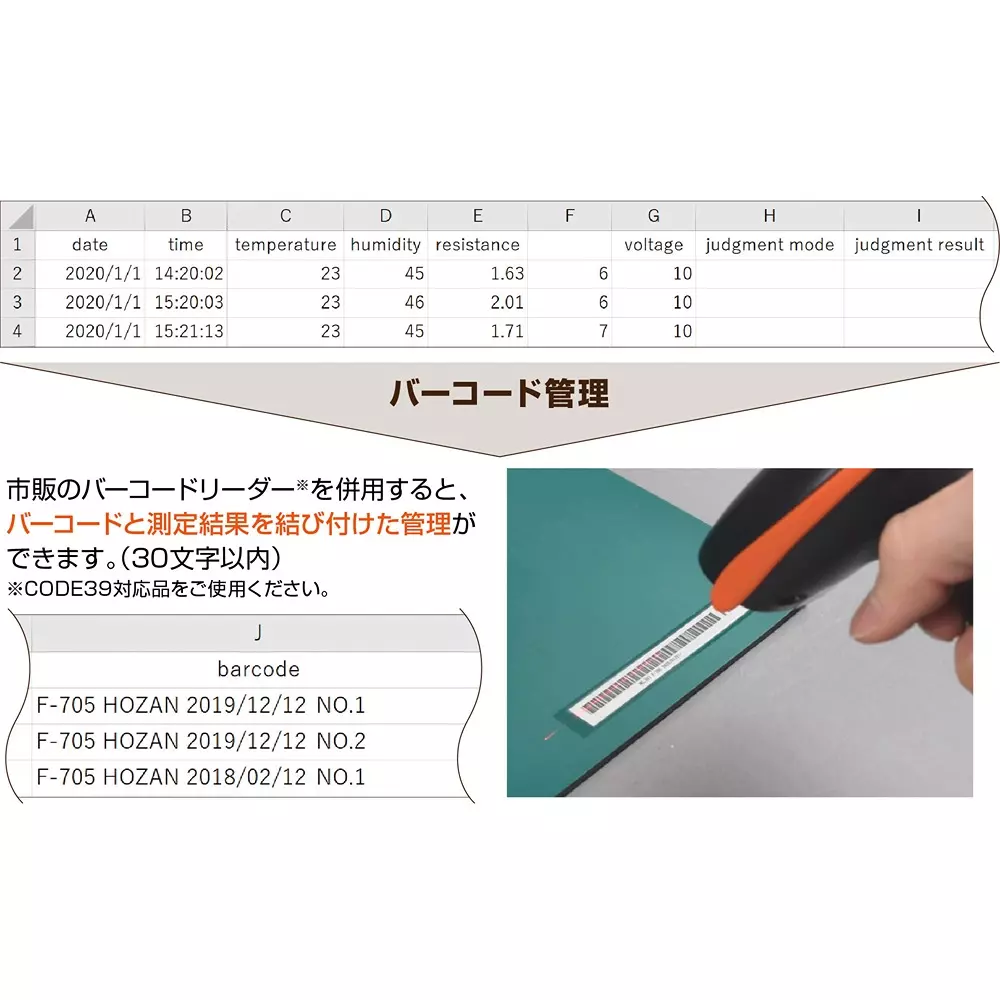

Recording Media |
SD / SDHC / SDXC + memory card (up to 128GB) |
Outer Dimensions, Width W x Height H x Depth D (mm) |
Body: 135 x 68 x 236 (excluding protrusions) / Carrying case: 400 x 200 x 200 |
Diameter x Length (Φmm x mm) |
Electrode: 79 x 110 (conductive pad part 63.5Φ) |
Continuous Operating Time (minutes) |
About 90 |
