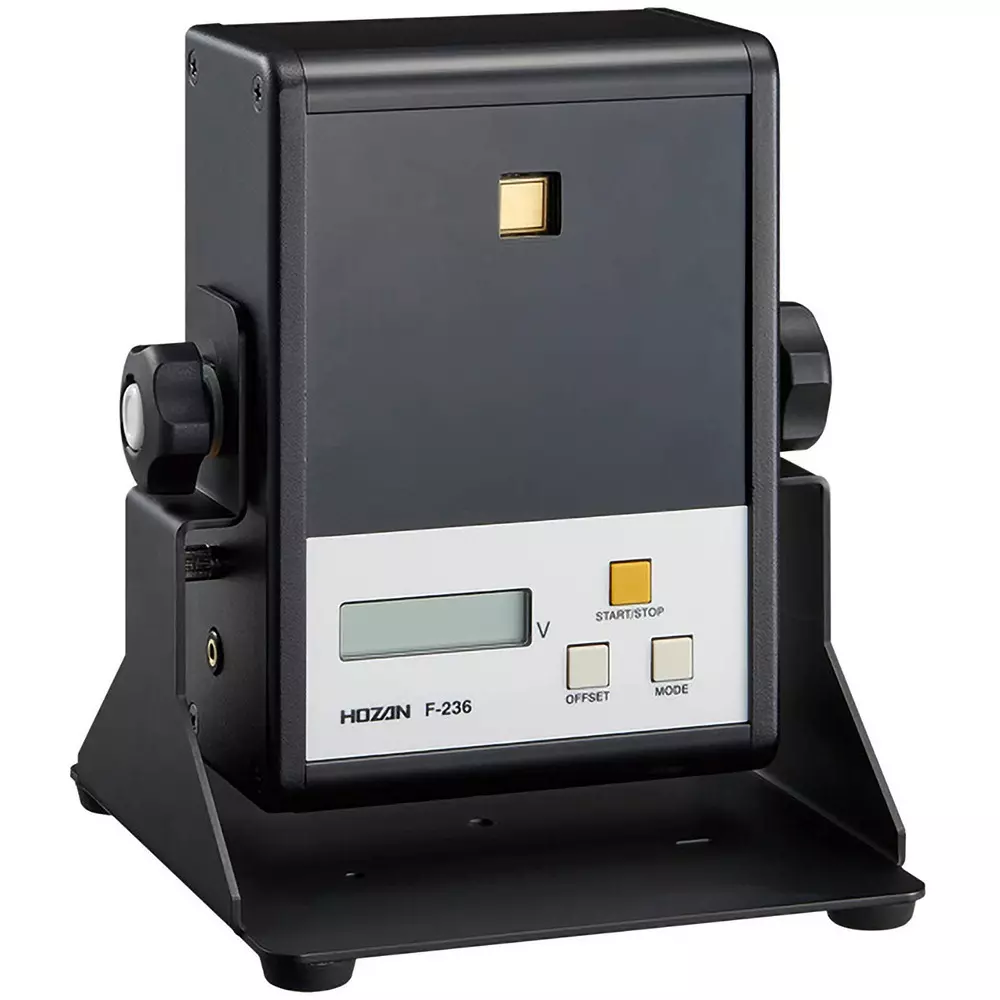

| Type of Product | Static Checker |
| Model No | F-236-TA |
| Country of Origin | Japan |
| Monotaro ID | 64326405 |
Type of Product |
Static Checker |
Model No |
F-236-TA |
Country of Origin |
Japan |
Monotaro ID |
64326405 |
Included Components |
AC adapter, ground wire (2m), USB cable (1.8m), crocodile clip included |
Import Country |
Direct Import from Japan |
Accuracy |
± 10% (when measuring ± 1000V at the reference distance) |
Pack of |
1 Pcs |
Name of Manufacturer/Packer/Importer |
Hozan Co., Ltd. |
Measuring_Range |
0 to ±1999V |
Rated Voltage (V) |
DC12 (with AC adapter) |
Metric (mm) |

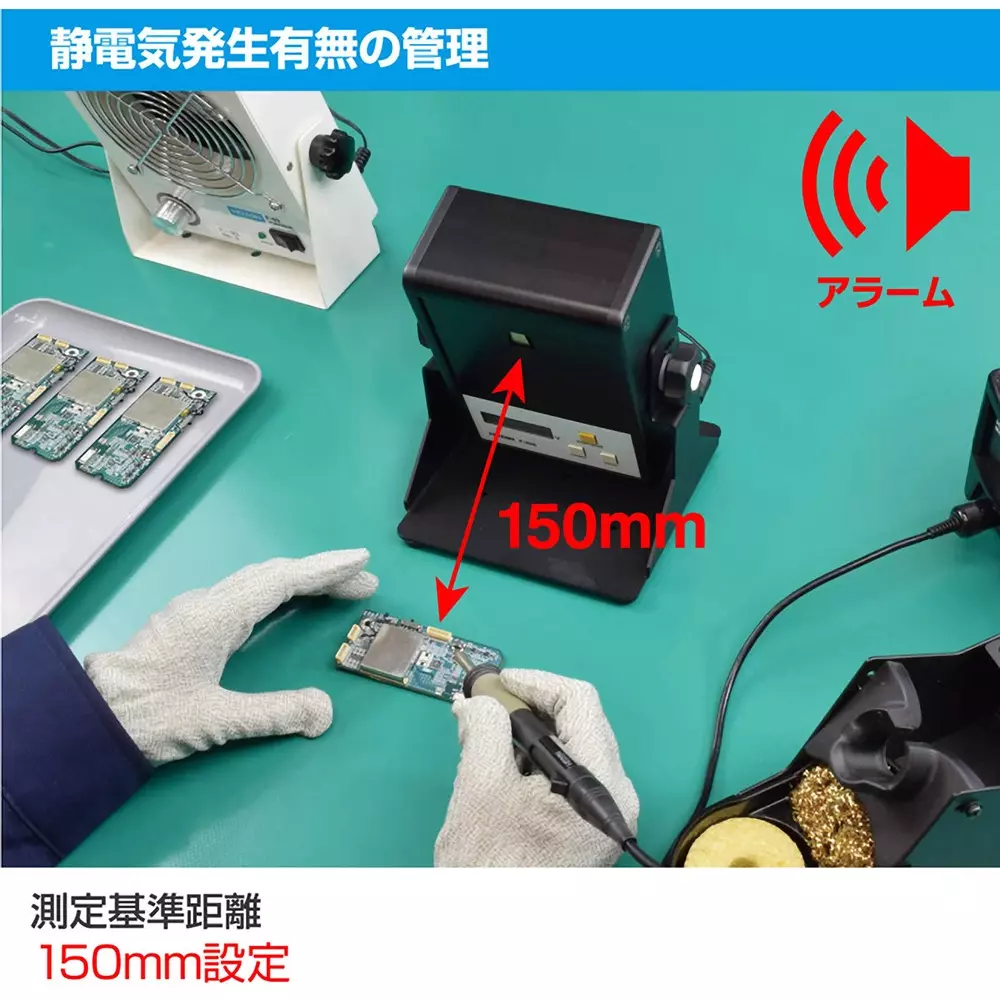

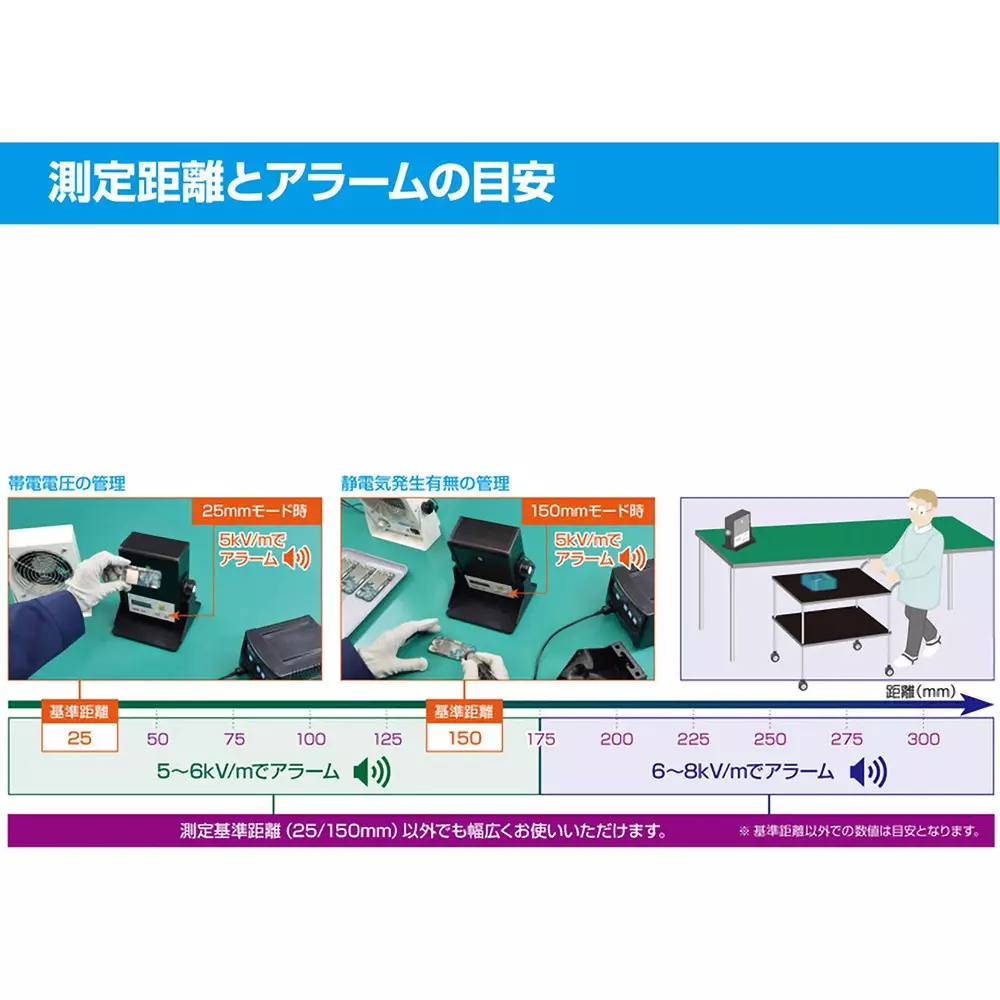

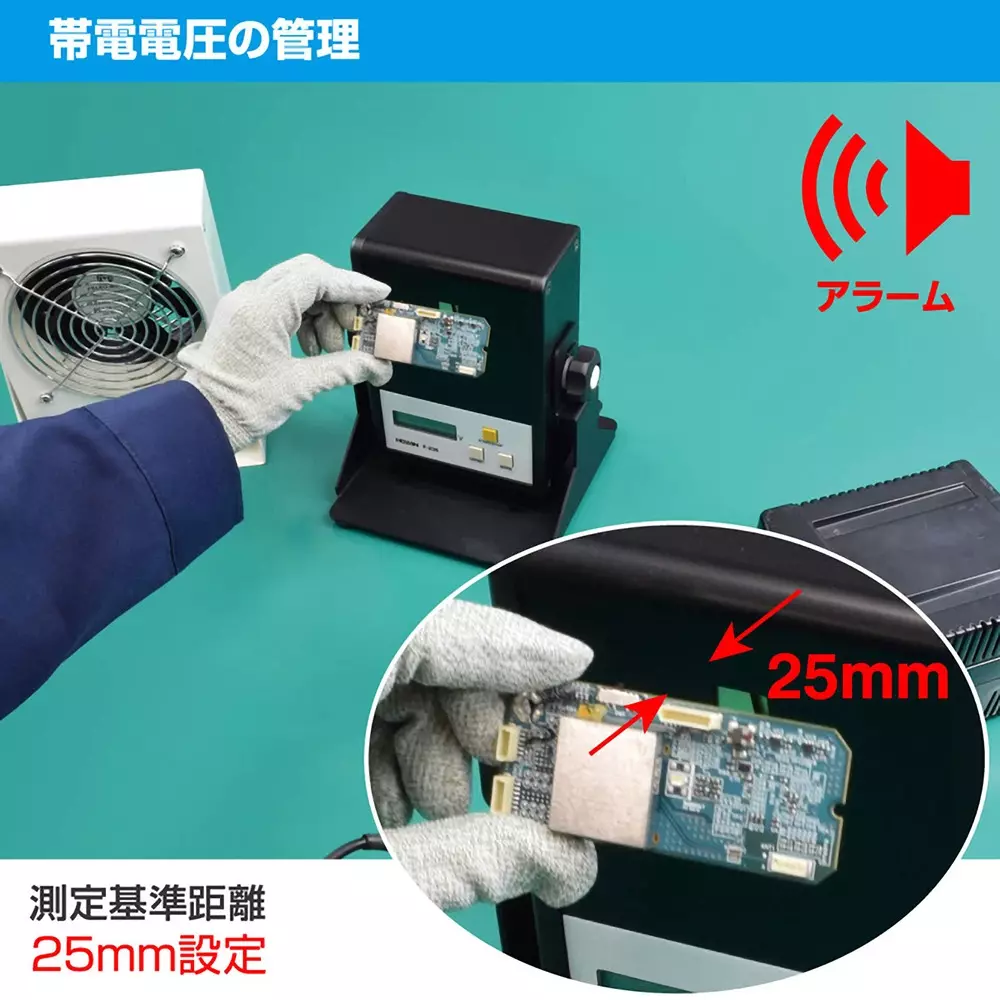

25mm / 150mm (from sensor to measured object) / 125V or more when the reference distance is 25mm (25mm mode) / 750V or more when the reference distance is 150mm (150mm mode) (Charging standard of the measuring object: Ionizer test (JIS C 61340-) 4-7) |
Power Consumption (W) |
2.1 |
Resolution |
2V (reference distance: 25mm) / 4V (reference distance: 150mm) |
Sample Rate |
0.1 seconds (stored data is in 1 second units) |
