HOZAN Surface Resistance Meter ESD Tester with Judgment Function, F-110-TA

Name: HOZAN Surface Resistance Meter ESD Tester with Judgment Function, F-110-TA
Brand: HOZAN
SKU: SAF.ESD.839759604
Price: 259599 INR
Availability: InStock

Visit the HOZAN Store

EMI starts at ₹23065/month. No Cost EMI available.

Available offers

Get Flat 10% off on your First Orders above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 3% off on First Order above ₹3,000

View

Features

Type of Product	Surface Resistance Meter
Model No	F-110-TA
Power Supply	Built-in rechargeable battery (nickel-metal hydride battery)
Country of Origin	Japan

More HOZAN ESD Rubber Mats & Accessories products More ESD Rubber Mats & Accessories products

100% Original Products

Secure Payments

100% Buyer Protection

Top Brands

specifications

Type of Product	Surface Resistance Meter
Model No	F-110-TA
Power Supply	Built-in rechargeable battery (nickel-metal hydride battery)
Country of Origin	Japan
Monotaro ID	63334977

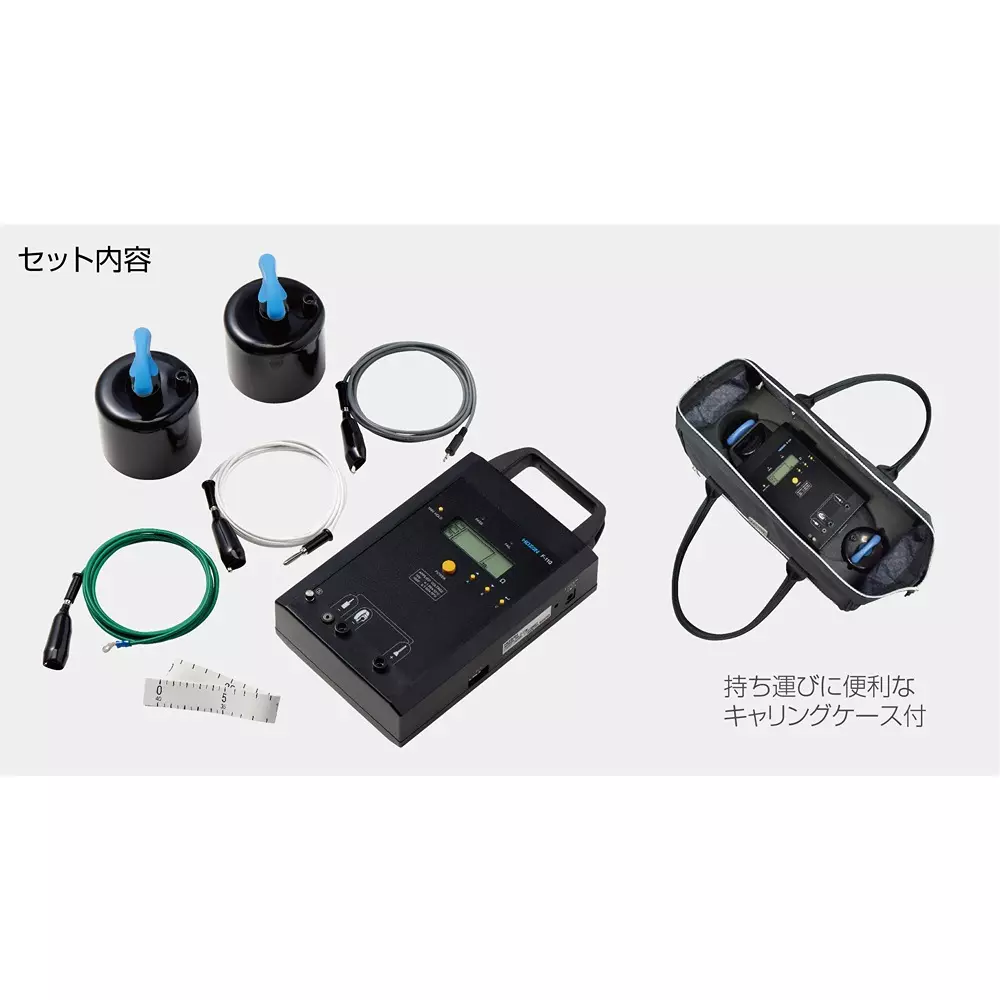

Included Components	With 2 electrodes, 3 connection cords (2m), 3 alligator clips, cloth scale (40cm), SD card, AC adapter (for charging), carrying case
Import Country	Direct Import from Japan
Accuracy	± 10% (However, ± 20% for 1.00 x 10 11 Ω and above)
Pack of	1 Pcs
Name of Manufacturer/Packer/Importer	Hozan Co., Ltd.
Mass (Kg)	6.4 (Main body: 715 g, Electrode: 2.3 kg (1 piece))
Measuring_Range	9.00 x 10² Ω or more, 2.00 x 10 12 Ω or less
Outer Dimensions (mm)	Electrode: 79Φ x 110 (Conductive pad part: 63.5Φ)

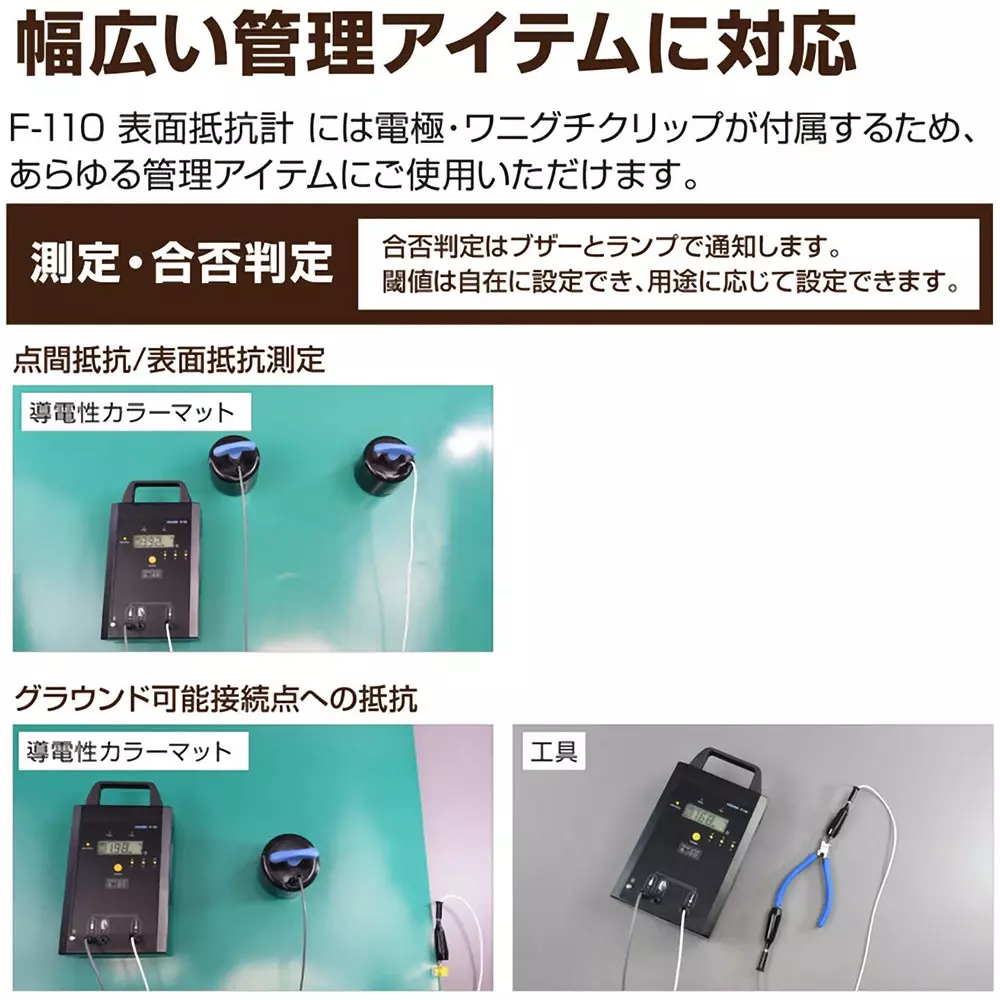

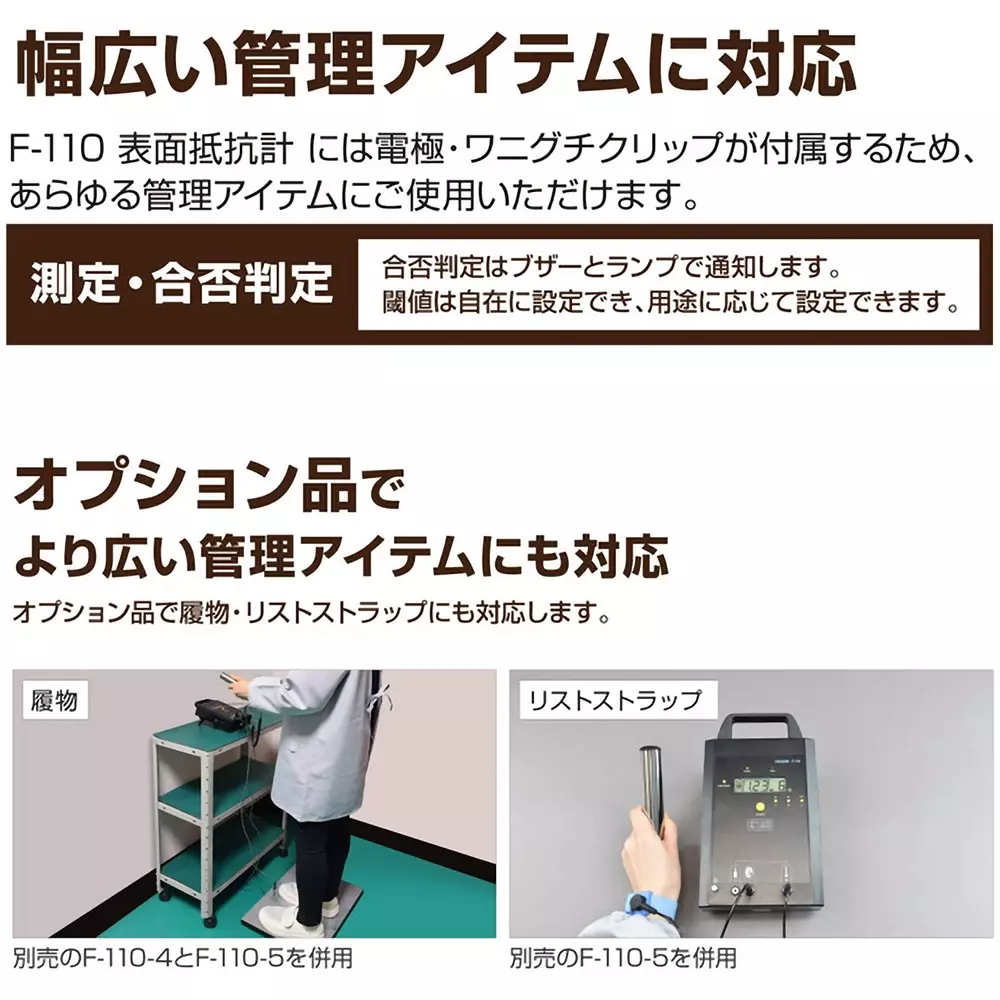

Specifications	[Judgment function range] PASS lamp lights when the threshold is within the PASS range (buzzer sound), FAIL lamp lights when the threshold is out of the range (no buzzer sound), threshold fixed 1 (wrist strap): PASS + 7.50 x 10 5 Ω ≤ R ≤3.49 x 10 7 Ω, fixed threshold 2 (footwear): PASS + 1.00 x 10 5 Ω ≤R ≤ 9.99 x 10 7 Ω, free threshold (up to 3 thresholds can be saved): PASS + (9.00 x 10² Ω) ~ 9.99 x 10 10 Ω) ≤ R ≤ (9.00 x 10² Ω ~ 9.99 x 10 10 Ω)
Input Voltage (V)	10V (fixed), 100V (fixed), 10V / 100V (automatic switching) (automatic switching: 100V (when the object is 1.00 x 10 6 Ω or more), 10V (when the object is less than 1.00 x 10 6 Ω)) )

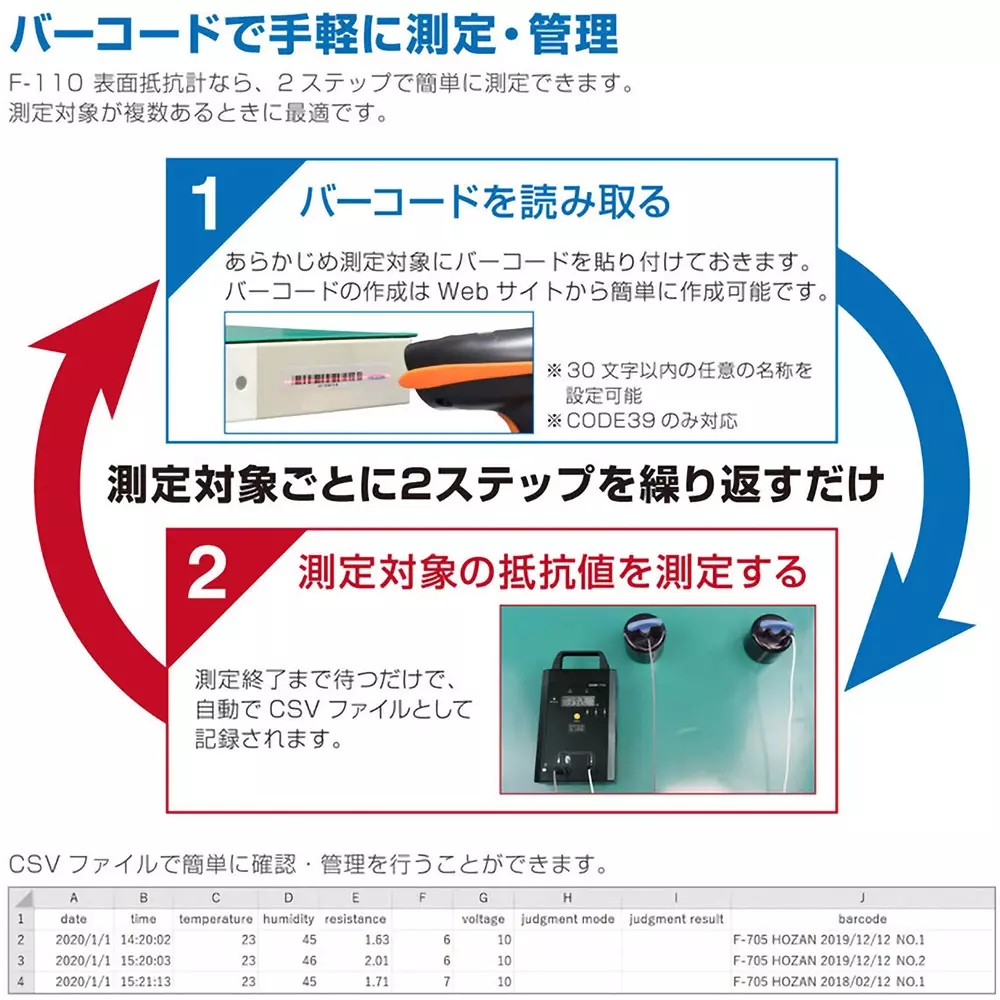

Recording Media	SD / SDHC / SDXC + memory card (up to 128GB)
Continuous Operating Time	About 90 minutes
Outer Dimensions, Width W x Height H x Depth D (mm)	Body: 135 x 68 x 236 (excluding protrusions), Carrying case: 400 x 200 x 200
