| Type of Product | Unmanaged Industrial Ethernet Switch Wide temperature range: EKI-5500 series |
| Type | Unmanaged |
| Interface | Ethernet / fiber optic |
| Model No | EKI-5525SI-ST-AE |
Type of Product |
Unmanaged Industrial Ethernet Switch Wide temperature range: EKI-5500 series |
Type |
Unmanaged |
Interface |
Ethernet / fiber optic |
Model No |
EKI-5525SI-ST-AE |
Specifications |
[Redundancy] Power input DC12-48V and fail contact installed |
Input Range |
Wide range (DC8.4-52.8V) |
Input Power |
DC external power supply |
No. of Port |
5 ports |
Country of Origin |
Japan |
Protection |
EMS level 3 that can be used in outdoor environments |
Transmission Speed |
10/100BASE |
Operating Temperature Range |
-40 to 75℃ |
Name of Manufacturer/Packer/Importer |
Advantech Co., Ltd. |
Width (mm) |
27 |
Communication Protocol |

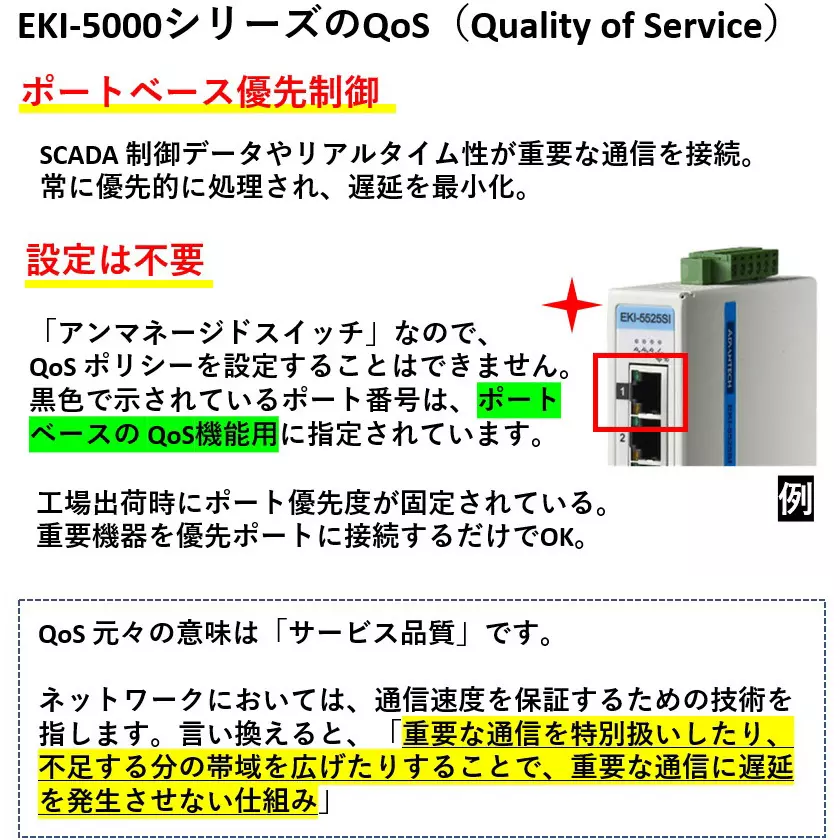

[Network] Priority data transmission via QoS fixed port / Supports jumbo frames (maximum 9, 216 Bytes) |
Function |
[Network management] Modbus / TCP and SNMP installed, [Notification] Loop detection function |
Import Country |
Direct Import from Japan |
Monotaro ID |
70433564 |
Optical Fiber |
100FX (single mode, ST connector)x1 |
Network Type |
IEEE 802.3az Energy-saving Ethernet (EEE) compatible |
Operating Ambient Temperature |
-40 to 75℃ |
Thickness |
84 mm |
Various Certifications |
CUL/TUV/CCC |
Type of Terminal Fitting |
DIN rail/wall |
Connector |
RJ45x4 |
Length (mm) |
120 |
