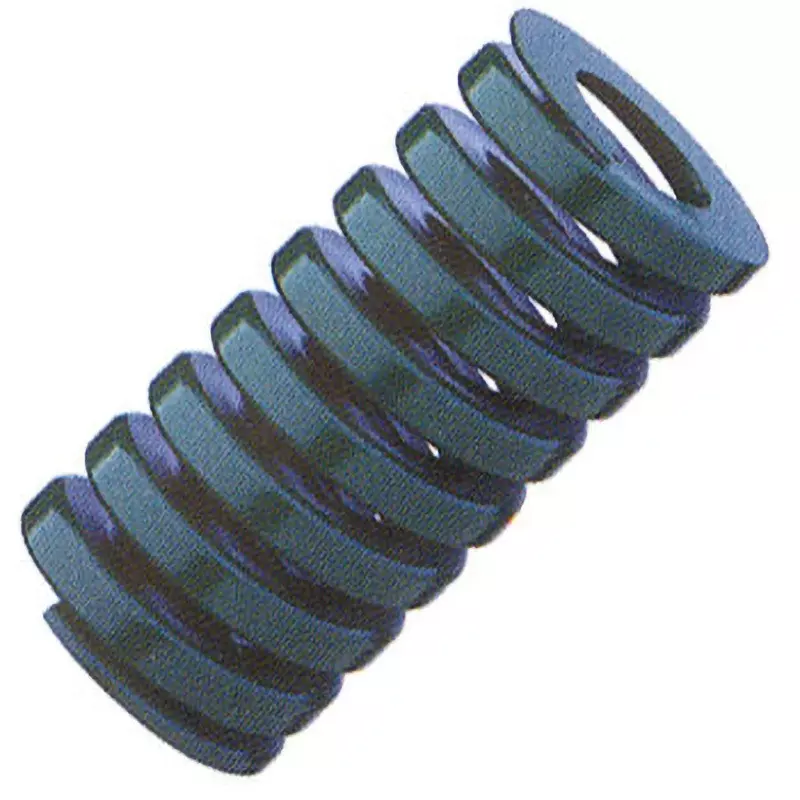

| Type of Product | Strong Spring |
| Model No | TH40×40 |
| Color | Green |
| Material | Silicon chrome steel for spring |
Type of Product |
Strong Spring |
Model No |
TH40×40 |
Color |
Green |
Material |
Silicon chrome steel for spring |
Country of Origin |
Japan |
Spring Type |
Strong spring |
Name of Manufacturer/Packer/Importer |
Tokyo Spring Manufacturing Co., Ltd. |
Type |
Light Load |
Import Country |
Direct Import from Japan |
Load (300000 times, N [kgf]) |
4710[480.3] |
Spring Constant (N/mm) |
490.74 |
Deflection (300,000 times, mm) |
9.6 |
Deflection (1 million times, mm) |
7.7 |
Monotaro ID |
7049682 |
Outer Diameter (Φmm) |
40 |
Operating Temperature Range |
150 to -30℃ |
Load (1 million times, N [kgf]) |
3770[384.4] |
Free Length (mm) |
40 |
Inner Diameter |
20 mm |
Load (500000 times, N [kgf]) |
4240[432.4] |
Deflection (500,000 times, mm) |
8.6 |
