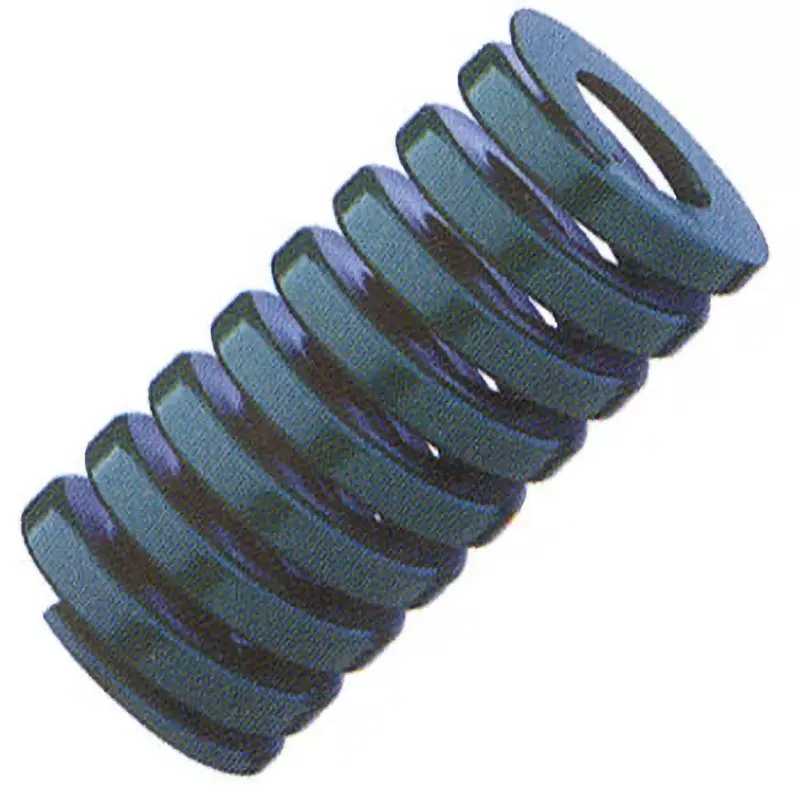

| Type of Product | Strong Spring |
| Model No | TH60×90 |
| Color | Green |
| Material | Silicon chrome steel for spring |
Type of Product |
Strong Spring |
Model No |
TH60×90 |
Color |
Green |
Material |
Silicon chrome steel for spring |
Country of Origin |
Japan |
Spring Type |
Strong spring |
Name of Manufacturer/Packer/Importer |
Tokyo Spring Manufacturing Co., Ltd. |
Type |
Light Load |
Import Country |
Direct Import from Japan |
Load (300000 times, N [kgf]) |
10590[1080] |
Spring Constant (N/mm) |
490.74 |
Deflection (300,000 times, mm) |
21.6 |
Deflection (1 million times, mm) |
17.3 |
Monotaro ID |
7050084 |
Outer Diameter (Φmm) |
60 |
Operating Temperature Range |
150 to -30℃ |
Load (1 million times, N [kgf]) |
8470[863.7] |
Free Length (mm) |
90 |
Inner Diameter |
30 mm |
Load (500000 times, N [kgf]) |
9540[972.8] |
Deflection (500,000 times, mm) |
19.399999999999999 |
Trusco Part No. |
443-3904 |
