Ships within 25 days
View
View
View
View

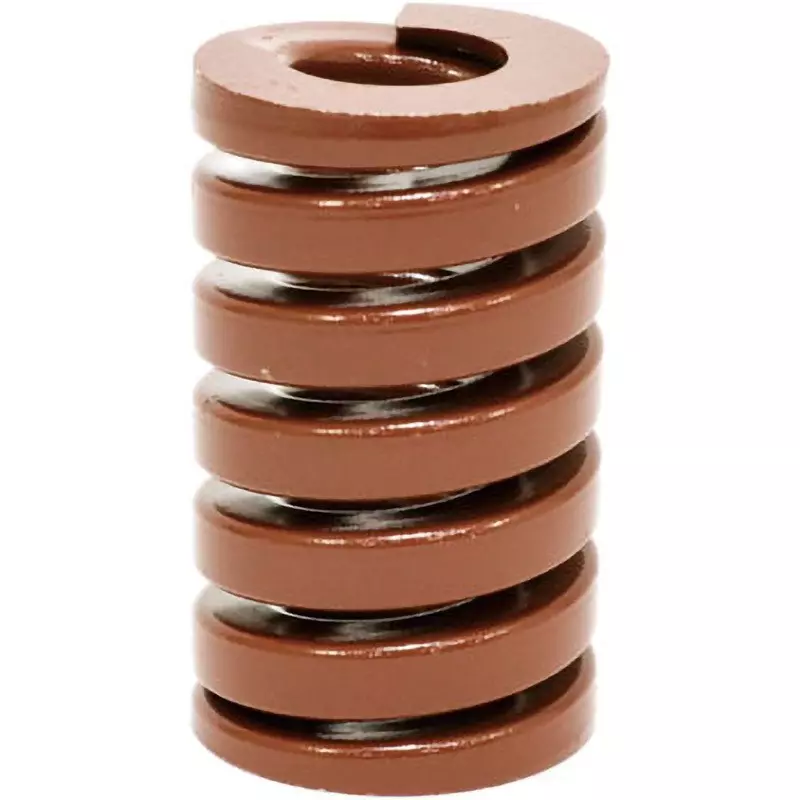

| Type of Product | Strong Spring |
| Model No | TB30×50 |
| Color | Brown |
| Material | Silicon chrome steel for spring |
Type of Product |
Strong Spring |
Model No |
TB30×50 |
Color |
Brown |
Material |
Silicon chrome steel for spring |
Country of Origin |
Japan |
Spring Type |
Strong spring |
Name of Manufacturer/Packer/Importer |
Tokyo Spring Manufacturing Co., Ltd. |
Type |
Light Load |
Import Country |
Direct Import from Japan |
Load (300000 times, N [kgf]) |
3530[360.0] |
Spring Constant (N/mm) |
353.33 |
Deflection (300,000 times, mm) |
10 |
Deflection (1 million times, mm) |
8 |
Monotaro ID |
7051791 |
Outer Diameter (Φmm) |
30 |
Operating Temperature Range |
150 to -30℃ |
Load (1 million times, N [kgf]) |
2820[287.6] |
Free Length (mm) |
50 |
Inner Diameter |
15 mm |
Load (500000 times, N [kgf]) |
3180[324.3] |
Deflection (500,000 times, mm) |
9 |
Trusco Part No. |
443-0689 |
