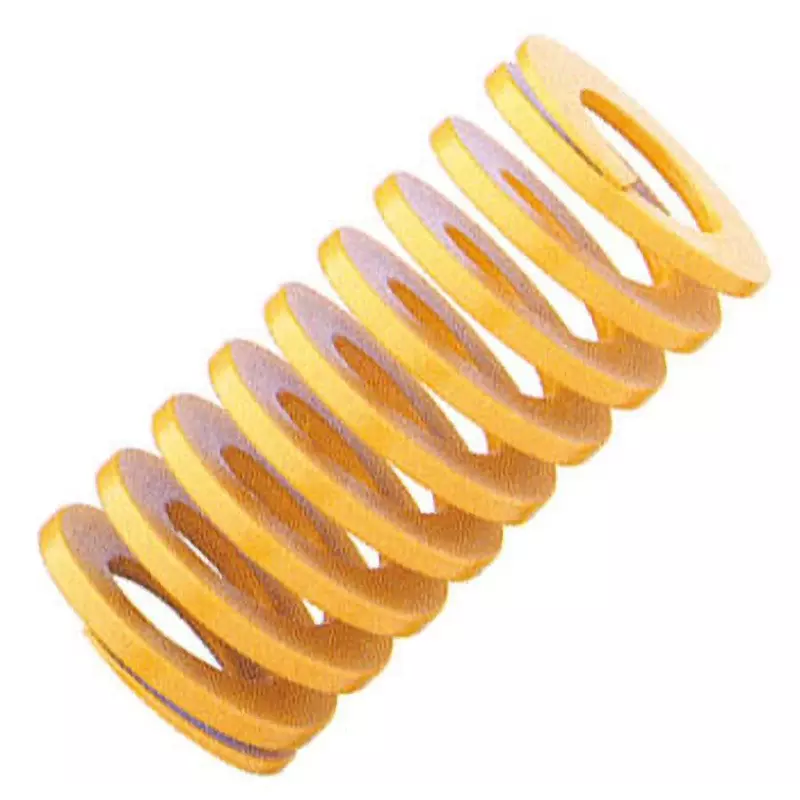

| Type of Product | Heavy Duty Die Spring |
| Model No | TF27×175 |
| Color | Yellow |
| Country of Origin | Japan |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Heavy Duty Die Spring |
Model No |
TF27×175 |
Color |
Yellow |
Country of Origin |
Japan |
Spring Type |
Strong Spring |
Name of Manufacturer/Packer/Importer |
Tokyo Spring Manufacturing Co., Ltd. |
Type |
Light and light load |
Import Country |
Direct Import from Japan |
Load (300000 times, N [kgf]) |
588[60.0] |
Spring Constant (N/mm) |
6.73 |
Deflection (300,000 times, mm) |
87.5 |
Deflection (1 million times, mm) |
70 |
Monotaro ID |
7042016 |
Outer Diameter (Φmm) |
27 |
Operating Temperature Range |
150 to -30℃ |
Load (1 million times, N [kgf]) |
471[48.0] |
Free Length (mm) |
175 |
Inner Diameter |
13.5 mm |
Load (500000 times, N [kgf]) |
530[54.0] |
Deflection (500,000 times, mm) |
78.8 |
