Ships within 25 days
View
View
View
View

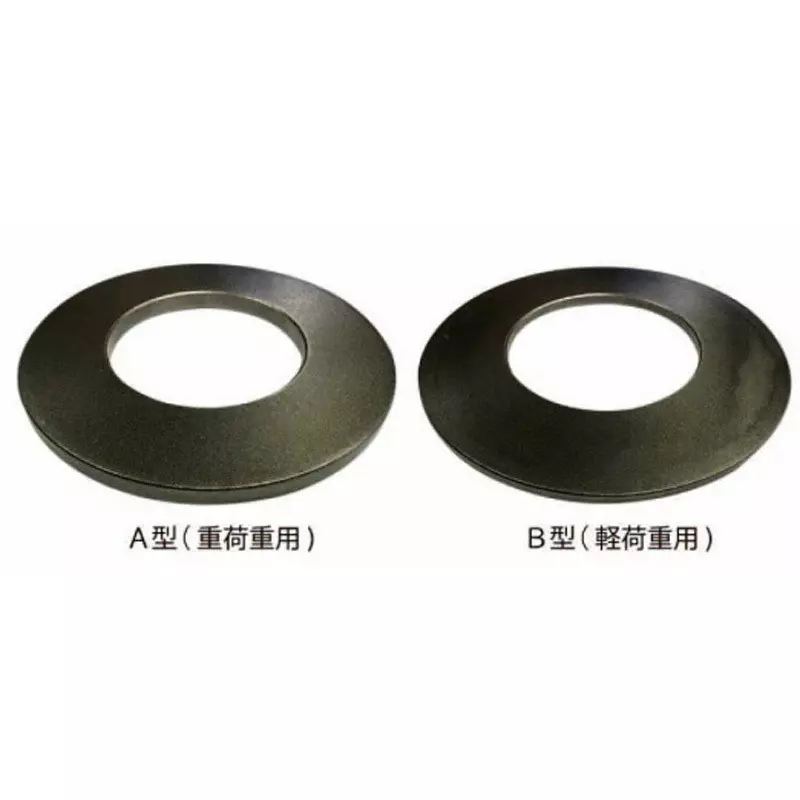

| Type of Product | Disc Spring |
| Model No | B-180 |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | Tokyo Spring Manufacturing Co., Ltd. |
Type of Product |
Disc Spring |
Model No |
B-180 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Tokyo Spring Manufacturing Co., Ltd. |
Import Country |
Direct Import from Japan |
Monotaro ID |
12362921 |
Load (N) |
(ht=H-0.75h P load)38150, (σ=0.5h P load)29050 |
Thickness Tolerance |
±0.10 mm |
Thickness t (mm) |
6 |
Overall Length H (mm) |
11.1 |
Deflection (mm) |
(Total deflection h) 5.1, (σ=0.5h σ deflection) 2.55 |
Outer Diameter D (Φmm) |
180 |
Individual Weight (g) |
890 |
Mounting Length (mm) |
(ht=H-0.75h ht installation length) 7.27 |
Inner Diameter d (Φmm) |
92 |
Looking for bulk pricing or different specifications?
