| Type of Product | Disc Spring |
| Model No | B-200 |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | Tokyo Spring Manufacturing Co., Ltd. |
Type of Product |
Disc Spring |
Model No |
B-200 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Tokyo Spring Manufacturing Co., Ltd. |
Import Country |
Direct Import from Japan |
Monotaro ID |
12363106 |
Load (N) |
(ht=H-0.75h P load)78790, (σ=0.5h P load)57760 |
Thickness Tolerance |
±0.12 mm |

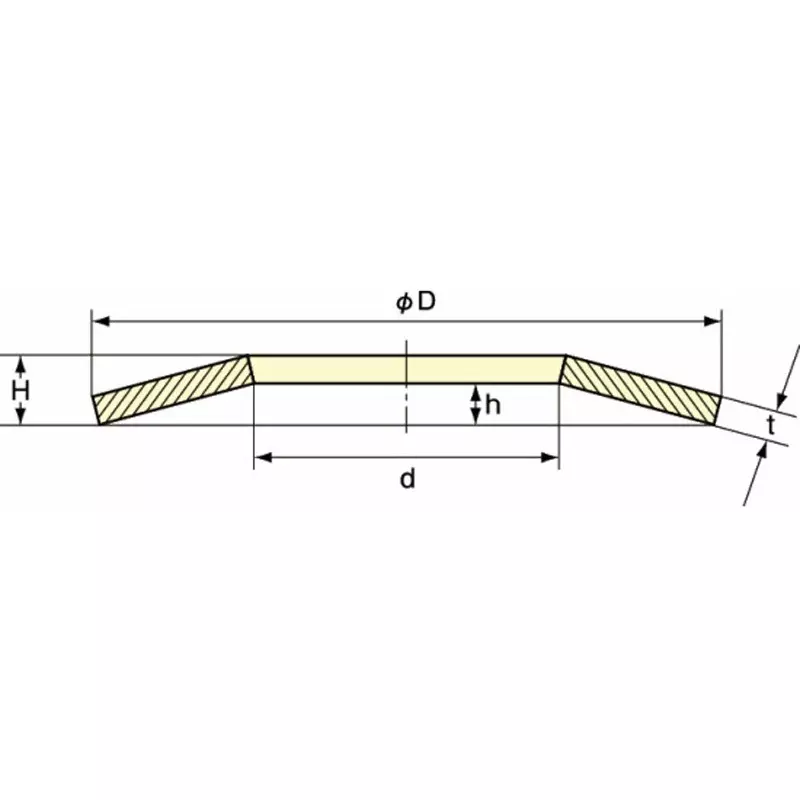

Thickness t (mm) |
8 |
Overall Length H (mm) |
13.6 |
Deflection (mm) |
(Total deflection h) 5.6, (σ=0.5h σ deflection) 2.8 |
Outer Diameter D (Φmm) |
200 |
Individual Weight (g) |
1470 |
Mounting Length (mm) |
(ht=H-0.75h ht installation length) 9.4 |
Inner Diameter d (Φmm) |
102 |
