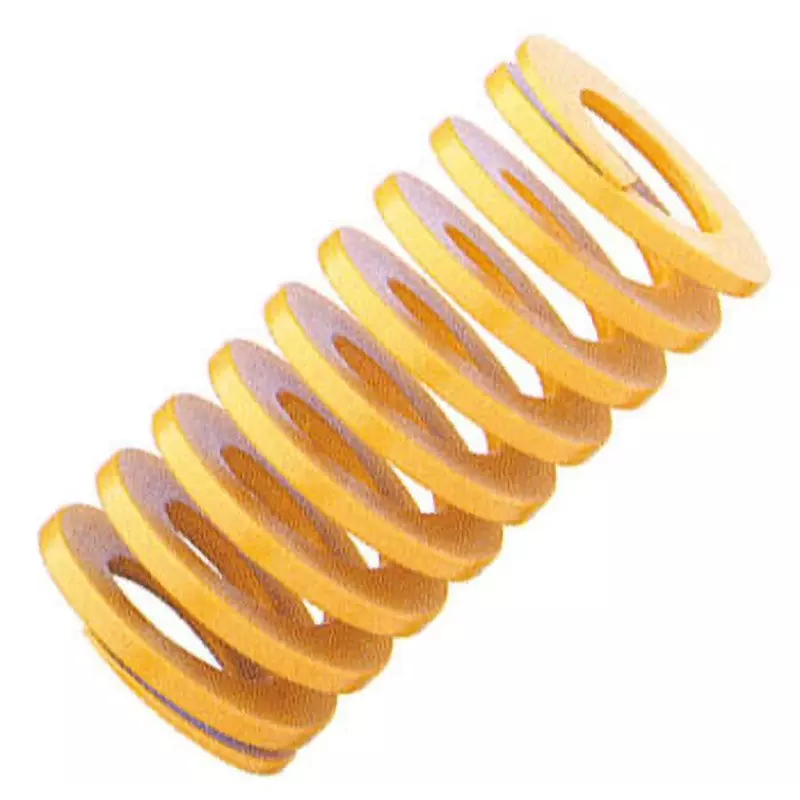

| Type of Product | Heavy Duty Die Spring |
| Model No | TF35×125 |
| Color | Yellow |
| Country of Origin | Japan |
Type of Product |
Heavy Duty Die Spring |
Model No |
TF35×125 |
Color |
Yellow |
Country of Origin |
Japan |
Spring Type |
Strong Spring |
Name of Manufacturer/Packer/Importer |
Tokyo Spring Manufacturing Co., Ltd. |
Type |
Light and light load |
Import Country |
Direct Import from Japan |
Load (300000 times, N [kgf]) |
961[98.0] |
Spring Constant (N/mm) |
15.34 |
Deflection (300,000 times, mm) |
62.5 |
Deflection (1 million times, mm) |
50 |
Monotaro ID |
7042323 |
Outer Diameter (Φmm) |
35 |
Operating Temperature Range |
150 to -30℃ |
Load (1 million times, N [kgf]) |
765[78.0] |
Free Length (mm) |
125 |
Inner Diameter |
19 mm |
Load (500000 times, N [kgf]) |
863[88.0] |
Deflection (500,000 times, mm) |
56.3 |
Trusco Part No. |
443-1707 |
