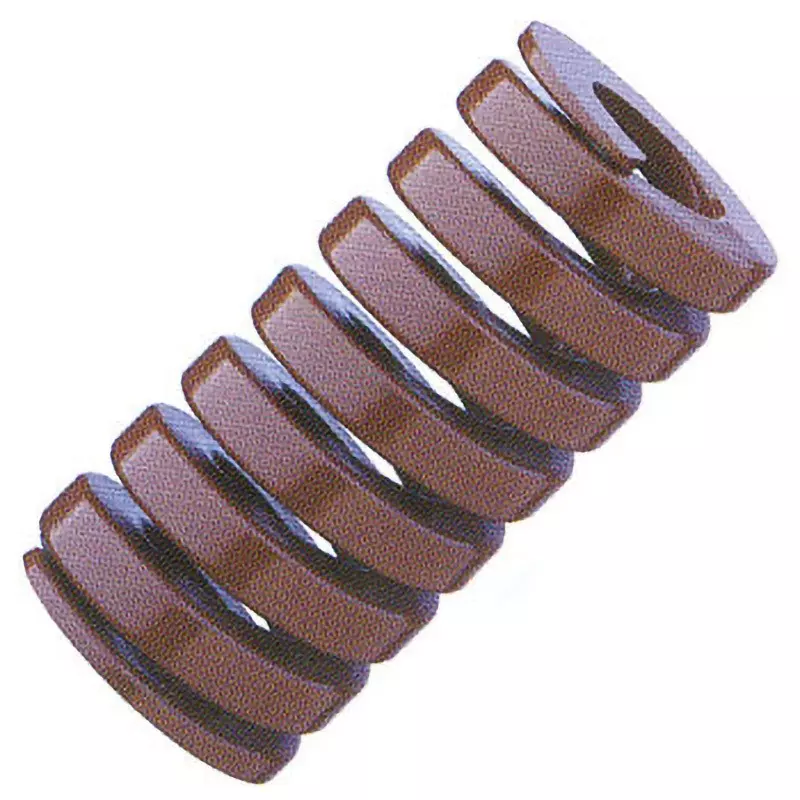

| Type of Product | Strong Spring |
| Model No | TB35×60 |
| Color | Brown |
| Material | Silicon chrome steel for spring |
Type of Product |
Strong Spring |
Model No |
TB35×60 |
Color |
Brown |
Material |
Silicon chrome steel for spring |
Country of Origin |
Japan |
Spring Type |
Strong spring |
Name of Manufacturer/Packer/Importer |
Tokyo Spring Manufacturing Co., Ltd. |
Type |
Light Load |
Import Country |
Direct Import from Japan |
Load (300000 times, N [kgf]) |
4810[490.5] |
Spring Constant (N/mm) |
400 |
Deflection (300,000 times, mm) |
12 |
Deflection (1 million times, mm) |
9.6 |
Monotaro ID |
7051965 |
Outer Diameter (Φmm) |
35 |
Operating Temperature Range |
150 to -30℃ |
Load (1 million times, N [kgf]) |
3840[391.6] |
Free Length (mm) |
60 |
Inner Diameter |
17.5 mm |
Load (500000 times, N [kgf]) |
4320[440.5] |
Deflection (500,000 times, mm) |
10.8 |
Trusco Part No. |
443-0859 |
