Ships within 25 days
View
View
View
View
| Type of Product | Disc Spring |
| Model No | B-71 |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | Tokyo Spring Manufacturing Co., Ltd. |
Type of Product |
Disc Spring |
Model No |
B-71 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Tokyo Spring Manufacturing Co., Ltd. |
Import Country |
Direct Import from Japan |
Monotaro ID |
12363000 |

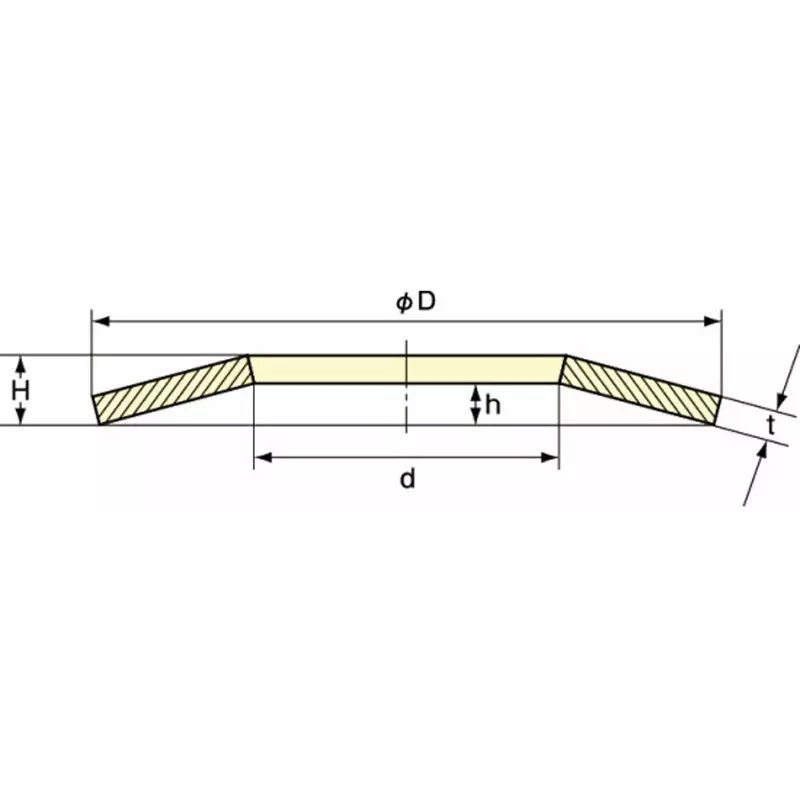

Load (N) |
(ht=H-0.75h P load)6903, (σ=0.5h P load)5188 |
Thickness Tolerance |
±0.08 mm |
Thickness t (mm) |
2.5 |
Overall Length H (mm) |
4.5 |
Deflection (mm) |
(total deflection h)2, (σ=0.5h σ deflection)1 |
Outer Diameter D (Φmm) |
71 |
Individual Weight (g) |
58 |
Mounting Length (mm) |
(ht=H-0.75h ht installation length)3 |
Inner Diameter d (Φmm) |
36 |
