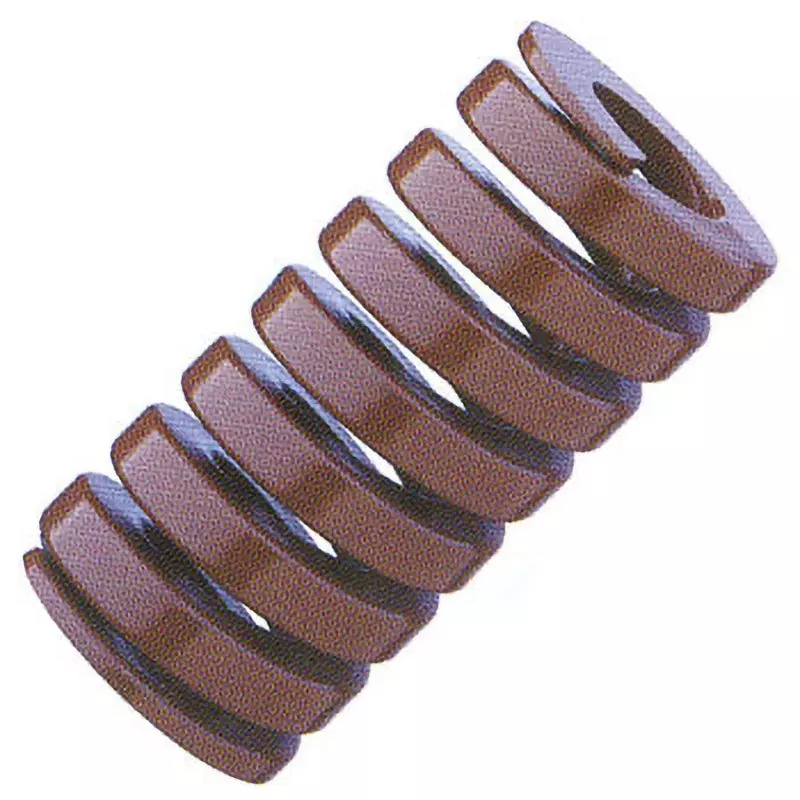

| Type of Product | Strong Spring |
| Model No | TB40×275 |
| Color | Brown |
| Material | Silicon chrome steel for spring |
Type of Product |
Strong Spring |
Model No |
TB40×275 |
Color |
Brown |
Material |
Silicon chrome steel for spring |
Country of Origin |
Japan |
Spring Type |
Strong spring |
Name of Manufacturer/Packer/Importer |
Tokyo Spring Manufacturing Co., Ltd. |
Type |
Light Load |
Import Country |
Direct Import from Japan |
Load (300000 times, N [kgf]) |
6280[640.4] |
Spring Constant (N/mm) |
114.14 |
Deflection (300,000 times, mm) |
55 |
Deflection (1 million times, mm) |
44 |
Monotaro ID |
7052245 |
Outer Diameter (Φmm) |
40 |
Operating Temperature Range |
150 to -30℃ |
Load (1 million times, N [kgf]) |
5020[511.9] |
Free Length (mm) |
275 |
Inner Diameter |
20 mm |
Load (500000 times, N [kgf]) |
5650[576.1] |
Deflection (500,000 times, mm) |
49.5 |
